The Novatek 19 Inline is a straight-bodied air needle scaler for medium-duty rust, scale and coating removal. Its piston strikes nineteen 3mm x 7" chisel tip needles 3000 times a minute, and the loose bundle conforms to pitted plate, weld beads and broken concrete so the low spots get cleaned along with the high ones.
At 5.8 lbs and 6 cfm it is easy to handle overhead or at arm's length, and the inline shape slips between stiffeners, flanges and pipe where a pistol grip would not fit. Order it as a needle scaler, as a chisel scaler with a 1/2" square holder and 3/4" chisel, or as the kit that equips one tool for both jobs.
Features
19 Needles at 3000 bpm

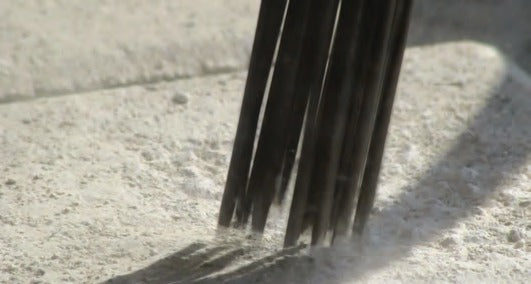

Nineteen 3mm x 7" chisel tip needles hit independently, cleaning into pits and weld ripples instead of bridging them.

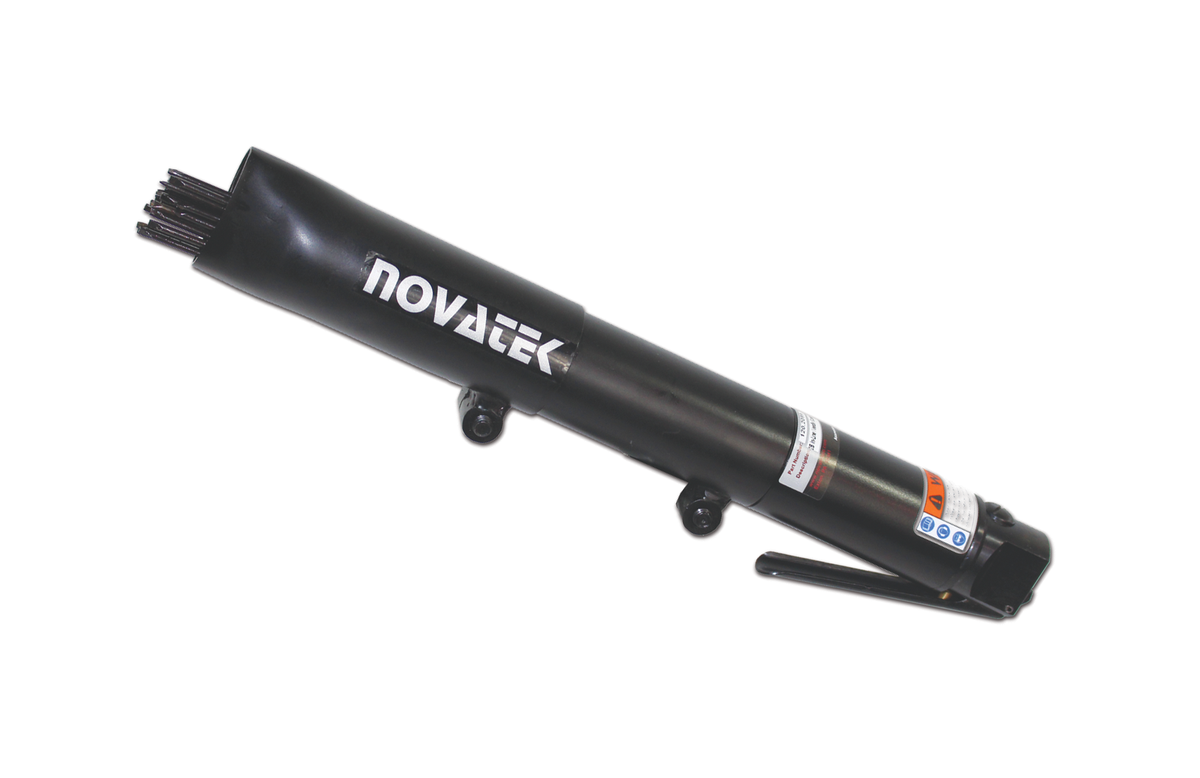

Inline Body for Tight Spots
The straight shape reaches between flanges, stiffeners and pipe runs where a pistol grip body would foul.
Oval Front Tube
The oval tube keeps the needle bundle concentrated, and it slides on the intermediate tube to keep about 1" of needle exposed as they wear.
Chisel Conversion

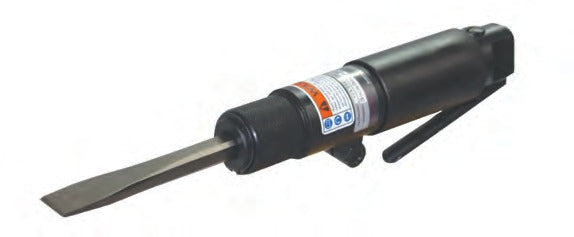

A 1/2" square chisel holder threads onto the body in place of the needle tubes; the knurled collar locks the chisel with a half turn.
6 cfm Air Demand
Runs from a portable compressor at 90 psi through a 3/8" bore airline.
2mm Needle Option
With a 2mm needle holder the tool takes 51 finer needles for a smoother finish on thin coatings.
Specifications
-
Model: 19 Inline (19NS100 needle, 19CS100 chisel, 19NS101 kit)
-
Needles: 19 x 3mm chisel tip, 7" long (needle scaler)
-
Blows Per Minute: 3000 bpm
-
Air Consumption: 6 cfm (170 lpm)
-
Operating Pressure: 90 psi
-
Air Inlet: 1/4" NPT
-
Weight: 5.8 lbs (2.6 kg) needle scaler; 4.4 lbs (2 kg) chisel scaler
-
Length: 14.8" (375mm) needle scaler; 13.5" (337mm) chisel scaler
-
Noise: 90-92 dBA needle scaler; 92-94 dBA chisel scaler
-
Chisel Holder: 1/2" square shank
-
Airline: 3/8" bore
What's Included
- Needle Scaler option: 19 Inline needle scaler with nineteen 3mm x 7" chisel tip needles fitted
- Chisel Scaler option: 19 Inline scaler with 1/2" square chisel holder and a 3/4" chisel
- Needle Scaler Kit option: the needle scaler plus a spare 3mm needle holder, a spare 2mm needle holder, a spare anvil, a spare return spring, a 1/2" square chisel holder, a 3/4" chisel, a 1 3/8" cranked chisel, a straight chisel, a 100 pack of 3mm chisel tip needles and a 250 pack of 2mm flat tip needles
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Novatek warrants this tool against defects in material and workmanship for 1 year from the date of purchase, and its electrical components for 180 days. The warranty does not apply to accessories. Novatek handles warranty service through a return authorization (RMA). Abuse, misuse, modification or repair by anyone other than Novatek or its authorized repair center is not covered.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 19 Inline sits between the compact 12 Inline and the pistol grip scalers. The 19PG puts the same 19-needle stroke in a pistol grip body, and the 28PG adds a larger bundle for heavier work. The 19 Inline and 19PG chisel holder is also sold separately.
