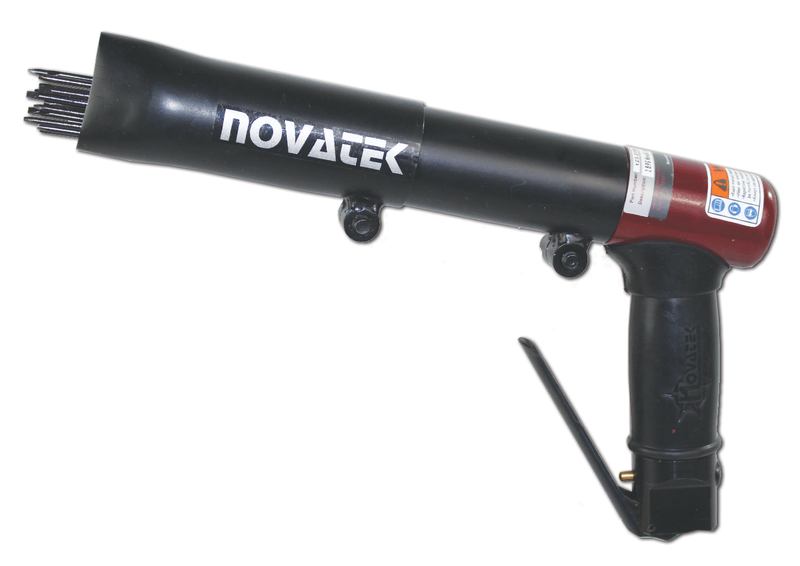

The Novatek 19PG is a pistol grip air needle scaler that pairs a 3000 blows per minute stroke with a short, balanced body. Nineteen 3mm x 7" chisel tip needles pound loose rust, mill scale and failing paint off steel and masonry, and because each needle floats independently the bundle keeps cleaning inside pits and along welds.
At 5.7 lbs and 12.4" long, with the throttle under the fingers of a proper grip, it is built for operators who scale vertical and overhead steel all shift. It runs on 6 cfm, converts to a 1/2" square chisel scaler, and is sold as the needle scaler, the chisel scaler or a kit with the parts for both.
Features

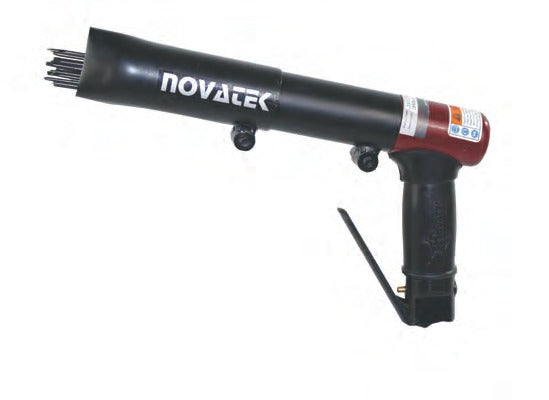

Pistol Grip and Lever Throttle
A rubber pistol grip keeps the wrist straight on walls and overheads, with the throttle lever under the fingers.
Compact 12.4" Body
The needle scaler is short and weighs 5.7 lbs, easy to steer one-handed around brackets and stiffeners.
19 Needles, 3000 bpm
Nineteen 3mm x 7" chisel tip needles in an oval front tube concentrate the stroke on the work.
Adjusts for Needle Wear
Slide the front tube back as needles shorten so about 1" stays exposed, then lock it with the cap head screw.
Chisel Scaler Conversion
Fit the 1/2" square chisel holder for weld spatter, slag and heavy scale; the chisel scaler ships with a 3/4" chisel.
Portable Compressor Friendly
Air use is 6 cfm at 90 psi through a 3/8" bore airline.
Specifications
-
Model: 19PG (19NS120 needle, 19CS120 chisel, 19NS121 kit)
-
Needles: 19 x 3mm chisel tip, 7" long (needle scaler)
-
Blows Per Minute: 3000 bpm
-
Air Consumption: 6 cfm (170 lpm)
-
Operating Pressure: 90 psi
-
Air Inlet: 1/4" NPT
-
Weight: 5.7 lbs (2.6 kg) needle scaler; 4.6 lbs (2.1 kg) chisel scaler
-
Length: 12.4" (315mm) needle scaler; 10.2" (260mm) chisel scaler
-
Noise: 92-94 dBA needle scaler; 93-94 dBA chisel scaler
-
Chisel Holder: 1/2" square shank
What's Included
- Needle Scaler option: 19PG needle scaler with nineteen 3mm x 7" chisel tip needles fitted
- Chisel Scaler option: 19PG scaler with 1/2" square chisel holder and a 3/4" chisel
- Photos show the needle scaler; the 19PG Chisel Scaler ships with its chisel holder and 3/4" chisel, no needles
- Needle Scaler Kit option: the needle scaler plus a spare 3mm needle holder, a spare 2mm needle holder, a spare anvil, a spare return spring, a 1/2" square chisel holder, a 3/4" chisel, a 1 3/8" cranked chisel, a straight chisel, a 100 pack of 3mm chisel tip needles and a 250 pack of 2mm flat tip needles
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Novatek warrants this tool against defects in material and workmanship for 1 year from the date of purchase, and its electrical components for 180 days. The warranty does not apply to accessories. Novatek handles warranty service through a return authorization (RMA). Abuse, misuse, modification or repair by anyone other than Novatek or its authorized repair center is not covered.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 19PG is the lighter of Novatek's two standard pistol grip scalers; the 28PG carries a 28-needle bundle for heavier work. For dust capture, the 19PG VSE adds a vacuum shroud. Its cover assembly and the 19 Inline and 19PG chisel holder are also available as separate parts.
