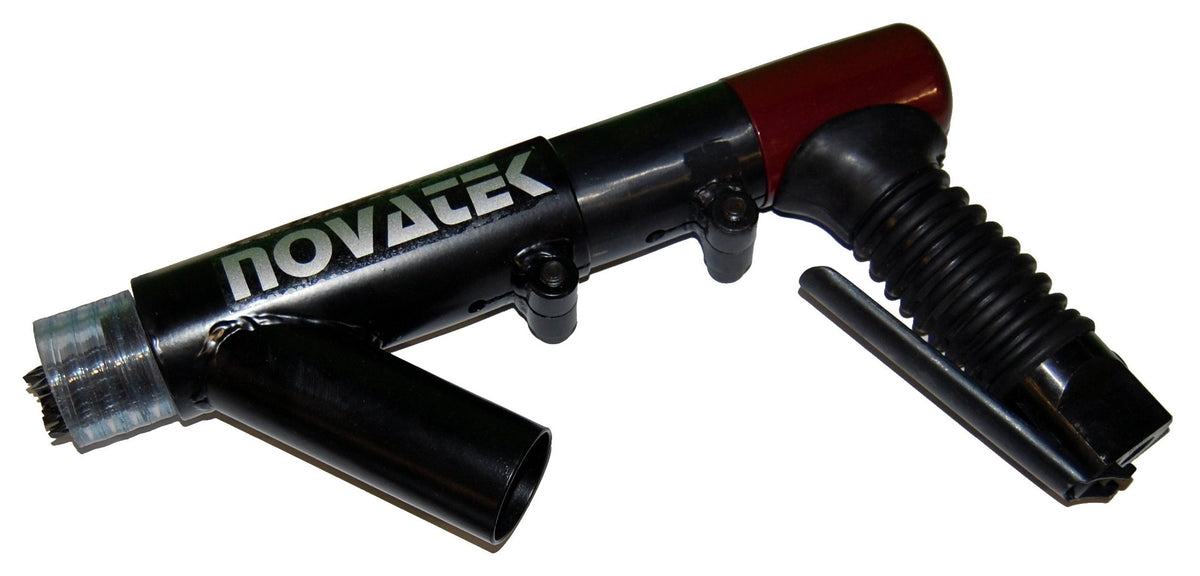

The Novatek 19PG VSE is a pistol grip needle scaler with a vacuum shroud built around its needle bundle. Nineteen 3mm chisel tip needles strike at 3000 blows per minute inside the shrouded front tube, and a fully adjustable 1.5" vacuum take-off draws the debris they dislodge toward the vacuum hose.
It weighs 5.7 lbs and uses 5.5 cfm, light enough for long abatement and remediation shifts on irregular surfaces, corners, edges, piping and rivet heads. Interchangeable flat and corner cuffs keep the shroud against irregular surfaces. Buy it as the package or as the kit with spare holders, cuffs, needles and a carry bag.
Features
Shrouded Needle Bundle
The needles run inside a shrouded front tube so debris is captured at the point of impact.
Adjustable 1.5" Vacuum Take-Off
The take-off rotates to keep the hose clear of the work and fits standard 1.5" vacuum hose.
Flat and Corner Cuffs
Interchangeable nose pieces seal on flat surfaces or work into inside corners and angles.
19 x 3mm at 3000 bpm
Chisel tip needles come standard; a 2mm holder takes finer needles.
5.7 lbs, 12.4" Long
A compact, light pistol grip body for extended run times.
Low Air Demand
Novatek rates it at 5.5 cfm at the 1/4" NPT inlet.
Specifications
-
Model: 19PG VSE (19NSVSE120 package, 19NSVSE120K kit)
-
Needles: 19 x 3mm chisel tip
-
Blows Per Minute: 3000 bpm
-
Air Consumption: 5.5 cfm (156 lpm)
-
Working Pressure: 90 psi
-
Air Inlet: 1/4" NPT
-
Vacuum Take-Off: 1.5", fully adjustable
-
Weight: 5.7 lbs (2.6 kg)
-
Length: 12.4" (315mm)
-
Noise: 89-95 dBA
What's Included
- Scaler Package option: 19PG VSE shrouded needle scaler, nose pieces (flat and corner cuffs) and a pack of 3mm chisel tip needles
- Scaler Kit option: the shrouded scaler plus a spare 2mm needle holder, a spare 3mm needle holder, a spare anvil, a spare return spring, a 100 pack of 3mm chisel tip needles, two additional flat and corner cuffs and a 250 pack of 2mm needles, packed in a carry bag (the photo shows the scaler only)
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Novatek warrants this tool against defects in material and workmanship for 1 year from the date of purchase, and its electrical components for 180 days. The warranty does not apply to accessories. Novatek handles warranty service through a return authorization (RMA). Abuse, misuse, modification or repair by anyone other than Novatek or its authorized repair center is not covered.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 19PG VSE is the lighter of Novatek's shrouded pistol grip scalers. The 28PG VSE carries a 28-needle bundle for heavier coatings, and the VSE VRS versions add vibration reduction. For unshrouded work the standard 19PG shares the same scaler body and cover assembly.
