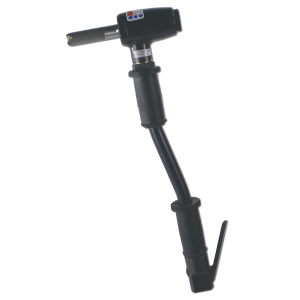

The Novatek 1SH is a heavy duty single head air scaling hammer for concrete and steel. A one-piece piston with a tungsten carbide tipped cruciform head strikes at 2500 blows per minute, fracturing high-build coatings, epoxy, non-skid, pack rust and the top layer of concrete instead of grinding at them.
It uses 6.5 cfm and comes with a short handle (9" overall, 8 lbs) for close work on walls and edges, or a long handle (18" overall, 9 lbs) for floors. Nylon brush seals clean the piston on every stroke, and the screw-top cap makes piston changes quick, including the optional bush hammer piston for texturing concrete.
Features
2500 Blows Per Minute
A single heavy piston fractures coatings and concrete on contact.
Tungsten Carbide Cruciform Head
The one-piece piston and carbide tipped head resist wear and ship as standard.
Nylon Brush Seal
Wipes the piston on every stroke to keep grit out of the cylinder and extend piston life.
Screw-Top Cap
Open the cap to change pistons or swap to a bush hammer head.
Short or Long Handle
9" short handle for control on walls and edges, 18" long handle for floors.
Concrete and Steel
Takes down concrete, removes epoxy and non-skid, and breaks pack and laminar rust on steel.
Specifications
-
Model: 1SH heavy duty single scaler (PHS1HDS short handle, PHS1HDL long handle)
-
Blows Per Minute: 2500 bpm
-
Air Consumption: 6.5 cfm (186 lpm)
-
Operating Pressure: 90 psi
-
Weight: 8 lbs short handle; 9 lbs long handle
-
Length: 9" (229mm) short handle; 18" (457mm) long handle
-
Noise: 88-97 dBA
-
Piston: Single-piece, tungsten carbide tipped cruciform (standard)
-
Airline: 3/8" bore
What's Included
- 1SH single head scaling hammer with short or long handle (as selected)
- Tungsten carbide tipped single-piece cruciform piston, fitted
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Covered by Novatek's manufacturer warranty; see the warranty terms in the linked manual.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 1SH is the compact member of Novatek's scaling hammer range; the 3SH triple head covers larger areas, and the VSE versions of both add a vacuum shroud for dust capture. For lighter rust and coating work, Novatek's needle scalers are the next step down.
