The Novatek 1SH VSE is a single head air scaling hammer with a vacuum shroud around its striking head. A one-piece tungsten carbide tipped cruciform piston hits at 2500 blows per minute to fracture concrete, epoxy, non-skid and heavy coatings, while the shroud and its brush skirt hold the debris for a vacuum to pull away.
It uses 9 cfm and comes with a short handle (9" overall, 6.5 lbs) for walls and edges or a long handle (18" overall, 7.5 lbs) for floors. Nylon brush seals keep the piston clean, and Novatek rates it dustless when equipped with a proper vacuum, so it fits renovation and remediation work where dust must stay contained.
Features

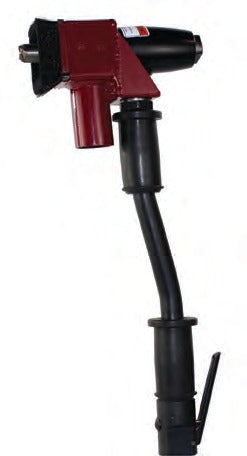

Vacuum Shroud with Brush Skirt
The shroud surrounds the head, and its vacuum port carries debris away at the source.
2500 bpm Carbide Cruciform Head
A single-piece tungsten carbide tipped piston fractures concrete and coatings.
Nylon Brush Seals
Keep the piston and cylinder clean stroke after stroke.
Bush Hammer Option
Fit a carbide bush hammer piston, sold separately, to texture concrete.

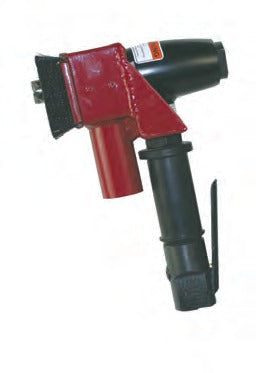

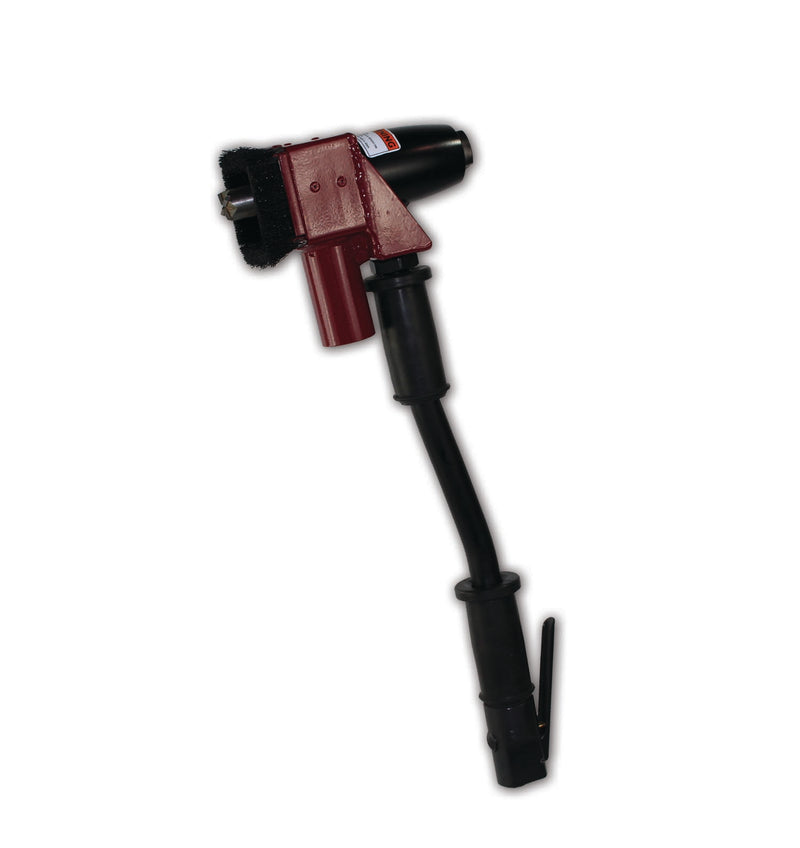

Short or Long Handle
9" short handle for control, 18" long handle for floor reach.
Specifications
-
Model: 1SH VSE shrouded heavy duty single scaler (PHS1VSEHDS short, PHS1VSEHDL long)
-
Blows Per Minute: 2500 bpm
-
Air Consumption: 9 cfm (255 lpm)
-
Operating Pressure: 90 psi
-
Weight: 6.5 lbs short handle; 7.5 lbs long handle
-
Length: 9" (229mm) short handle; 18" (457mm) long handle
-
Noise: 88-97 dBA
-
Piston: Tungsten carbide tipped cruciform (standard)
What's Included
- 1SH VSE shrouded single head scaling hammer with short or long handle (as selected)
- Vacuum shroud with brush skirt and vacuum port, fitted
- Tungsten carbide tipped cruciform piston, fitted
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Covered by Novatek's manufacturer warranty; see the warranty terms in the linked manual.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 1SH VSE is the single head shrouded hammer in Novatek's VSE range; the 3SH VSE triple head covers larger areas. The unshrouded 1SH and 3SH hammers suit open-air work, and the 19PG and 28PG VSE needle scalers handle lighter shrouded rust and coating removal.
