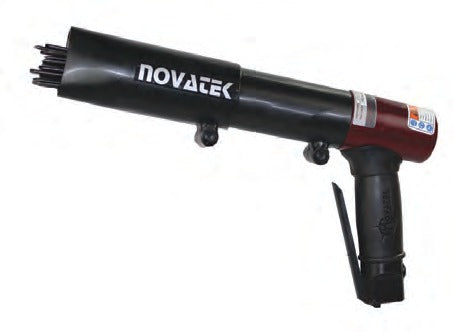

The Novatek 28PG is the heavy-duty pistol grip needle scaler in Novatek's standard line. A larger piston drives twenty-eight 3mm x 7" chisel tip needles at 2200 blows per minute, a harder stroke than the 19-needle tools, for thick paint systems, pack rust, scale and concrete buildup on steel and masonry.
It weighs 8.3 lbs as a needle scaler and draws 7.5 cfm. The same body also comes as a chisel scaler with a 1/2" square holder, or as the Super Scraper chisel scaler with a 5/8" hex holder that accepts long reach chisels and scraper heads. Two kits bundle the needle scaler with spare parts and a chisel setup.
Features
28 Needles at 2200 bpm
A wide bundle of 3mm x 7" chisel tip needles and a heavy stroke clear large areas of thick coating faster than the lighter scalers.
Three Working Setups
Run needles, a 1/2" square chisel holder or a 5/8" hex chisel holder on one body, switched with a single cap head screw.
5/8" Hex Super Scraper Option
The hex holder takes 1", 2" and 4" hex chisels and the 4", 8" and 12" long reach scraper heads for tile and mastic.
Pistol Grip Control
The rubber pistol grip and lever throttle keep heavy work manageable on vertical and overhead steel.
Needle Size Choice
Matching holders take 65 x 2mm or 19 x 4mm needles in place of the standard 3mm bundle.
Runs on 7.5 cfm
Air demand stays within reach of a portable compressor at 90 psi.
Specifications
-
Model: 28PG (28NS120 needle, 28CS120 1/2" square chisel, 28CS130 5/8" hex chisel, 28NS121 and 28NS131 kits)
-
Needles: 28 x 3mm chisel tip, 7" long (needle scaler)
-
Blows Per Minute: 2200 bpm
-
Air Consumption: 7.5 cfm (220 lpm)
-
Operating Pressure: 90 psi
-
Air Inlet: 1/4" NPT
-
Weight: 8.3 lbs (3.8 kg) needle; 5.8 lbs (2.6 kg) 1/2" square chisel; 6.1 lbs (2.8 kg) 5/8" hex chisel
-
Length: 14" (350mm) needle; 11.75" (300mm) square chisel; 14.5" (365mm) hex chisel
-
Noise: 90-93 dBA needle; 91-97 dBA square chisel; 93-98 dBA hex chisel
-
Chisel Holders: 1/2" square (28CS120, 28NS121) or 5/8" hex (28CS130, 28NS131)
What's Included
- Needle Scaler option: 28PG needle scaler with twenty-eight 3mm x 7" chisel tip needles fitted
- Chisel Scaler option: 28PG scaler with 1/2" square chisel holder and a 3/4" chisel
- Super Scraper Chisel Scaler option: 28PG scaler with 5/8" hex chisel holder and one chisel for that holder
- Photos show the needle scaler; the 28PG Chisel Scaler and Super Scraper Chisel Scaler ship with their chisel holder and chisel, no needles
- Needle Scaler Kit option: the needle scaler plus a spare 3mm needle holder, a spare 2mm needle holder, a spare anvil, a spare return spring, a 1/2" square chisel holder, a 3/4" chisel, a 1 3/8" cranked chisel, a straight chisel, a 100 pack of 3mm chisel tip needles and a 250 pack of 2mm flat tip needles
- Needle Scaler Kit with Super Scraper option: the needle scaler plus a spare 3mm needle holder, a spare 2mm needle holder, a spare anvil, a spare return spring, a 5/8" hex chisel holder, 5/8" hex chisels in 1", 2" and 4" widths, a 100 pack of 3mm chisel tip needles and a 250 pack of 2mm flat tip needles
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Novatek warrants this tool against defects in material and workmanship for 1 year from the date of purchase, and its electrical components for 180 days. The warranty does not apply to accessories. Novatek handles warranty service through a return authorization (RMA). Abuse, misuse, modification or repair by anyone other than Novatek or its authorized repair center is not covered.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 28PG is the heavier of Novatek's standard pistol grip scalers, above the 19PG. The 28PG VSE adds a vacuum shroud for dust capture. Its cover assembly, the 28PG 1/2" square chisel holder and the 5/8" hex holder it shares with the long reach scalers are also sold as parts, along with the Long Reach Scraper Complete heads its hex holder accepts.
