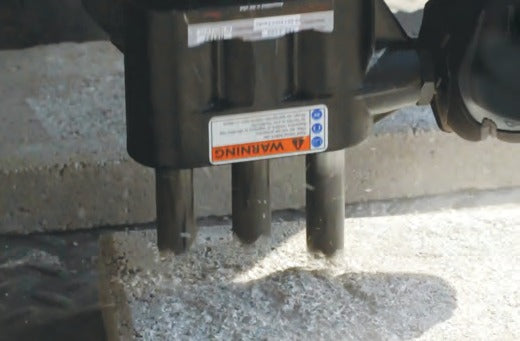

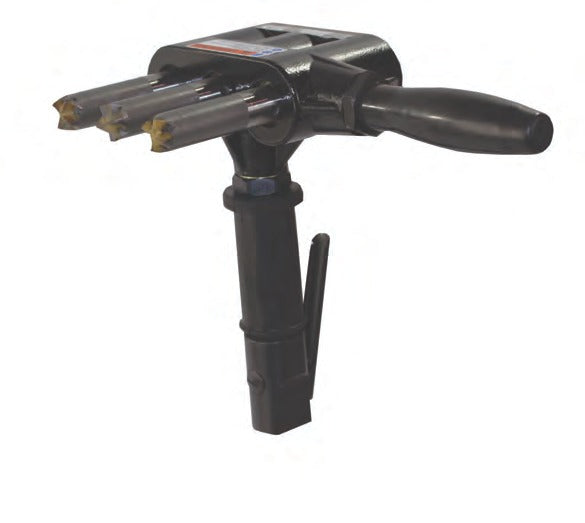

The Novatek 3SH is a heavy duty triple head air scaling hammer for taking down concrete and stripping thick coatings across larger areas. Three one-piece pistons with tungsten carbide tipped cruciform heads each strike at 2500 blows per minute, so every pass fractures a wide band of laitance, epoxy, non-skid or pack rust.
It draws 14 cfm and comes with a short handle (9" overall, 13 lbs) or a long handle (18" overall, 14 lbs), plus a removable side handle. Two live air inlets let you mount the main handle inline or at right angles to the body, and brush seals keep the three pistons clean on every stroke.
Features

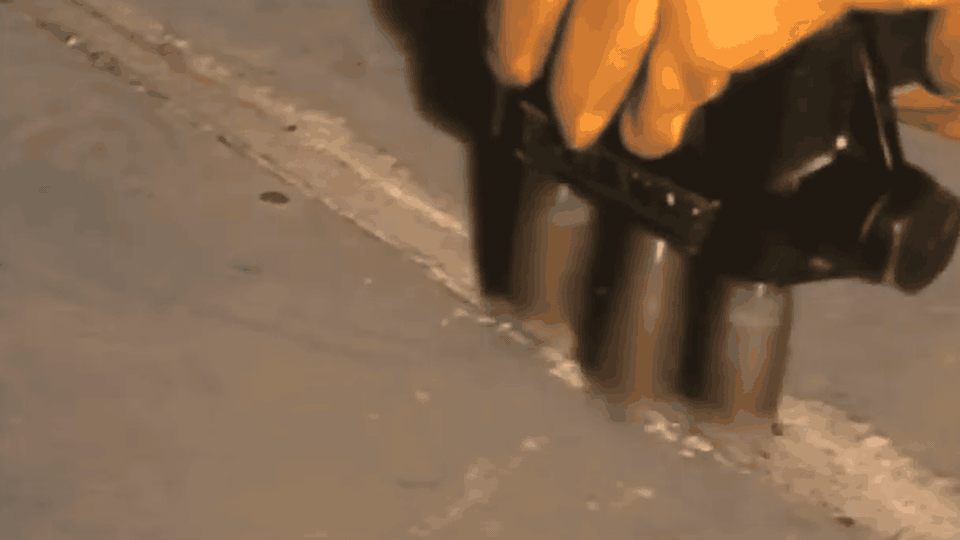

Three Pistons at 2500 bpm Each
Three carbide tipped heads cover more surface per pass than a single head hammer.
Cruciform Heads Standard
One-piece tungsten carbide tipped cruciform pistons for take-down and coating removal.

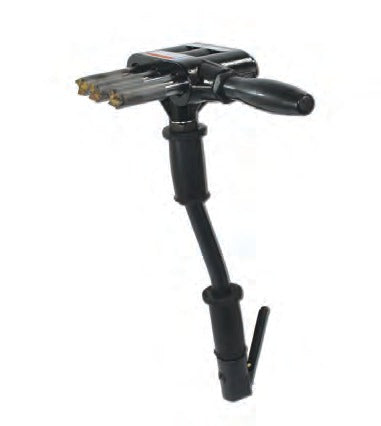

Two Live Air Inlets
Mount the handle inline for walls and corners or perpendicular for floor work.
Removable Side Handle
A second grip for two-handed control on heavy work.
Brush Seal Technology
Nylon brush seals clean each piston on every stroke to extend piston life.
Short or Long Handle
9" or 18" main handle to suit wall or floor work.
Specifications
-
Model: 3SH heavy duty triple scaler (PHS3HDS short handle, PHS3HDL long handle)
-
Blows Per Minute: 3 x 2500 bpm (7500 bpm combined)
-
Air Consumption: 14 cfm (408 lpm)
-
Operating Pressure: 90 psi
-
Weight: 13 lbs short handle; 14 lbs long handle
-
Length: 9" (229mm) short handle; 18" (457mm) long handle
-
Noise: 86-90 dBA
-
Pistons: Three single-piece, tungsten carbide tipped cruciform (standard)
-
Airline: 3/8" bore
What's Included
- 3SH triple head scaling hammer with short or long handle (as selected)
- Removable side handle
- Three tungsten carbide tipped single-piece cruciform pistons, fitted
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Covered by Novatek's manufacturer warranty; see the warranty terms in the linked manual.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 3SH is the area-coverage hammer in Novatek's scaling hammer range; the 1SH single head reaches joints and edges, and the VSE versions of both add a vacuum shroud. Lighter rust and coating work suits Novatek's needle scalers.
