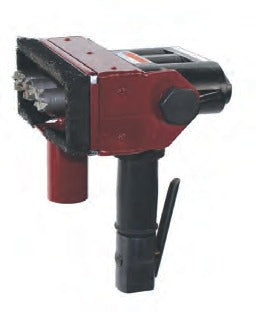

The Novatek 3SH VSE is a triple head air scaling hammer enclosed in a vacuum shroud. Three one-piece tungsten carbide tipped cruciform pistons strike at 2500 blows per minute each, 7500 combined, breaking up concrete, high-build coatings, non-skid and laminar rust, while the brush-skirted shroud and its vacuum port collect the debris.
It draws 18 cfm and weighs 13 lbs with the short handle (9" overall) or 14 lbs with the long handle (18" overall). A removable side handle and dual air inlets allow a T or inline setup, and Novatek rates it dust-free when equipped with a proper vacuum, for contained surface preparation over larger areas.
Features
7500 bpm from Three Heads
Three carbide tipped cruciform pistons at 2500 bpm each cover wide areas quickly.
Shroud with Brush Skirt
Encloses the three heads and carries debris to the vacuum through its port.
Dual Air Inlets
Set the hammer up as a T with the side handle, or inline for hard-to-reach areas.
Removable Side Handle
A second grip for two-handed control.
Brush Seals
Nylon brush seals keep pistons and cylinders clean.
Short or Long Handle
9" or 18" main handle to suit wall or floor work.
Specifications
-
Model: 3SH VSE shrouded heavy duty triple scaler (PHS3VSEHDS short, PHS3VSEHDL long)
-
Blows Per Minute: 3 x 2500 bpm (7500 bpm combined)
-
Air Consumption: 18 cfm (510 lpm)
-
Operating Pressure: 90 psi
-
Weight: 13 lbs short handle; 14 lbs long handle
-
Length: 9" (229mm) short handle; 18" (457mm) long handle
-
Noise: 86-90 dBA
-

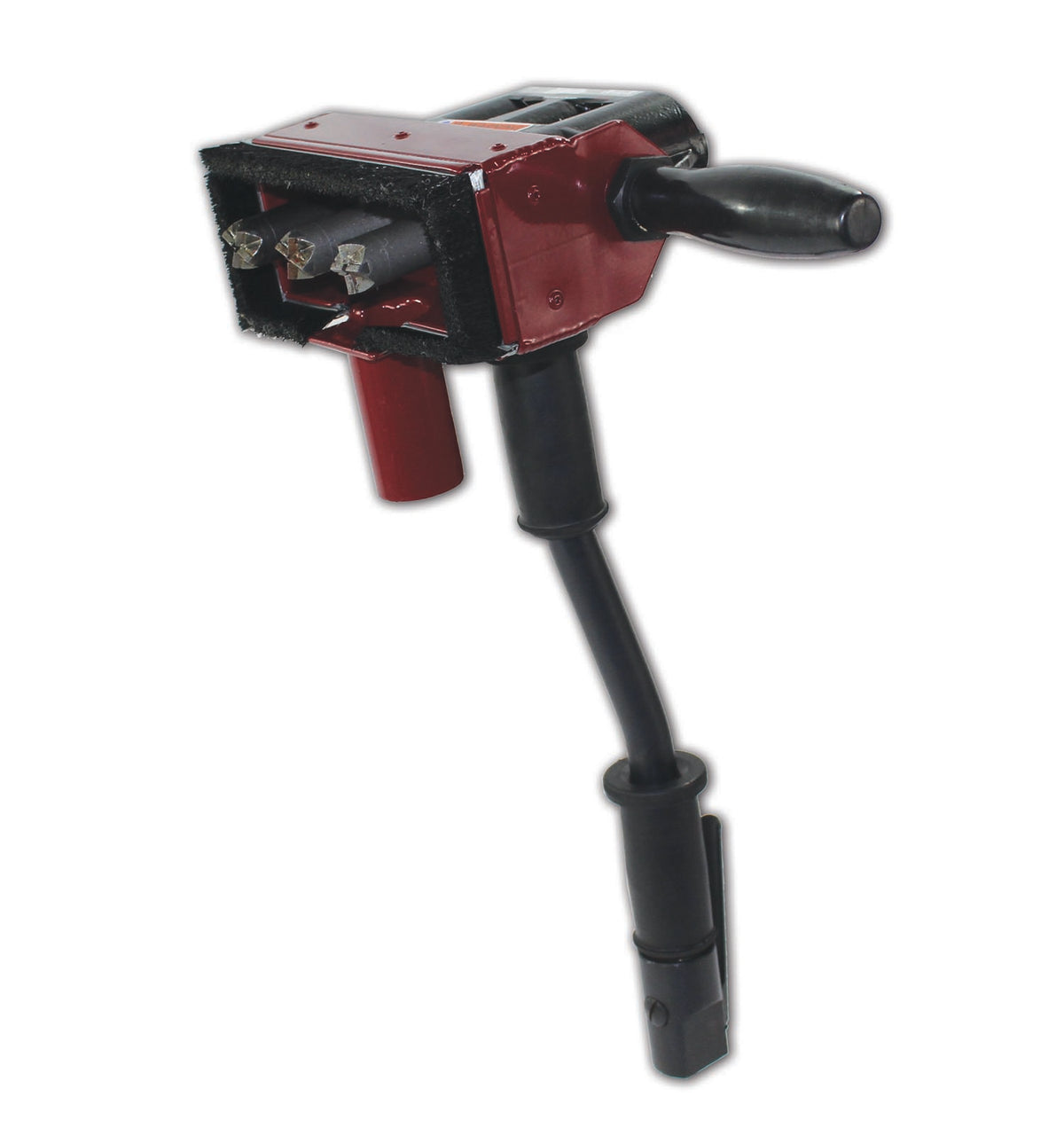

Pistons: Three tungsten carbide tipped cruciform (standard)
What's Included
- 3SH VSE shrouded triple head scaling hammer with short or long handle (as selected)
- Vacuum shroud with brush skirt and vacuum port, fitted
- Removable side handle
- Three tungsten carbide tipped cruciform pistons, fitted
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Covered by Novatek's manufacturer warranty; see the warranty terms in the linked manual.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The 3SH VSE is the triple head shrouded hammer in Novatek's VSE range, above the 1SH VSE single head. The unshrouded 1SH and 3SH hammers suit open work, and the 19PG and 28PG VSE needle scalers handle lighter shrouded rust and coating removal.
