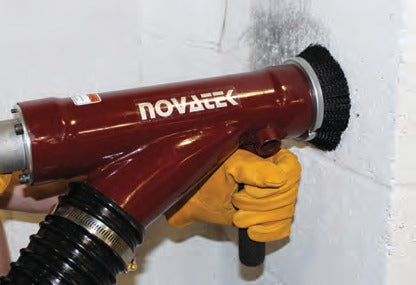

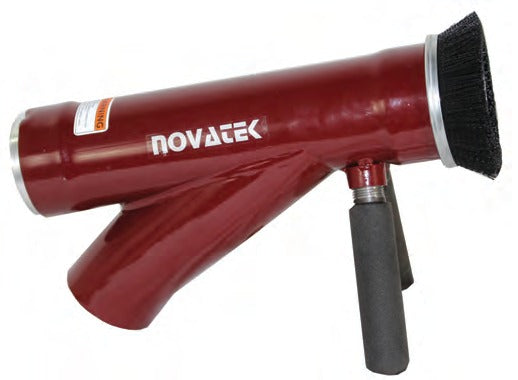

The Novatek CBS workhead turns an abrasive blast pot into a contained, vacuum-recovered blasting setup. Its all-steel body surrounds a standard blast nozzle with a brush seal, and a 3" vacuum connection draws spent media and debris away as you blast, so loose abrasive stays off the work area.
It runs off standard 3/4" blast hose, cuts a pattern up to 3" wide, and its nozzle swivels 360° so the head turns freely in the hand. Choose the workhead alone, the kit with corner brushes, sleeves and a #4 nozzle, the kit with a roller attachment, or the kit without a nozzle.
Features
All-Steel Body
A steel workhead body and steel handle stand up to abrasive and job-site handling.
Fits Existing Blast Equipment
Works off standard 3/4" blast hose and standard blast nozzles, with Novatek blast systems or most existing equipment.

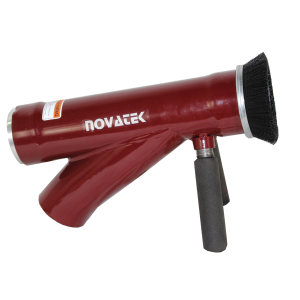

360° Swivel Nozzle
The workhead rotates around the nozzle, giving the operator more mobility and less fatigue.
Up to 3" Blast Pattern
A pattern up to 3" wide, with finishes from brush-off blast up to white metal.
Replaceable Steel Sleeves
Steel insert sleeves protect the front of the workhead and are replaced as they wear.

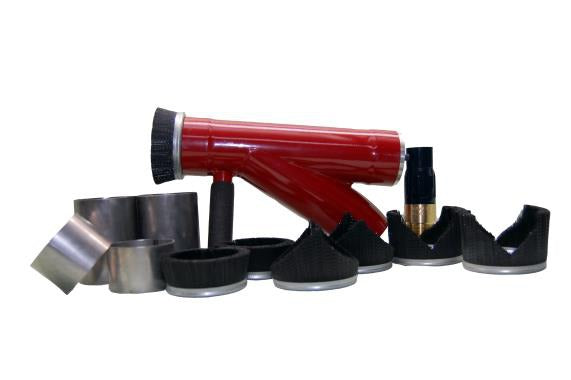

Brushes for Every Edge
Flat, inside corner and outside corner brushes keep the seal on open surfaces, internal angles and edges.
Specifications
-
Model: CBS vacuum blasting workhead
-
Blast Pattern: Up to 3" (75mm)
-
Blast Hose: Standard 3/4"
-
Nozzle Holder: 3/4"
-
Nozzle: Standard blast nozzles; #4 nozzle in the Workhead Kit and Kit with Rollers
-
Vacuum Connection: 3" vacuum hose
-
Body: All steel
-
Nozzle Swivel: 360°
-
Finish: Brush-off blast up to white metal
What's Included
- Workhead Complete: assembled steel workhead body with steel handle and grip, threaded locating ring, locking ring, 2" steel insert sleeve and 3" flat brush (no nozzle)

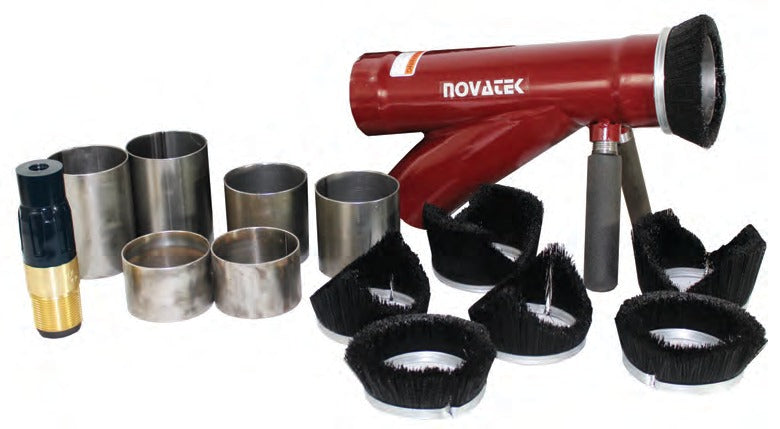

- Workhead Kit: the Workhead Complete plus 2 internal and 2 external corner brushes, two 2" and two 4" steel wear sleeves, and a #4 blast nozzle

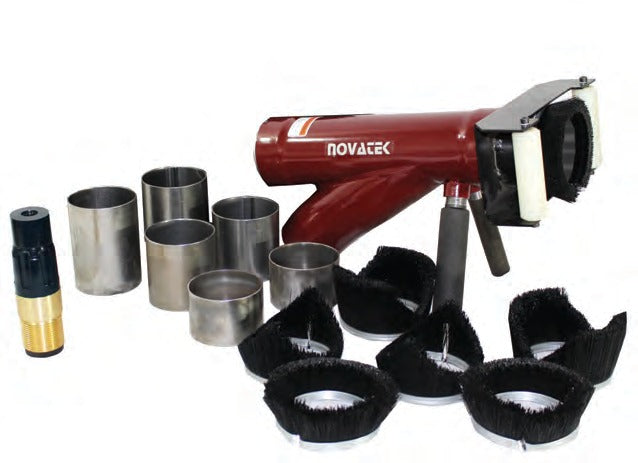

- Workhead Kit with Rollers: the Workhead Kit plus the workhead roller attachment
- Workhead Kit without Nozzle: the Workhead Kit contents without the #4 blast nozzle
- Blast whip hose and vacuum recovery hose are not included
