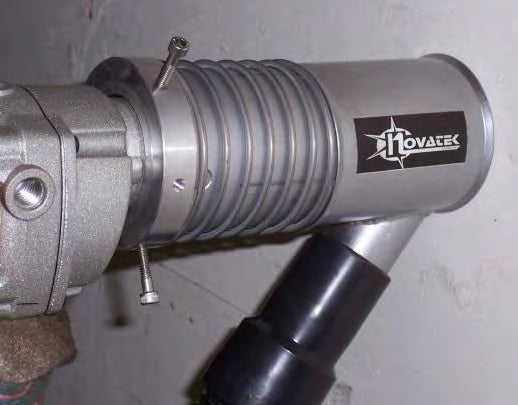

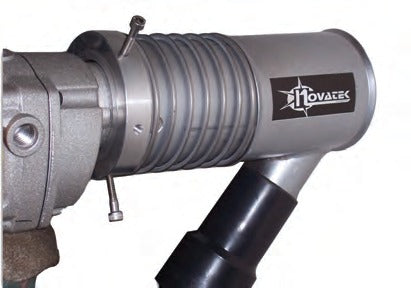

The Novatek DDS-3 is a dust shroud that converts an ordinary hand drill into a vacuum-extracted drilling setup. A spring-loaded steel tube surrounds the bit, its face sits flat on the work, and a side port connects a vacuum hose to pull dust and chips away at the hole.
It accepts bits up to 2 7/8" in diameter for holes up to 4" deep, mounts through a universal collar, and has a rubber bellows for extended-length bits. That makes it a practical choice for drilling concrete, siding or any sensitive area where dust has to be controlled.
Features
Universal Quick-Fit Collar
A three-piece collar with reducing rings clamps the shroud to most drill noses with three thumb screws.
Spring-Loaded Containment
The spring keeps the shroud face against the surface as the bit advances, so the seal holds through the hole.

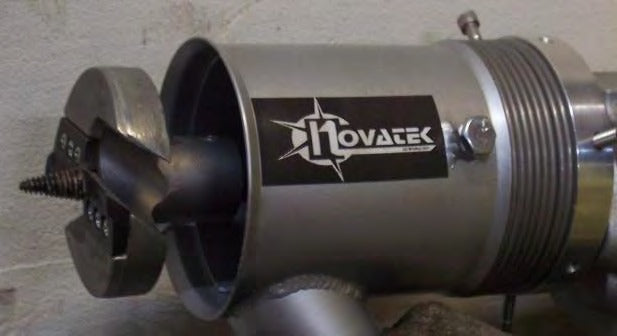

Bits up to 2 7/8"
Takes high-speed steel, wood, concrete and spade bits up to 2 7/8" in diameter, for holes up to 4" deep.
Rubber Bellows
The bellows extends the shroud to cover extended-length bits.
Heavy-Duty Steel
The steel tube stands up to job-site use and keeps a consistent cutting depth.
Specifications
-
Model: DDS-3 Dust-Free Drill Shroud
-
Bit Width: Up to 2 7/8"
-
Drill Depth: Up to 4"
-
Mounting: Universal collar with reducing collars and three thumb screws
-
Construction: Heavy-duty steel, spring-loaded
-
Vacuum Connection: Side dust port
-
Fits: Hand drills, through the universal mounting collar

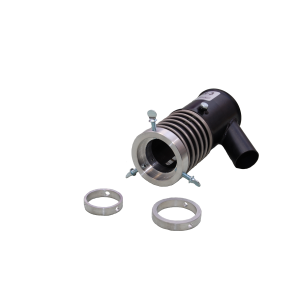

What's Included
- Novatek DDS-3 drill shroud with spring-loaded steel tube and vacuum port
- Mounting collar with two reducing collars
- Rubber bellows for extended-length bits
- Operation and maintenance manual
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Novatek equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated equipment and special-order items can't be returned.
Novatek warrants this equipment against defects in material and workmanship for 1 year, except electric drive units, electric motors and air blowers, which carry 6 months on the electric components. The warranty does not apply to accessories or parts subject to normal wear. Novatek handles warranty service through a return authorization (RMA). Abuse, misuse, modification or repair by anyone other than Novatek or its authorized repair center is not covered.
Warranty claims. Call Novatek at 1-866-563-7800 for an RMA number before you send anything, and ship it prepaid with proof of purchase. Packages without an RMA number are refused. We are happy to help, so contact us with your order number.
About Novatek
Novatek Corporation, based in Pennsylvania, designs and builds industrial surface preparation and air filtration equipment for contractors, shipyards, plants and abatement crews. Its range runs from pneumatic needle scalers, scaling hammers and long-reach scrapers to vacuum-shrouded tools, HEPA vacuums, contained blast systems, Novastrip infrared tile strippers and the Novair line of portable air scrubbers.
The DDS-3 is Novatek's universal dust shroud for hand drills, part of the same vacuum-shrouded tool line as the RotoPeen scarifier and the SRAT shrouded grinder. Pair it with Novatek's 3.3 gal backpack or 15 gal floor HEPA vacuum, both of which we carry.
