The Novatek RotoPeen is a hand-held scarifier with an integrated vacuum shroud. A hub loaded with 3M Type C flaps or carbon steel star cutters spins between two rollers, knocking coatings, rust and scale off steel or concrete while a 1.5" port carries the debris to a vacuum.
Choose a 2" model, with a 2.4" cutting path, for walls, overhead work and tight access, or a 4" model, with a 4.3" path, for decks and floors. Air versions run on a 1.2 hp motor and electric versions on a 1200 W, 120 V motor. Each comes with flaps, with star cutters, or as a kit with both hubs, except the 4" electric, which is sold with flaps only.
Features
Two Head Widths
The 2" models cut a 2.4" path and start at 9.5 lbs, light enough for vertical and overhead work. The 4" models cut a 4.3" path for faster coverage on horizontal surfaces.
Flaps or Star Cutters

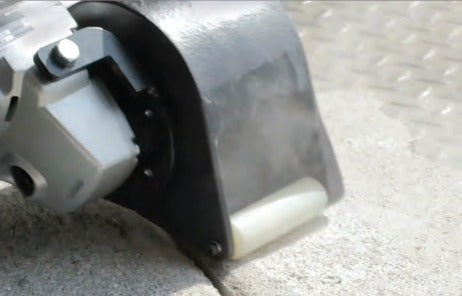

3M Type C flaps leave a profile similar to shot blasting on steel. The star cutter hub swaps in for heavy coatings, non-skid and concrete scarifying.

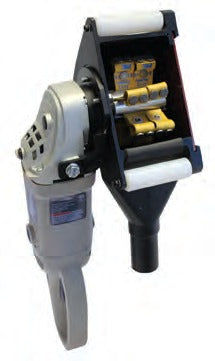

Quick-Change Hubs
Each hub threads onto the drive spindle hand-tight and is held in place by operating torque, so switching from flaps to cutters takes minutes.
Shrouded at the Source
The integrated shroud encloses the hub and a standard 1.5" port takes the vacuum hose, so debris is drawn away as it comes loose.

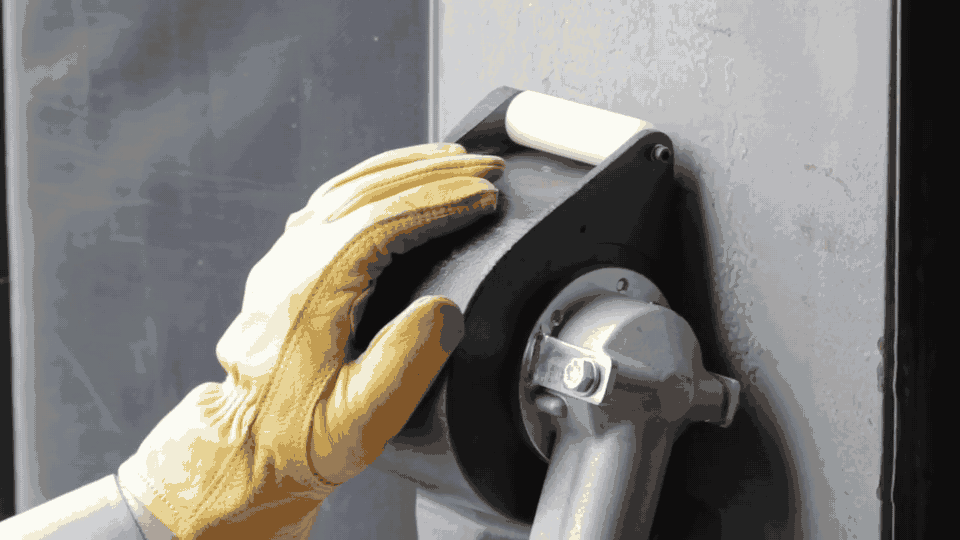

Rollers for Curved Work
Rollers ride on the surface and set the cutting depth, letting the head follow pipe and curved plate and work to within 1.5" of a wall.
Air or Electric Drive
Air models use a 1.2 hp motor drawing 30 cfm at 90 psi. Electric models use a 1200 W motor on a standard 120 V, 10 amp supply.

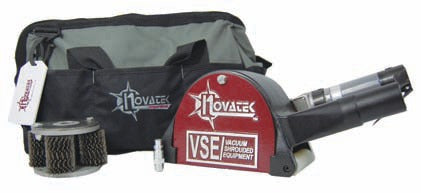

Available as a Kit
The kit pairs the tool, loaded with a flap hub, with a second hub of star cutters, a rugged tool bag, wrenches and, on air kits, gear oil.
Specifications
-
Model: RotoPeen 2" or 4", air or electric
-
Cutting Path: 2.4" (2" models); 4.3" (4" models)
-
Air Motor: 1.2 hp; 30 cfm (840 lpm) at 90 psi
-
Electric Motor: 1200 W, 120 V (10 amp supply)
-
Weight, 2" Air: 9.5 lbs with flaps; 13.1 lbs with star cutters
-
Weight, 4" Air: 11 lbs with flaps; 16.7 lbs with star cutters
-
Weight, 2" Electric: 12 lbs with flaps; 16 lbs with star cutters
-
Weight, 4" Electric: 14 lbs with flaps
-
Dimensions, Air: 14" x 6.25" x 6" (2"); 14" x 9" x 6" (4")
-
Dimensions, Electric: 20" x 8" x 9.5" (2"); 20" x 10.5" x 9.5" (4")
-
Noise: 82-85 dBA with flaps; 87-96 dBA with star cutters
-
Vacuum Port: 1.5"
-
Air Inlet: 1/4" NPT x 3/8" air nipple
What's Included
- Novatek RotoPeen with integrated vacuum shroud and rollers, in the cutting path and drive you select
- With Flaps: RotoPeen hub loaded with 3M Type C flaps
- With Star Cutters: star cutter hub loaded with carbon steel star cutters
- Kit: the tool loaded with a RotoPeen hub and Type C flaps, an additional hub loaded with carbon steel star cutters, a rugged tool bag and wrenches; air kits add gear oil
- Air models: 1/4" NPT x 3/8" air nipple
- Operation and maintenance manual
