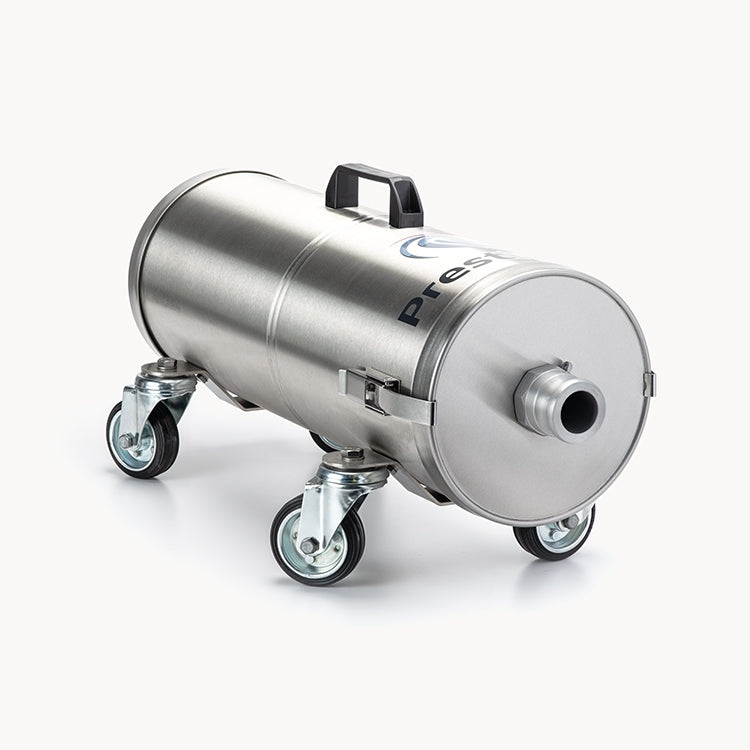

The PrestiVac AV1-1 EX HEPA is a compact air-operated vacuum in a horizontal 1-gallon stainless 304/316 body on four casters. Compressed air drives the venturi for 200" H₂O of suction and 120 CFM, with no electrical component anywhere on the unit.
It is made for spot cleanup of combustible dust around machines, benches and booths, and PrestiVac rates it for Class I, Division 1, Groups A, B, C and D and Class II, Division 1, Groups E, F and G.
Features
Compact 1-Gallon Body
A horizontal stainless body on casters that tucks under benches and beside machines.
Air-Driven Suction
200" H₂O and 120 CFM from 35 CFM of compressed air at 80-100 PSI.
H14 HEPAPlus Filtration
Rated 99.995% at 0.2 micron, tested by the MPPS method per EN 1822.
Stainless 304/316
Non-sparking, unpainted stainless steel that is static dissipating and easy to sterilize.
Conductive Tool Kit
Ships with a double bend wand, crevice tool and a round brush and floor tool with conductive bristles.
Specifications
-
Model: AV1-1 EX HEPA
-
Power Source: Compressed air, no electrical components
-
Water Lift: 200" H₂O
-
Airflow: 120 CFM
-
Hazardous-Location Rating (manufacturer): Class I, Division 1, Groups A, B, C and D, T6; Class II, Division 1, Groups E, F and G (PrestiVac's own rating; no NRTL, ATEX or IECEx approval is claimed)
-
HEPA Filtration: HEPAPlus, 99.995% at 0.2 micron
-
Filters: Washable, conductive, ESD-safe
-
Collection: Dry only
-
Construction: Stainless steel, no painted components, static dissipating
-
Air Requirement: 35 CFM at 80-100 PSI, ½" air line
-
Collection Capacity: 1 gal
-
HEPA Testing: IEST RP-CC034.3, H14, MIL-STD 282, MPPS method EN 1822
-
Material: Stainless steel 304/316
-
Noise: 72 dB
-
Mobility: 4-wheel cart
-
Air Line Hose: 0.5" x 25', static dissipating
-
Suction Hose: 10', static dissipating
-
Warranty: 3 years
What's Included
- PrestiVac AV1-1 EX HEPA vacuum

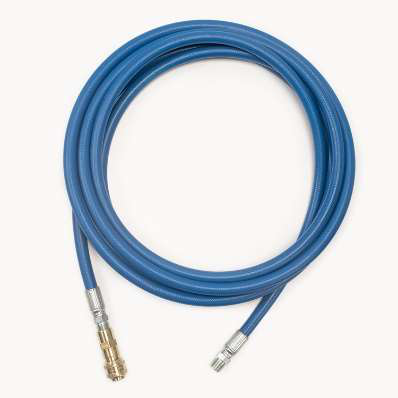

- Static-dissipating air line hose, 0.5" x 25'
- Static-dissipating suction hose, 10'
- Double bend wand assembly
- Crevice tool
- Round brush with conductive bristles
- Floor tool with conductive bristles
Setup & Placement
Connect the static-dissipating air line to a clean, dry compressed-air supply that can hold the rated pressure at the unit while it runs. A long or undersized supply line drops pressure and suction with it.
Keep the static-dissipating suction hose and tools on the unit so the ground path stays continuous, and empty the tank before it is full so the filters keep breathing.
Shipping, Returns & Warranty
Shipping is charged at checkout. Each unit ships from the PrestiVac factory in about 5 business days.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused PrestiVac vacuums in their original packaging can be returned within 21 days of delivery with a return authorization from us. Each return is confirmed with the factory, so contact us before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated units and special-order or custom-configured items can't be returned.
PrestiVac covers this vacuum with its 3-year manufacturer warranty.
Warranty claims. Contact us with your order number and the vacuum's serial number, and we will open the claim with PrestiVac.
About PrestiVac
PrestiVac Inc. designs and builds industrial vacuums for hazardous locations and contamination-controlled work, with design and manufacturing done at its own plant in Dover, Delaware. Every unit is stainless steel with no painted components, and the whole machine is grounded and static dissipating so a spark or static charge has nowhere to start.
The AV1-1 EX HEPA is the smallest wheeled unit in the AV1 range. The AV1-1 EX HEPA TT is the same 1-gallon body without casters, with a 1.25" tool kit. For larger jobs the AV1-10, AV1-15 and AV1-55 EX HEPA drums step up to 7, 10 and 45 gallons.
