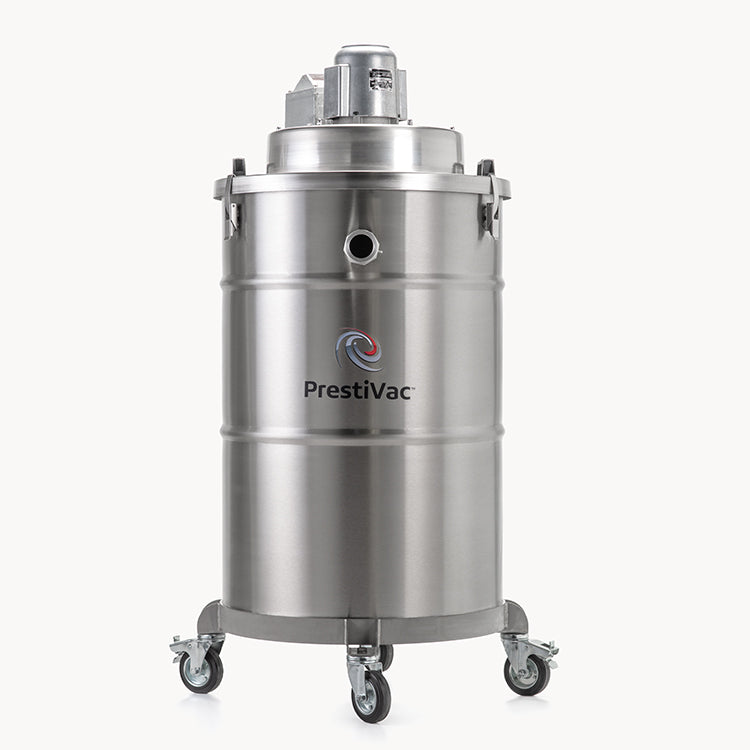

The PrestiVac EX1-55 HEPA mounts the EX1 explosion-proof motor head on a 45-gallon stainless drum with a caster dolly, for bulk recovery of combustible dust after spills, line changeovers and shutdown cleaning. It is CSA certified to UL 1203 for Class I, Division 1, Group D and Class II, Division 1, Groups E, F and G.
Where a smaller EX1 drum would need frequent emptying, the 45-gallon tank keeps collecting. It still runs from a single-phase 120V outlet.
Features
45-Gallon Recovery Drum
Holds 45 gal of dry dust for spill recovery and large-area cleanup between emptyings.
Certified for Hazardous Dust and Gas
CSA certified to UL 1203, temperature code T3C, for Class I Group D and Class II Groups E, F and G.
H14 HEPA Exhaust
Rated 99.995% at 0.3 µm per EN 1822, with over 21ft² of filter media.
Single-Phase 120V Motor
Explosion-proof motor rated 10A and 1000W, cord-connected and grounded.
Stainless and Static Dissipating
Non-sparking stainless steel with no painted components, ESD safe through the hose and tools.
Specifications
-
Model: EX1-55 HEPA
-
Power: 120V, 60Hz, 10A, 1000W, cord-connected and grounded
-
Water Lift: 135" H₂O
-
Air Watts: 560 AW
-
Hazardous Locations: Class I, Division 1, Group D; Class II, Division 1, Groups E, F and G
-
Certification: CSA certified to UL 1203 (certificate 70122393), temperature code T3C
-
Use Limitation: Commercial, indoor use only
-
HEPA Filtration: 99.995% at 0.3 µm, H14 by the MPPS method per EN 1822
-
Filters: Washable, conductive, ESD-safe
-
Collection: Dry only
-
Construction: Stainless steel, no painted components, static dissipating
-
Collection Capacity: 45 gal
-
Filter Media Area: 21ft²
-
Suction Hose: 1.5" x 10', static dissipating
-
Warranty: 3 years
What's Included
- PrestiVac EX1-55 HEPA vacuum
- Static-dissipating suction hose, 1.5" x 10'
- Double bend wand
- Floor tool
- Crevice tool
- Round brush
- Explosion-proof plug, 15 A (not supplied for Group E)
Setup & Placement
Plug the unit only into a grounded 120V, 60Hz outlet. The supplied 15 A explosion-proof plug covers Class I and Class II Group F and G locations and is not supplied for Group E. The CSA certificate requires the attachment plug to be certified and rated for the location, so confirm it matches your area classification before use.
Keep the vacuum grounded and bonded in line with the National Electrical Code, Article 250, and use only static-dissipating hose and filters. The unit is for commercial, indoor use.
Shipping, Returns & Warranty
Shipping is charged at checkout. Each unit ships from the PrestiVac factory in about 5 business days.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused PrestiVac vacuums in their original packaging can be returned within 21 days of delivery with a return authorization from us. Each return is confirmed with the factory, so contact us before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated units and special-order or custom-configured items can't be returned.
PrestiVac covers this vacuum with its 3-year manufacturer warranty.
Warranty claims. Contact us with your order number and the vacuum's serial number, and we will open the claim with PrestiVac.
About PrestiVac
PrestiVac Inc. designs and builds industrial vacuums for hazardous locations and contamination-controlled work, with design and manufacturing done at its own plant in Dover, Delaware. Every unit is stainless steel with no painted components, and the whole machine is grounded and static dissipating so a spark or static charge has nowhere to start.
The EX1 HEPA drum models are the electric core of the range: the EX1-10 HEPA with a 7-gallon tank, the EX1-15 HEPA with 12 gallons and the EX1-55 HEPA with 45 gallons. For easier emptying, the EX1-10 RCT HEPA and EX1-20 RCT HEPA put the same motor on a cart with a removable collection tank.
