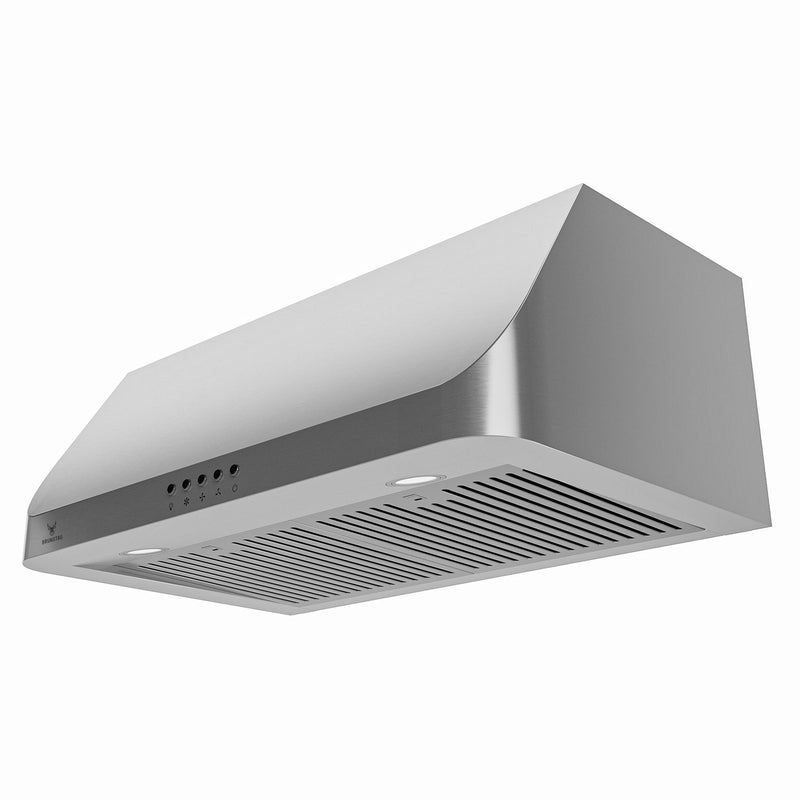

The ANZZI RH-AZ2576PSS is a BRUNSTAG 30" 450 CFM 3-speed stainless steel under cabinet range hood, made to pull smoke, steam, grease and cooking odors away from the cooktop.
450 CFM Where the Smoke Starts
The blower moves up to 450 CFM through 2 removable stainless steel baffle filters, which catch grease and lift out for washing. The hood has 3 fan speeds. At 55 dBA, the hood runs with low noise that won't distract you while you cook.
2-light LED lamps light the cooktop while you cook. The electronic switch control panel sets the fan and the lights, with a separate button for each speed.
Ducted or Ductless, Your Choice
It is convertible: duct it through the top or the rear to the outside, or run it ductless by adding the optional carbon recirculation filters, sold separately, when there is no way to run a duct. Use 6" metal ductwork, no more than 3 elbows and a total run no longer than 40', with a wall or roof cap that has a built-in damper to stop backdrafts, because the duct route has a strong effect on airflow, noise and energy use.
The body is premium stainless steel, durable and simple to wipe clean, with an ultra modern look. The motor draws 230 W and plugs into a grounded 120V, 60 Hz GFCI outlet through its factory cord, which is about 3.28 ft long. The hood is CETL and CEC certified for safety, performance and efficiency.
Sizing and Fit
The RH-AZ2576PSS measures 30" wide, 18.5" deep and 11" high. It mounts under a standard wall cabinet, and top venting needs a 13" x 7" opening in the cabinet board above.
Safety and Grease-Fire Rules
To reduce the risk of a grease fire, turn the hood on when cooking at high heat, never leave surface units unattended at high settings, and clean the fan and filters often so grease does not accumulate.
For a home kitchen, the ANZZI RH-AZ2576PSS BRUNSTAG 30" under cabinet range hood brings 450 CFM, 3 speeds and LED task lighting in stainless steel.
Features
450 CFM Airflow
Up to 450 CFM draws smoke, fumes, grease and odors away from the cooktop.
Quiet 55 dBA Operation
The hood runs at 55 dBA, low-noise operation that won't distract you while you cook.
3 Fan Speeds
The fan runs at 3 speeds, and the speed is selected from the hood's controls.
Removable Stainless Steel Baffle Filters
2 washable stainless steel baffle filters catch cooking grease and lift out for washing in warm dishwashing detergent.
2-Light LED Lamp
LED lights brighten the cooktop while you work, switched from the hood's electronic control panel.
Ductless Option
Vent through the top or rear, or add the optional carbon filters (sold separately) to run the hood ductless where no duct can go.
Premium Stainless Steel
The premium stainless steel body is durable and cleans with a soft cloth and mild soap along the polish lines.
230 W, 120V GFCI Outlet
The hood draws 230 W and plugs into a grounded 120V GFCI outlet; BRUNSTAG says a qualified electrician should add an outlet if the cord is too short.
CETL and CEC Certified
The hood is CETL and CEC certified to strict safety, performance and efficiency standards.
Specifications
-
Model: RH-AZ2576PSS
-
Dimensions: 30" W x 18.5" D x 11" H
-
Material: Stainless steel
-
Finish: Stainless steel
-
Mounting: Under Cabinet
-
Airflow: 450 CFM
-
Noise Level: 55 dBA
-
Fan Speeds: 3
-
Lighting: 2-light LED
-
Power: 230 W, 120V, 60 Hz, cord and grounding plug for a GFCI outlet (cord about 3.28 ft)
-
Filters: 2 removable stainless steel baffle filters
-
Venting: Top or rear ducted, or ductless with optional carbon filters
-
Duct Size: 6"
-
Controls: Electronic switch control panel
-
Mounting Height: 25.5" to 36" above the cooking surface
-
Certifications: CETL and CEC
-
Warranty: Limited 1 year
What's Included
- RH-AZ2576PSS range hood with fan
- LED lights
- 2 stainless steel baffle filters
- Installation kit (mounting hardware, metal adapter and damper flaps)
Sold separately: Carbon recirculation filters for ductless use, 6" metal ductwork and wall or roof cap
Installation & Care
Installation
Mount the hood so its bottom sits 25.5" to 36" above the cooking surface, and plug it into a grounded GFCI outlet near the hood; do not use an extension cord. BRUNSTAG's manual says installation work and electrical wiring must be done by qualified persons, and to consult a qualified electrician if you are unsure the outlet is grounded. Duct with 6" metal ductwork to the outdoors, never into a wall or ceiling cavity, with no more than 3 elbows and 40' of run, and seal every joint. Cut a 13" x 7" opening in the cabinet board above the hood for top venting, and secure the hood to the wall with the screws provided. For a ductless install the recirculation filters lock onto the sides of the blower. A second person helps with lifting.
Care
Before servicing or cleaning, switch the power off at the service panel and lock it or tag the panel so it cannot be switched on accidentally. Wash the stainless steel baffle filters often in a warm dishwashing detergent solution so grease never builds up on the filters or fan. Clean the stainless steel with a soft cloth and warm water with mild soap or dish detergent, always in the direction of the polish lines, rinse 2 or 3 times with clear water and wipe completely dry; a household stainless steel cleaner is fine. Never use scrapers or harsh abrasive cleansers, and do not let dirt or plaster dust sit on the finish. The motor is permanently lubricated and never needs oiling.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI covers this range hood with a 1 year manufacturer warranty against defects in materials and workmanship, as stated on the ANZZI product page. Contact us for the full terms and how to file a claim.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The BRUNSTAG 450 CFM under cabinet hood comes in 30" (RH-AZ2576PSS) and 36" (RH-AZ2590PSS).
