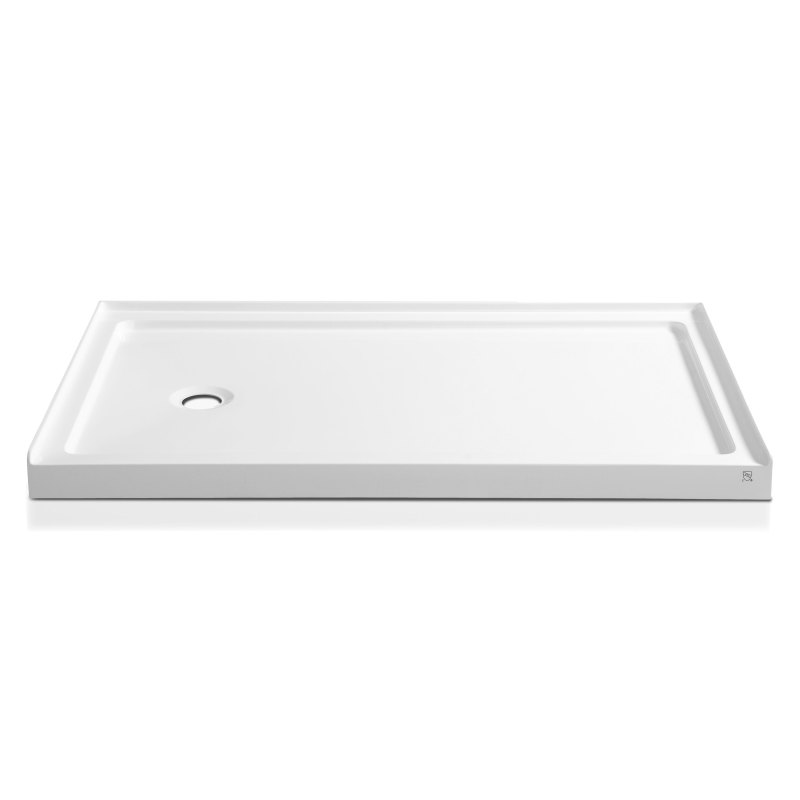

The ANZZI SB-AZ007WL is the 60" x 36" Colossi Series single threshold acrylic shower base with a left drain. Molded in a crisp rectangular style, it is engineered to pair with ANZZI's shower wall surrounds for a complete alcove shower.
Colossi is ANZZI's 60" x 36" single threshold base for a three-wall alcove. It is crafted from durable high-end acrylic, Rhino Alloy certified marine grade, in a bright, vibrant white finish, and molded in a clean rectangular style that suits today's bathroom decor. The standing surface is textured for secure, slip-resistant footing, and the surface is scratch resistant and easy to clean.
A simple three sided flange makes the alcove installation straightforward: the flange tucks behind the wall finish on the back and both side walls, so water that hits the walls runs back into the base. The single threshold keeps the step in low and the floor plan simple.
Colossi is engineered to pair with ANZZI's shower wall collection, model numbers SW-AZ009WH and SW-AZ010WH, so the base and the surround can come from the same maker and fit together on site. ANZZI states the base is cUPC certified, and the acrylic is easy to handle during installation.

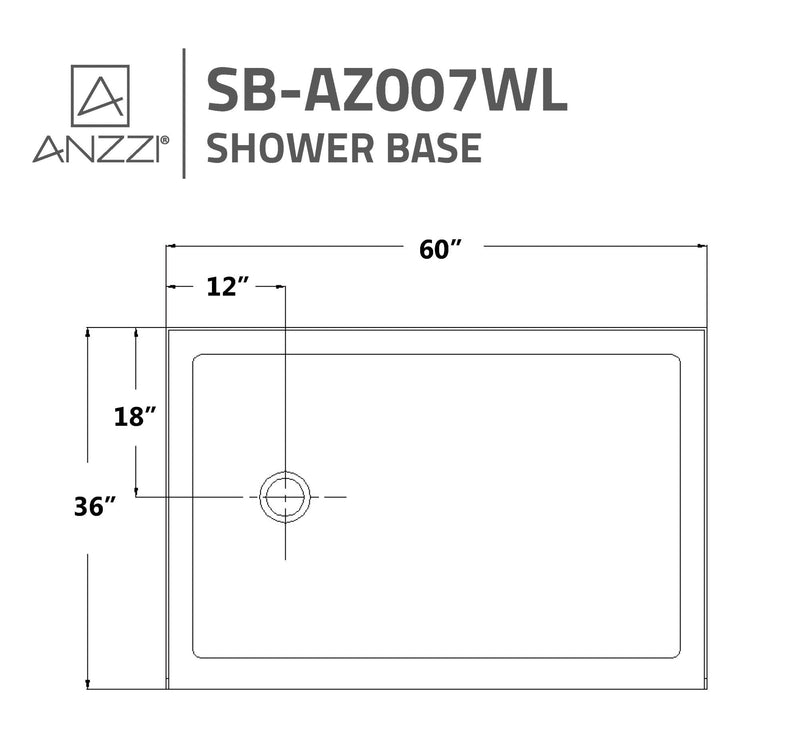

Overall the base measures 60" x 36". The drain sits toward the left end, so the drain line under the floor must match that position. It is an alcove base: measure the framed opening stud to stud on all three walls before ordering, so the base sits snugly and the flange tucks behind the wall finish.
Choosing between the two models comes down to the plumbing you already have: SB-AZ007WL puts the drain at the left end and SB-AZ007WR at the right, so in a tub-to-shower conversion you can keep the drain line where the old tub drained instead of opening the floor to move it. Both share the same 60" x 36" footprint and three-sided flange. If you are pairing it with an ANZZI surround, Lex-Class (SW-AZ009WH) adds six molded shelves and Forum (SW-AZ010WH) five, both sized for the same 60" x 36" alcove.
Plan the rest of the shower around the base: you will need a drain assembly, sold separately, mortar and sealant for the install, and a sliding or hinged glass door, or an ANZZI wall surround to finish the space. Day to day the floor needs little more than a rinse and a wipe with a soft cloth after showering, and a wash with mild soap now and then keeps the surface bright; skip abrasive pads and scrapers, which dull the finish.
Colossi suits a full shower makeover where you want the base and the wall surround to match, a DIY-minded remodel with an acrylic surround, or a tub-to-shower conversion in a 60" alcove.
Features
Marine Grade Acrylic
Rhino Alloy certified marine grade acrylic in bright white is easy to handle, scratch resistant and easy to clean.
Textured Slip-Resistant Floor
The textured standing surface gives sure, confident footing on a wet, soapy floor, for children and adults alike.
Three-Sided Flange
A simple three sided flange makes the alcove installation straightforward and sheds wall water back into the base.
Pairs With ANZZI Wall Surrounds
Colossi is engineered to pair with ANZZI shower wall models SW-AZ009WH and SW-AZ010WH for a matched alcove.
cUPC Certified
ANZZI lists the base as cUPC certified, the plumbing code listing most US and Canadian inspectors look for.
Left Drain

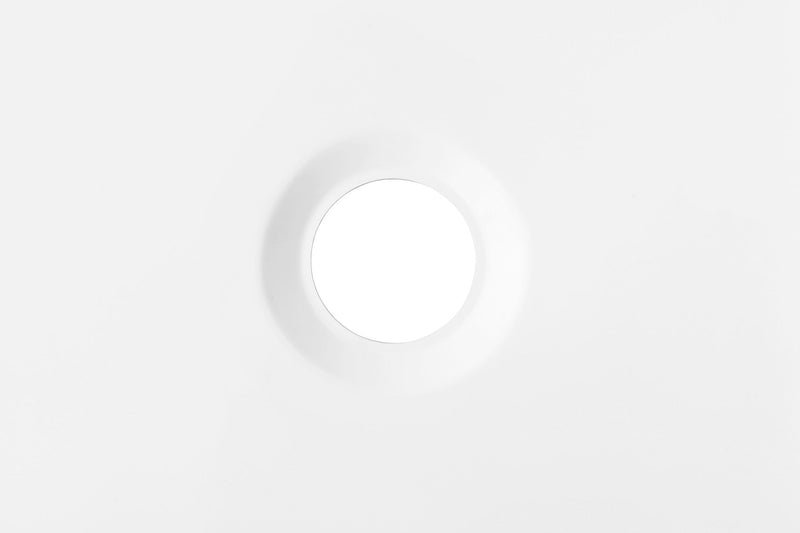

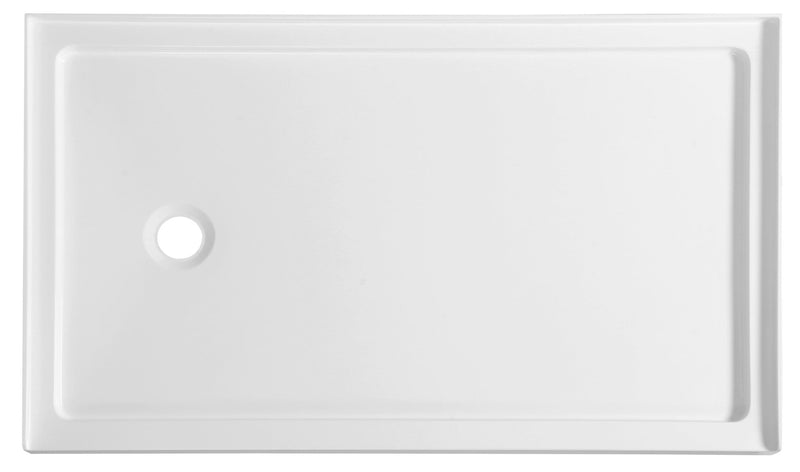

The drain sits toward the left end of the base, matched to a left-side drain line in the floor.
60" x 36" Footprint
Overall the base measures 60" x 36", so measure the framed alcove before ordering and allow for the wall finish over the flange.
Specifications
-
Model: SB-AZ007WL
-
Series: Colossi
-
Dimensions: 60" x 36"
-
Drain Location: Left
-
Material: Marine grade acrylic, Rhino Alloy certified
-
Color: White
-
Installation Type: Alcove, three-sided flange
-
Threshold: Single threshold
-
Certification: cUPC
-
Pairs With: SW-AZ009WH, SW-AZ010WH wall surrounds
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- Colossi shower base, 60" x 36"
Sold separately: Drain assembly
Installation & Care
Installation
Frame the alcove so the walls and subfloor are solid, plumb and square, as ANZZI's manual requires, and confirm the drain location before you start. The drain assembly is sold separately: the manual calls for a 2" PVC waste pipe, a drain cutout no larger than 5" in diameter (a 5" x 5" opening in the subfloor) and a sealant or gasket at the drain, never plumber's putty, which degrades the base. Let the base reach room temperature for 30 minutes, set it level in two directions on a bed of thick mortar, fasten the flange to the studs with gaps under 1/8" (shim where needed), and wait 24 hours before using the shower. Install the base before the door, wall panels or tile. ANZZI's installation manual and specification sheet are in Resources.
Care
ANZZI's base manual says to wipe the acrylic after each use with a soft cloth and to clean it with non-abrasive sprays or cream-based cleaners; never use abrasive cleansers, metal brushes or scrapers, which scratch and dull the surface. ANZZI's care guide adds: wash with regular soap and hot water on a non-abrasive cloth or sponge, test any stronger cleaner on an inconspicuous area first, rinse completely right after cleaning, and do not let the cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
Colossi is ANZZI's 60" x 36" single threshold acrylic base, with a left (SB-AZ007WL) or right (SB-AZ007WR) drain. Pair it with the Lex-Class (SW-AZ009WH) or Forum (SW-AZ010WH) 60" wall surround.
