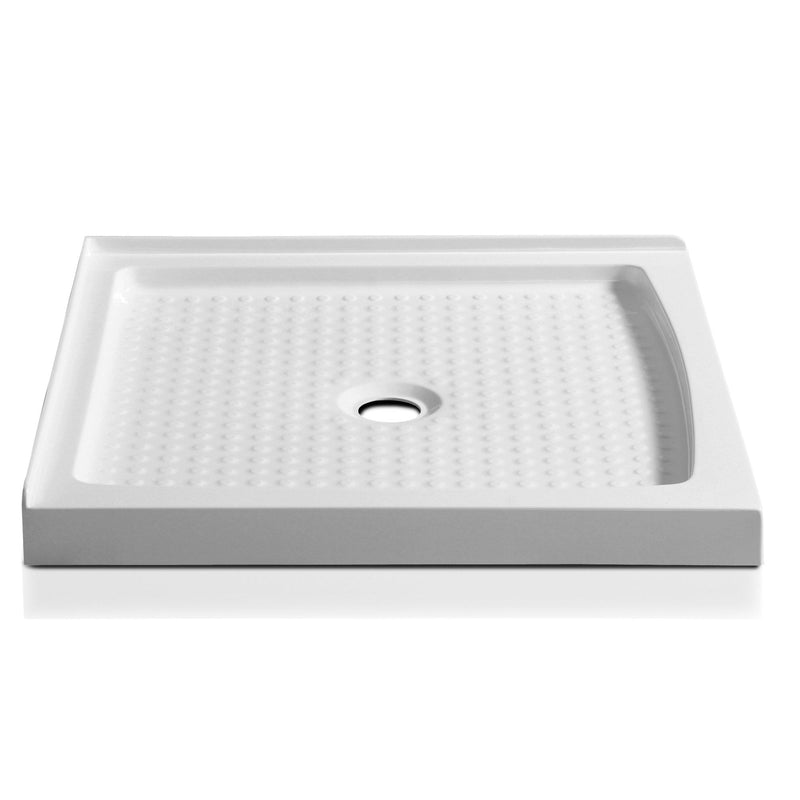

The ANZZI SB-AZ009WC is the 36" x 36" Titan Series corner shower base with a center drain, with a circle drain finish. A square 36" x 36" corner base, it fits a compact shower with a center drain and an integrated 1" tile flange.
Titan is a square corner base for a compact shower. ANZZI builds it from Rhino Alloy certified marine grade acrylic in a bright, vibrant white finish, a glossy, evenly coated surface that brightens a small space, and the corner style installation uses an integrated 1" tile flange along the two walls.
The center drain sits in the middle of the 36" square, and the slip resistant textured flooring gives secure footing. Titan comes with a choice of circle or square drain finish, so the drain cover can match the shape of your other fixtures.
At 36" W x 36" L x 3.54" H the base keeps a low step in, the scratch resilient surface is easy to clean, and ANZZI states it is cUPC certified. The drain assembly is not included.
Overall the base measures 36" W x 36" L x 3.54" H. The center drain sits mid-floor, the usual position when you are replacing an existing center-drain pan. It is a corner base: the flange runs along the two walls of the corner, and the open sides take a corner glass enclosure, so measure both walls of the corner before ordering.
Circle or square is a matter of style: the circle drain finish (SB-AZ009WC) suits curved fixtures and round shower heads, the square finish (SB-AZ009WH) the straight lines of modern tile and square trims. Either way the base is 36" square, a size that fits most corner glass enclosures sold for compact showers, and the drain assembly is sold separately. Both versions share the same integrated 1" tile flange, slip resistant textured floor and cUPC listing, so the choice comes down to the look of the drain.
Plan the rest of the shower around the base: you will need a drain assembly, sold separately, mortar and sealant for the install, and a corner glass enclosure or wall surround to finish the space. Day to day the floor needs little more than a rinse and a wipe with a soft cloth after showering, and a wash with mild soap now and then keeps the surface bright; skip abrasive pads and scrapers, which dull the finish.
Titan suits a compact corner shower in a guest bath, an en suite or a basement bathroom, finished with a square corner glass enclosure.
Features
Compact 36" Square
At 36" W x 36" L x 3.54" H, the base fits a small corner and keeps the step in low.
Circle or Square Drain Finish
Titan is offered with a circle or a square drain finish, so the drain matches the lines of your other fixtures.
Integrated 1" Tile Flange
The corner style integrated 1" tile flange lets the wall finish lap over it and keeps water in the base.
Slip Resistant Flooring
Slip resistant textured flooring gives secure footing on a wet, soapy floor, for children and adults alike.
cUPC Certified
ANZZI lists the base as cUPC certified, the plumbing listing most inspectors look for.
Center Drain
The center drain sits mid-floor, the common position when replacing an existing center-drain shower pan.
Circle Drain Finish
The circle drain finish sets the look of the drain in the floor, so pick it to echo the round lines of your other fixtures.
Specifications
-
Model: SB-AZ009WC
-
Series: Titan
-
Dimensions: 36" W x 36" L x 3.54" H
-
Drain Location: Center
-
Drain Finish: Circle
-
Material: Marine grade acrylic, Rhino Alloy certified
-
Color: White
-
Installation Type: Corner
-
Tile Flange: 1" integrated
-
Certification: cUPC
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- Titan shower base, 36" x 36"
Sold separately: Drain assembly
Installation & Care
Installation
Frame the corner so the walls and subfloor are solid, plumb and square, as ANZZI's manual requires, and confirm the drain location before you start. The drain assembly is sold separately: the manual calls for a 2" PVC waste pipe, a drain cutout no larger than 5" in diameter (a 5" x 5" opening in the subfloor) and a sealant or gasket at the drain, never plumber's putty, which degrades the base. Let the base reach room temperature for 30 minutes, set it level in two directions on a bed of thick mortar, fasten the flange to the studs with gaps under 1/8" (shim where needed), and wait 24 hours before using the shower. Install the base before the door, wall panels or tile. ANZZI's installation manual is in Resources.
Care
ANZZI's base manual says to wipe the acrylic after each use with a soft cloth and to clean it with non-abrasive sprays or cream-based cleaners; never use abrasive cleansers, metal brushes or scrapers, which scratch and dull the surface. ANZZI's care guide adds: wash with regular soap and hot water on a non-abrasive cloth or sponge, test any stronger cleaner on an inconspicuous area first, rinse completely right after cleaning, and do not let the cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
Titan is ANZZI's 36" x 36" square corner base, with a circle (SB-AZ009WC) or square (SB-AZ009WH) drain finish. Randi is the 36" neo-angle corner base and Valley is 38" x 38".
