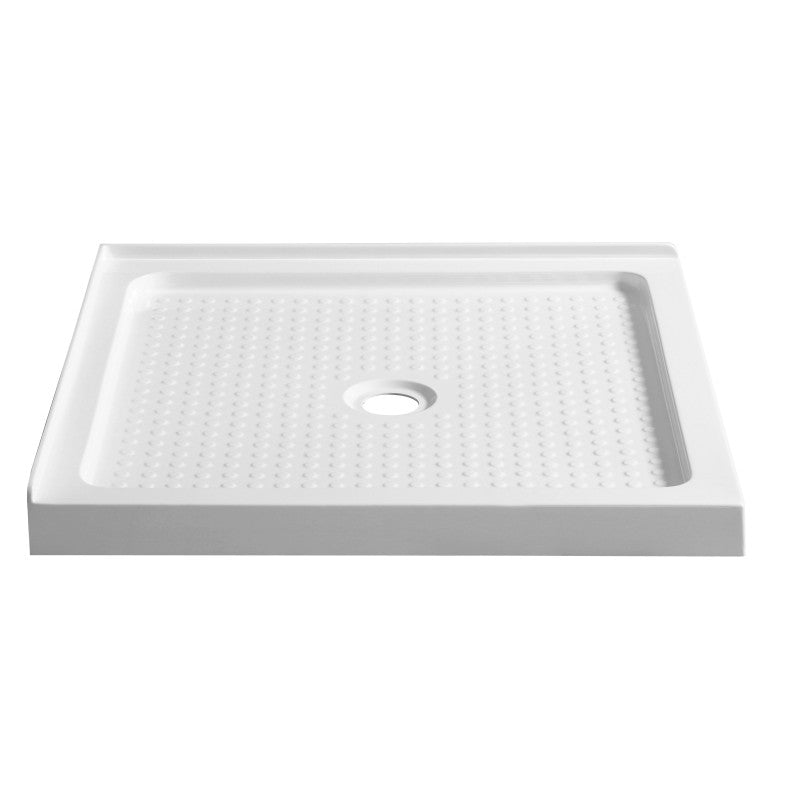

The ANZZI SB-AZ010WN is the 38" x 38" Valley Series double threshold corner shower base with a center drain. A 38" x 38" corner base with a double threshold, it opens on two sides for a corner enclosure and drains through a center drain.
Valley is a double threshold corner base: two sides carry a flange against the walls and two sides face the room, so a corner glass enclosure can open on either face. ANZZI crafts it from high-end acrylic, Rhino Alloy certified marine grade in a bright, vibrant white, molded into a modern squared shape for today's decor.
ANZZI engineers Valley for efficient drainage through its center drain, and an integrated slip-resistant texture gives a safe and secure foothold. The two-sided flange suits corner installation, and the scratch resilient surface is easy to clean.
At 38" L x 38" W x 4" H, Valley gives a little more room than a 36" corner base, and it is engineered to pair with ANZZI's shower wall collection, SW-AZ007WH.
Overall the base measures 38" L x 38" W x 4" H. The center drain sits mid-floor, the usual position when you are replacing an existing center-drain pan. It is a corner base: the flange runs along the two walls of the corner, and the open sides take a corner glass enclosure, so measure both walls of the corner before ordering.
The 38" square gives a little more elbow room than a 36" corner base, which you notice when you turn around under the shower head or bend to wash your feet. Valley pairs with ANZZI's SW-AZ007WH wall surround, and with a double threshold the glass can open on either open face, so the door can go wherever the bathroom layout allows. The drain assembly is sold separately.
Plan the rest of the shower around the base: you will need a drain assembly, sold separately, mortar and sealant for the install, and a corner glass enclosure or wall surround to finish the space. Day to day the floor needs little more than a rinse and a wipe with a soft cloth after showering, and a wash with mild soap now and then keeps the surface bright; skip abrasive pads and scrapers, which dull the finish.

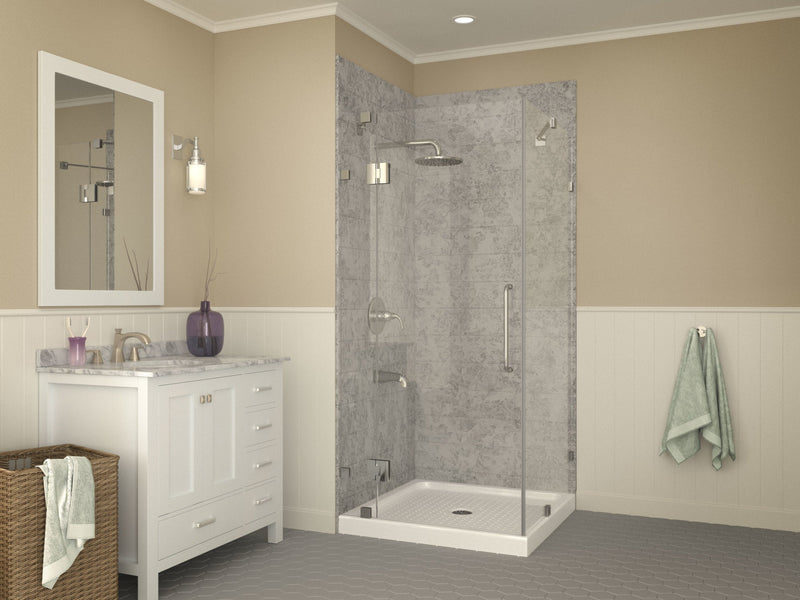

Valley suits a corner shower in a guest bath or an en suite where a slightly roomier 38" square fits, finished with a corner glass enclosure or a matching ANZZI wall surround.
Features
Double Threshold Corner
Two open sides suit a corner enclosure that can open on either face of the shower.
38" Square Footprint
At 38" L x 38" W x 4" H, Valley gives a little more room than a standard 36" corner base.
Efficient Center Drain
The center drain is engineered for efficient drainage from every corner of the floor.
Slip-Resistant Texture
An integrated slip-resistant texture gives a safe and secure foothold on a wet floor.
Marine Grade Acrylic
Rhino Alloy certified marine grade acrylic in bright white is easy to handle, scratch resilient and easy to clean.
Center Drain
The center drain sits mid-floor, the common position when replacing an existing center-drain shower pan.
Specifications
-
Model: SB-AZ010WN
-
Series: Valley
-
Dimensions: 38" L x 38" W x 4" H
-
Drain Location: Center
-
Material: Marine grade acrylic, Rhino Alloy certified
-
Color: White
-
Installation Type: Corner, two-sided flange, double threshold
-
Pairs With: SW-AZ007WH wall surround
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- Valley shower base, 38" x 38"
Sold separately: Drain assembly
Installation & Care
Installation
Frame the corner so the walls and subfloor are solid, plumb and square, as ANZZI's manual requires, and confirm the drain location before you start. The drain assembly is sold separately: the manual calls for a 2" PVC waste pipe, a drain cutout no larger than 5" in diameter (a 5" x 5" opening in the subfloor) and a sealant or gasket at the drain, never plumber's putty, which degrades the base. Let the base reach room temperature for 30 minutes, set it level in two directions on a bed of thick mortar, fasten the flange to the studs with gaps under 1/8" (shim where needed), and wait 24 hours before using the shower. Install the base before the door, wall panels or tile. ANZZI's installation manual, specification sheet and care guide are in Resources.
Care
ANZZI's base manual says to wipe the acrylic after each use with a soft cloth and to clean it with non-abrasive sprays or cream-based cleaners; never use abrasive cleansers, metal brushes or scrapers, which scratch and dull the surface. ANZZI's care guide adds: wash with regular soap and hot water on a non-abrasive cloth or sponge, test any stronger cleaner on an inconspicuous area first, rinse completely right after cleaning, and do not let the cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
Valley is ANZZI's 38" x 38" double threshold corner base. Titan and Randi are the 36" x 36" corner bases, and Port and Field Base are rectangular corner bases.
