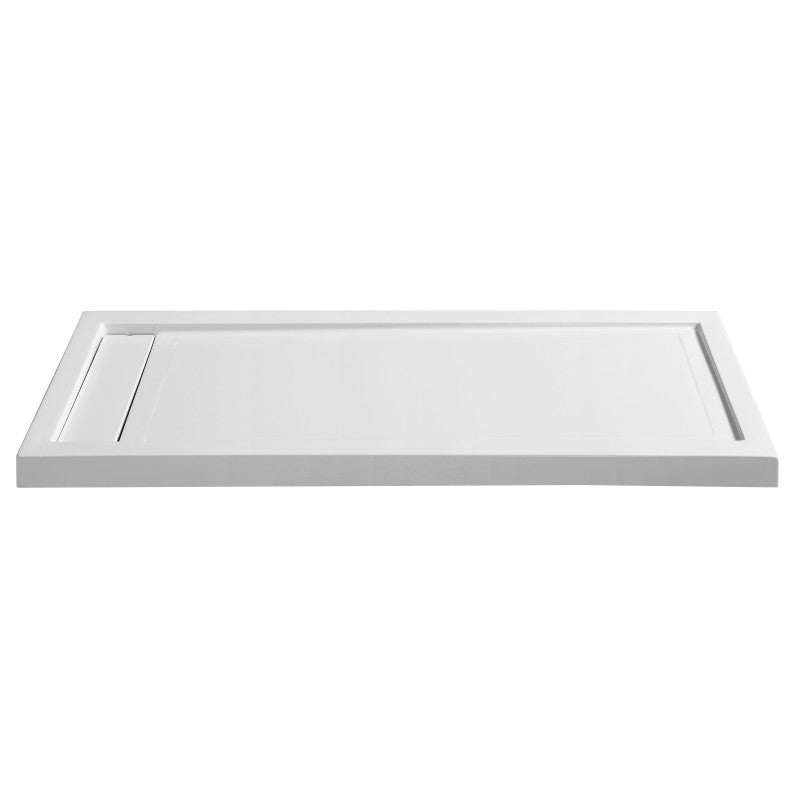

The ANZZI SB-AZ013WL is the 60" x 32" Meadow Base Series alcove acrylic shower base with a reversible left or right drain. A 60" x 32" alcove floor with a reversible drain and a removable aluminum flange, it installs for a left or right drain from the same box.
Meadow is the flexible one. Its reversible drain, finished with a matching hidden drain cover, and a removable three-sided aluminum flange let the same base install as a left or right drain alcove, so it adapts to the plumbing you already have instead of forcing a drain move. That is a real saving in a remodel where the old drain stays put.
The base is crafted using high-end acrylic, Rhino Alloy certified marine grade in a bright, vibrant white, molded into a sturdy modern rectangular shape. ANZZI engineers it for efficient drainage, and an integrated slip-resistant texture gives a safe and secure foothold.
At 60" L x 32" W x 3.75" H it fits a standard alcove, the space a bathtub usually leaves behind, and the scratch resilient surface is easy to clean.
Overall the base measures 60" L x 32" W x 3.75" H. The reversible drain lets the same base serve a left or right drain, so you can keep the drain where it already is. It is an alcove base: measure the framed opening stud to stud on all three walls before ordering, so the base sits snugly and the flange tucks behind the wall finish.
The reversible layout means the same Meadow base can go into a left-drain or a right-drain alcove: the three-sided aluminum flange is removable and the drain is reversible, with a matching hidden drain cover either way. The 60" x 32" footprint and 3.75" height suit the alcove a standard bathtub leaves when it comes out, and the drain assembly is sold separately.
Plan the rest of the shower around the base: you will need a drain assembly, sold separately, mortar and sealant for the install, and a sliding or hinged glass door, or an ANZZI wall surround to finish the space. Day to day the floor needs little more than a rinse and a wipe with a soft cloth after showering, and a wash with mild soap now and then keeps the surface bright; skip abrasive pads and scrapers, which dull the finish.
Meadow suits a tub-to-shower conversion in a 60" alcove, a remodel where the drain position should not move, and anyone who wants a hidden drain cover for a cleaner-looking floor.
Features
Reversible Drain
The drain is reversible, so the base can be set for a left or right drain to match the existing plumbing.
Removable Aluminum Flange
A removable three-sided aluminum flange allows reversible alcove installation on either hand, matching the drain side you choose.
Hidden Drain Cover
A matching hidden drain cover keeps the floor looking clean and uncluttered once the drain is fitted.
Slip-Resistant Texture
An integrated slip-resistant texture gives a safe and secure foothold on a wet floor.
Marine Grade Acrylic
Rhino Alloy certified marine grade acrylic in bright white is easy to handle, scratch resilient and easy to clean.
Reversible left or right Drain
The reversible drain lets the same base install for a left or right drain, keeping the existing drain where it is.
60" x 32" Footprint

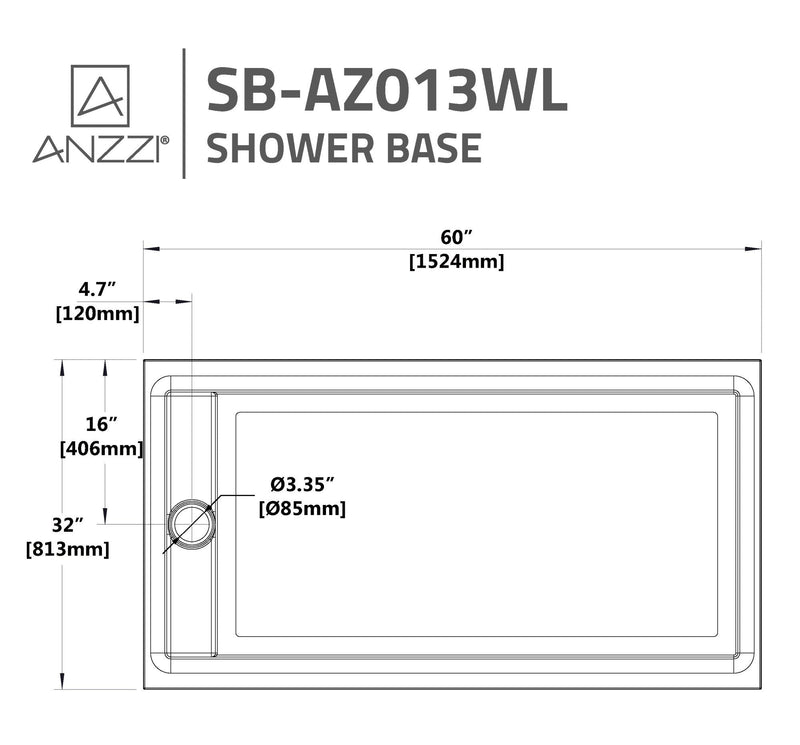

Overall the base measures 60" L x 32" W x 3.75" H, so measure the framed alcove before ordering and allow for the wall finish over the flange.
Specifications
-
Model: SB-AZ013WL
-
Series: Meadow Base
-
Dimensions: 60" L x 32" W x 3.75" H
-
Drain Location: Reversible left or right
-
Material: Marine grade acrylic, Rhino Alloy certified
-
Color: White
-
Installation Type: Alcove, removable three-sided aluminum flange
-
Drain Cover: Matching hidden cover
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- Meadow Base shower base, 60" x 32"
- Matching drain cover
Sold separately: Drain assembly
Installation & Care
Installation
Frame the alcove so the walls and subfloor are solid, plumb and square, as ANZZI's manual requires, and confirm the drain location before you start. The drain assembly is sold separately: the manual calls for a 2" PVC waste pipe, a drain cutout no larger than 5" in diameter (a 5" x 5" opening in the subfloor) and a sealant or gasket at the drain, never plumber's putty, which degrades the base. Let the base reach room temperature for 30 minutes, set it level in two directions on a bed of thick mortar, fasten the flange to the studs with gaps under 1/8" (shim where needed), and wait 24 hours before using the shower. Install the base before the door, wall panels or tile. ANZZI's installation manual, specification sheet and care guide are in Resources.
Care
ANZZI's base manual says to wipe the acrylic after each use with a soft cloth and to clean it with non-abrasive sprays or cream-based cleaners; never use abrasive cleansers, metal brushes or scrapers, which scratch and dull the surface. ANZZI's care guide adds: wash with regular soap and hot water on a non-abrasive cloth or sponge, test any stronger cleaner on an inconspicuous area first, rinse completely right after cleaning, and do not let the cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
Meadow Base is ANZZI's 60" x 32" alcove acrylic base with a reversible drain and hidden drain cover. Tier and Alexander offer fixed left, center or right drain positions.
