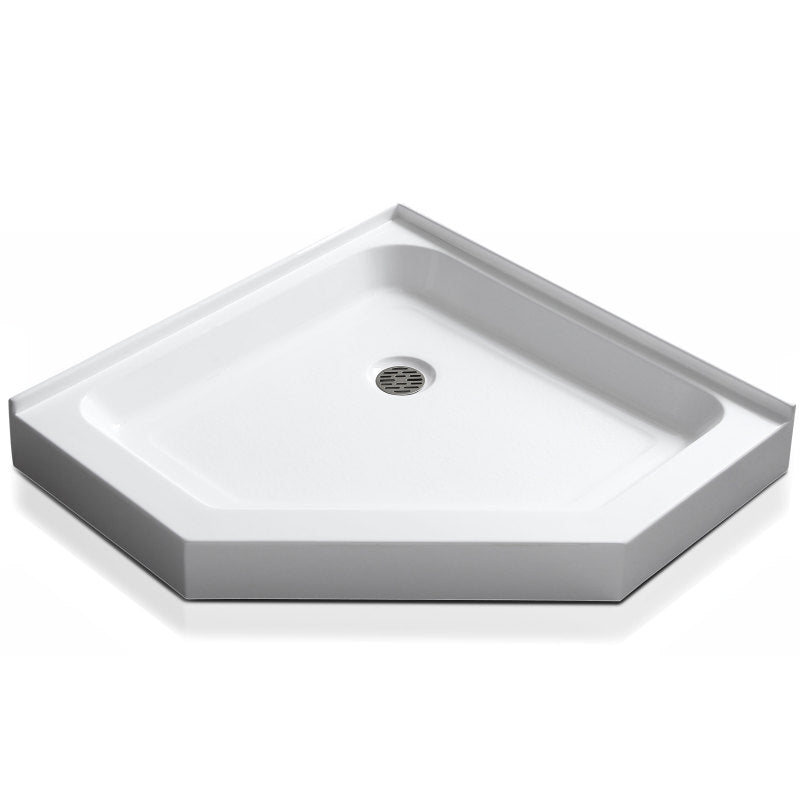

The ANZZI SB-AZ01NO is the 36" x 36" Randi Base Series neo-angle corner shower base with a center drain, with the neo-angle straight front. A 36" x 36" neo-angle corner base, it fits a compact corner shower with a center drain and a two-sided integrated tile flange.
Randi is shaped for the corner. Its neo-angle front, round or straight depending on the model, angles across the corner so a compact shower takes less floor space while still giving you room to turn, and the two-sided, 1.2" integrated tile flange runs along the two walls for an easy corner installation.
ANZZI's craftsmen use Rhino Alloy certified materials, marine grade acrylic with fiberglass reinforcement, and finish it in a lustrous high-gloss white that enhances the appearance of any bathroom. The center drain location minimizes the slope of the surface for more secure footing, and the interior depth of up to 2.5" keeps water in the base.
ANZZI states the base is certified to meet Uniform Plumbing Code (UPC) standards. Overall it measures 36" W x 36" D x 5.5" H.
Overall the base measures 36" W x 36" D x 5.5" H. The center drain sits mid-floor, the usual position when you are replacing an existing center-drain pan. It is a corner base: the flange runs along the two walls of the corner, and the open sides take a corner glass enclosure, so measure both walls of the corner before ordering.
Round or straight is a style choice that follows the enclosure: the neo-angle round front (SB-AZ01RO) takes a curved glass enclosure and the straight front (SB-AZ01NO) an angled one with flat panels. Either way the base keeps the same 36" x 36" footprint, center drain and two-sided flange, and the drain assembly is sold separately, so pick a drain body that suits your waste line.
Plan the rest of the shower around the base: you will need a drain assembly, sold separately, mortar and sealant for the install, and a corner glass enclosure or wall surround to finish the space. Day to day the floor needs little more than a rinse and a wipe with a soft cloth after showering, and a wash with mild soap now and then keeps the surface bright; skip abrasive pads and scrapers, which dull the finish.

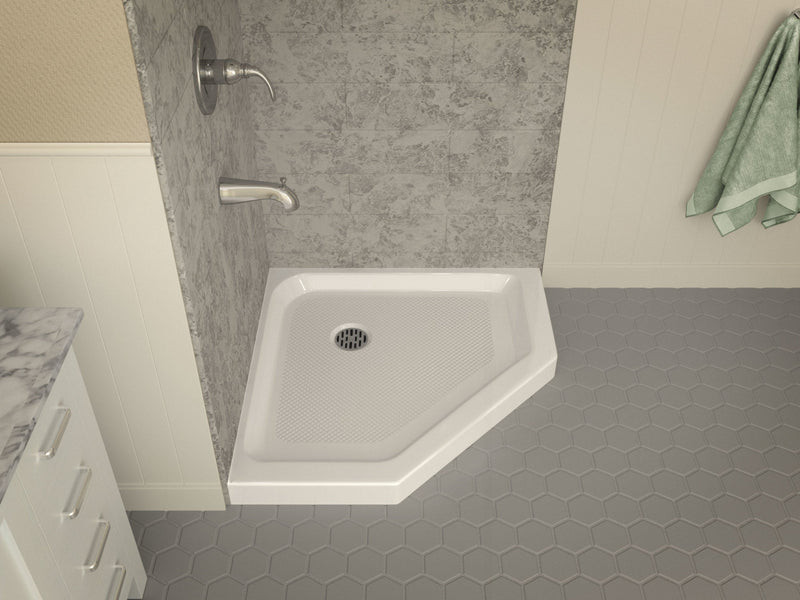

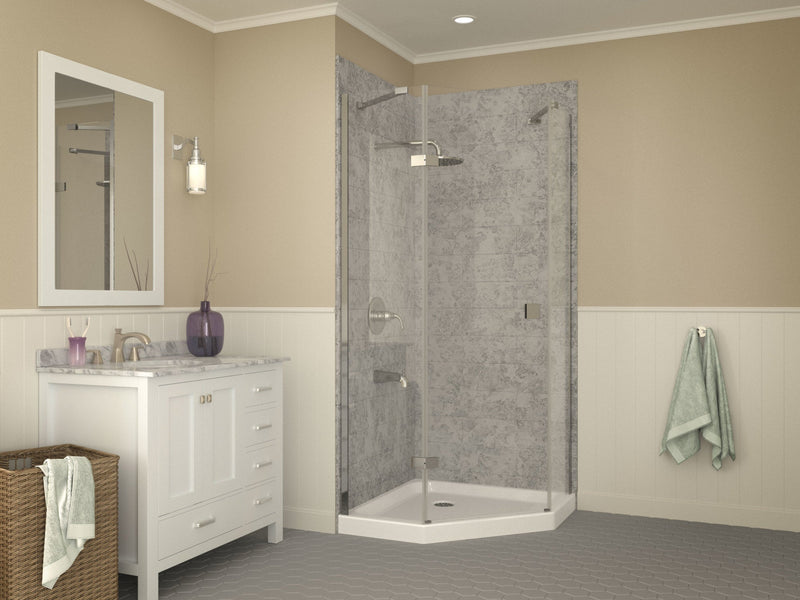

Randi suits a small bathroom, a basement bath or an en suite where a corner is the only place for a shower, finished with a neo-angle glass enclosure that matches its round or straight front.
Features

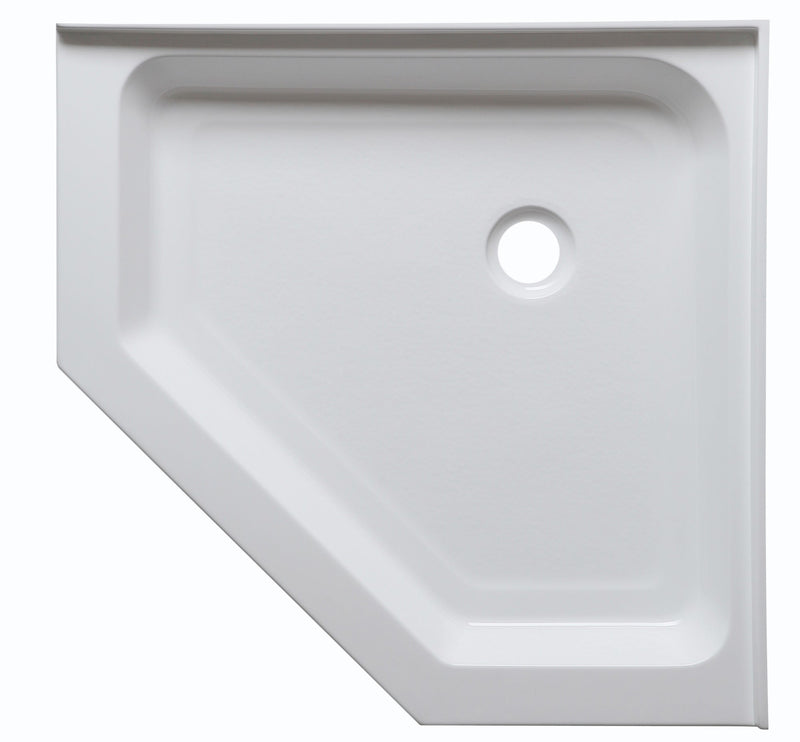

Neo-Angle Corner Shape
The angled front saves floor space in a compact corner while leaving room to turn in the shower.
Center Drain, Gentler Slope
The center drain location minimizes the slope of the surface for more secure footing.
Integrated 1.2" Tile Flange
A two-sided, 1.2" integrated tile flange makes the corner installation easy and keeps wall water in the base.
Fiberglass-Reinforced Acrylic
Rhino Alloy certified marine grade acrylic with fiberglass reinforcement gives a rigid, high-gloss white floor.
UPC Certified
ANZZI states the base is certified to meet all Uniform Plumbing Code (UPC) standards.

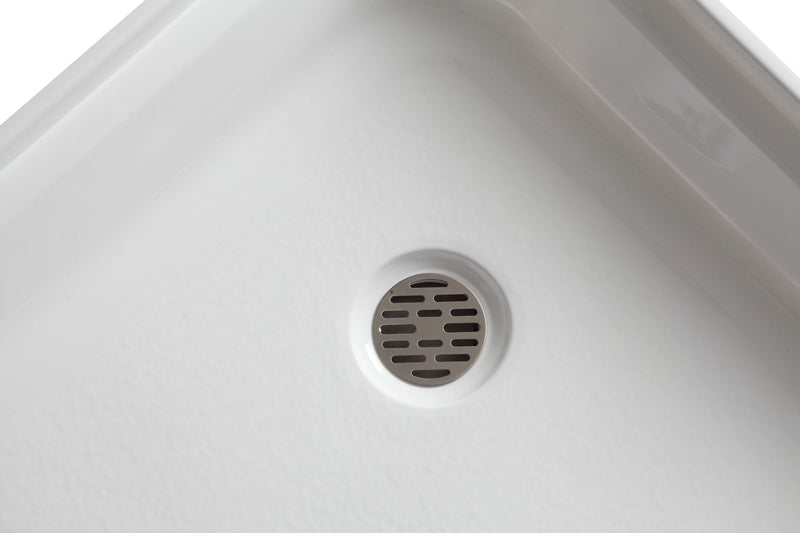

Center Drain
The center drain sits mid-floor, the common position when replacing an existing center-drain shower pan.

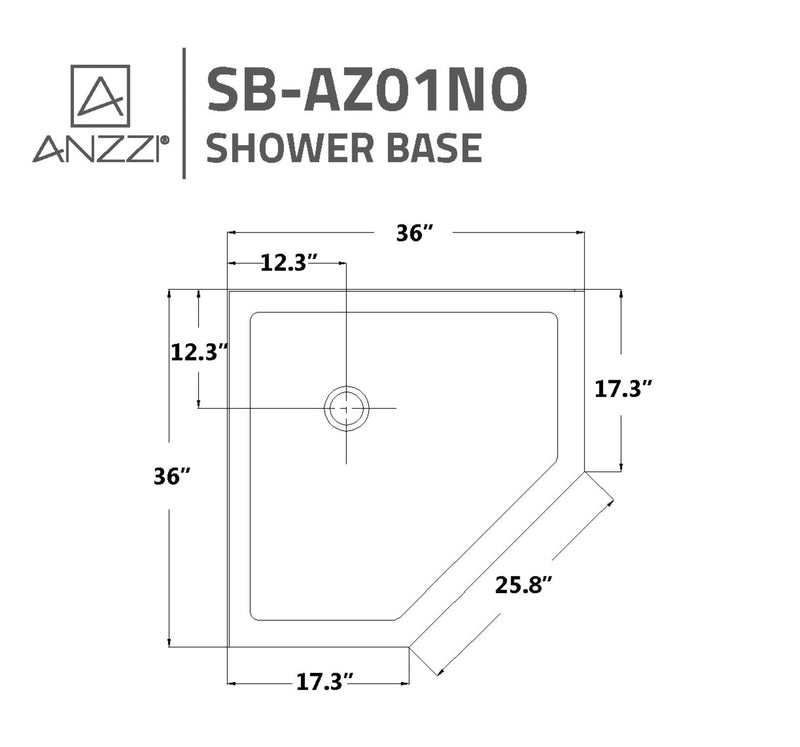

36" x 36" Footprint
Overall the base measures 36" W x 36" D x 5.5" H, so measure the framed corner before ordering and allow for the wall finish over the flange.
Neo-angle Straight Front
The neo-angle straight front sets the shape of the glass enclosure: a flat-panel angled neo-angle enclosure closes the open side.
Specifications
-
Model: SB-AZ01NO
-
Series: Randi Base
-
Dimensions: 36" W x 36" D x 5.5" H
-
Drain Location: Center
-
Shape: Neo-angle Straight
-
Material: Marine grade acrylic with fiberglass reinforcement, Rhino Alloy certified
-
Finish: High gloss white
-
Installation Type: Corner, two-sided flange
-
Tile Flange: 1.2" integrated
-
Interior Depth: Up to 2.5"
-
Certification: UPC
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- Randi Base shower base, 36" x 36"
Sold separately: Drain assembly
Installation & Care
Installation
Frame the corner so the walls and subfloor are solid, plumb and square, as ANZZI's manual requires, and confirm the drain location before you start. The drain assembly is sold separately: the manual calls for a 2" PVC waste pipe, a drain cutout no larger than 5" in diameter (a 5" x 5" opening in the subfloor) and a sealant or gasket at the drain, never plumber's putty, which degrades the base. Let the base reach room temperature for 30 minutes, set it level in two directions on a bed of thick mortar, fasten the flange to the studs with gaps under 1/8" (shim where needed), and wait 24 hours before using the shower. Install the base before the door, wall panels or tile. ANZZI's installation manual and specification sheet are in Resources.
Care
ANZZI's base manual says to wipe the acrylic after each use with a soft cloth and to clean it with non-abrasive sprays or cream-based cleaners; never use abrasive cleansers, metal brushes or scrapers, which scratch and dull the surface. ANZZI's care guide adds: wash with regular soap and hot water on a non-abrasive cloth or sponge, test any stronger cleaner on an inconspicuous area first, rinse completely right after cleaning, and do not let the cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
Randi Base is ANZZI's 36" x 36" neo-angle corner base, with a round (SB-AZ01RO) or straight (SB-AZ01NO) front. Titan is the square 36" x 36" corner base.
