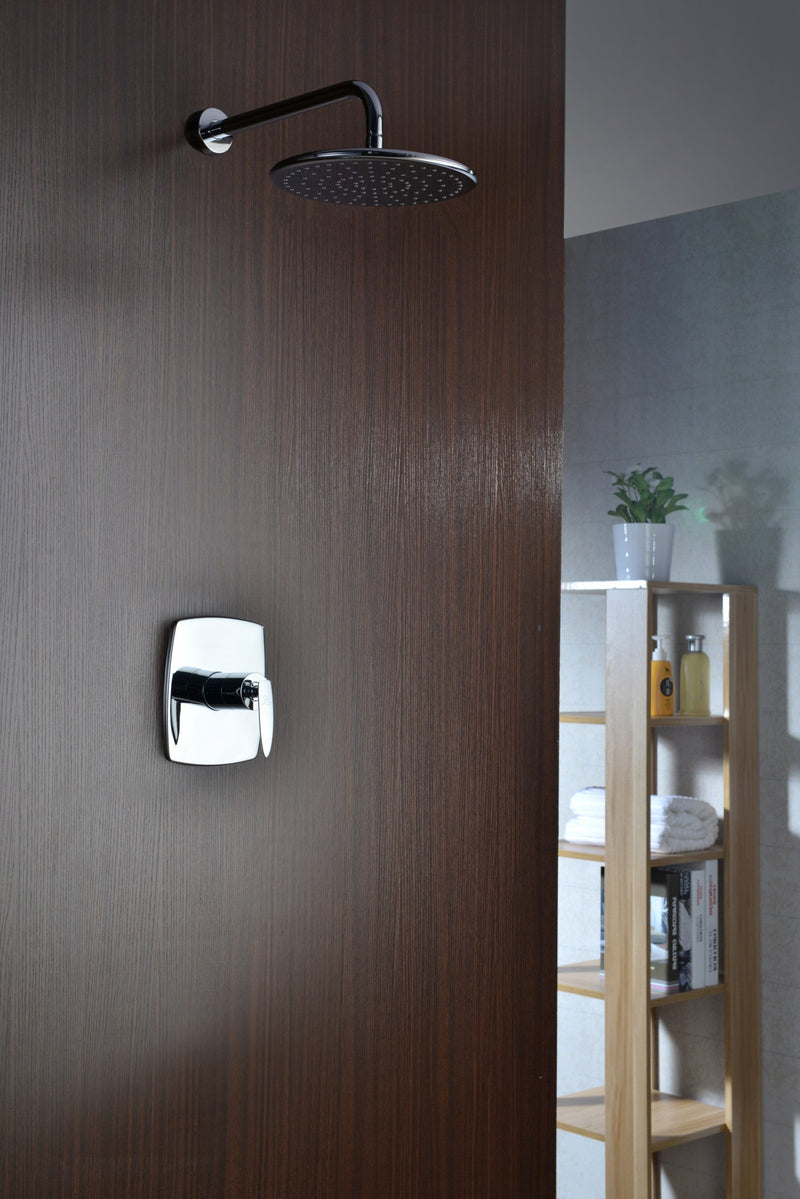

The ANZZI SH-AZ030 is a Thyme single-handle wall-mounted shower set in polished chrome, pairing an 11.4" Heavy Rain showerhead with a one-lever mixing valve and trim. It is a shower-only set for a walk-in shower or stall, with one lever on the wall.
An 11.4" Rain Head on One Lever
The 11.4" Heavy Rain head provides a powerful and deeply refreshing full body shower at a flow of 1.8 GPM. The head screws onto a wall shower arm, with a flange to cover the opening in the tile.
Control is one lever on a round trim plate. The deceptively simple single handle design gives complete and easy control of both water flow and temperature, while keeping a fine minimalist aesthetic to match with any modern or contemporary decor style.
Inside the Wall
Inside, the valve is lead-free RHINO ALLOY certified brass, and a marine grade ceramic disc valve controls the water. ANZZI's install guide lists the set to ASME A112.18.1/CSA B125.1, and the Thyme is cUPC certified and listed for North America. The valve body includes a check valve.
The Thyme is a modern European inspired design brought to life through precision German engineering, and its lead-free brass interior and rust resistant polished chrome finish make an all-metal combination of materials.
ANZZI's install guide takes the job in order. Remove the first protective covers, but leave the last one on until it is flush with the finished wall, then take out the two screws and that cover. Connect the hot and cold supply lines to their own sides of the valve, let the water run for 1 to 2 minutes and confirm there are no leaks. Wrap Teflon tape on the shower arm, place the flange on the shower pipe and screw the arm in, then screw the head on with the O-ring between arm and head. The trim plate fastens over the valve with its screws, the mixing valve handle goes on with its set screw, and the index fits last.
The guide recommends a screwdriver, channel locks, an adjustable wrench, an Allen key, goggles and Teflon tape. ANZZI's other wall-mounted shower sets include the Viace (SH-AZ041, SH-AZ041BN, SH-AZ041ORB) shower-only set, and the Spirito (SH-AZ040), Mezzo (SH-AZ037, SH-AZ037MK, SH-AZ039), Meno (SH-AZ032, SH-AZ032BN) and Mesto (SH-AZ034, SH-AZ035) tub and shower sets.
The SH-AZ030 arrives with the shower arm, flange, showerhead, valve body, cartridge, trim plate and handle in one polished chrome finish.
For a walk-in shower or shower stall, the SH-AZ030 is an ANZZI wall-mounted rain shower set with an 11.4" Heavy Rain head, a ceramic disc valve and one lever, in polished chrome.
Features
11.4" Heavy Rain Showerhead
The 11.4" Heavy Rain head, on a wall shower arm with a flange to cover the tile opening, gives a powerful and deeply refreshing full body shower.
1.8 GPM Flow
The Thyme flows at 1.8 GPM through the 11.4" Heavy Rain head, controlled by one lever on a round trim plate.
One-Lever Control
A single lever sets flow and temperature together in a deceptively simple single handle design.
Ceramic Disc Valve
A marine grade quality ceramic disk valve controls the water, the valve ANZZI includes in the Thyme set.
Lead-Free Brass, Certified
The lead-free RHINO ALLOY brass valve is listed to ASME A112.18.1/CSA B125.1 and cUPC certified and listed for North America.
Matched Trim Set
The shower arm, flange, head, trim plate and handle all come in the same one finish.
Specifications
-
Model: SH-AZ030
-
Showerhead Diameter: 11.4"
-
Material: Lead-free RHINO ALLOY certified brass
-
Finish: Polished Chrome
-
Installation: Wall mount, shower
-
Handle: Single lever
-
Showerhead: Heavy Rain
-
Flow Rate: 1.8 GPM
-
Valve: Marine grade ceramic disc
-
Certifications: cUPC; ASME A112.18.1/CSA B125.1
-
Series: Thyme
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SH-AZ030 Heavy Rain showerhead, shower arm and flange
- Valve body with cartridge, check valves and cartridge locknut
- Trim plate, lever handle, handle adapter and index
- Screws, O-rings, washer and protective covers
Installation & Care
Installation
Wall mounted: plumb the valve body into the wall with the hot and cold supplies on their own sides, and keep the last protective cover on until it is flush with the finished wall. Flush the lines for 1 to 2 minutes and check for leaks. Wrap Teflon tape on the shower arm, fit the flange, screw on the head with its O-ring, then fix the trim plate with its screws and the handle with its set screw.
Care
Clean the polished chrome finish with regular soap and warm water on a soft, non-abrasive cloth or sponge, then rinse and dry it. Use only a non-abrasive cloth or sponge. Test any stronger cleaner on an inconspicuous area first, and do not let cleaner soak on the surface.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Thyme is one of ANZZI's wall-mounted shower sets; the Spirito and Tempo add a tub spout for a tub-shower, and ANZZI's shower panels add body jets and a hand sprayer.
