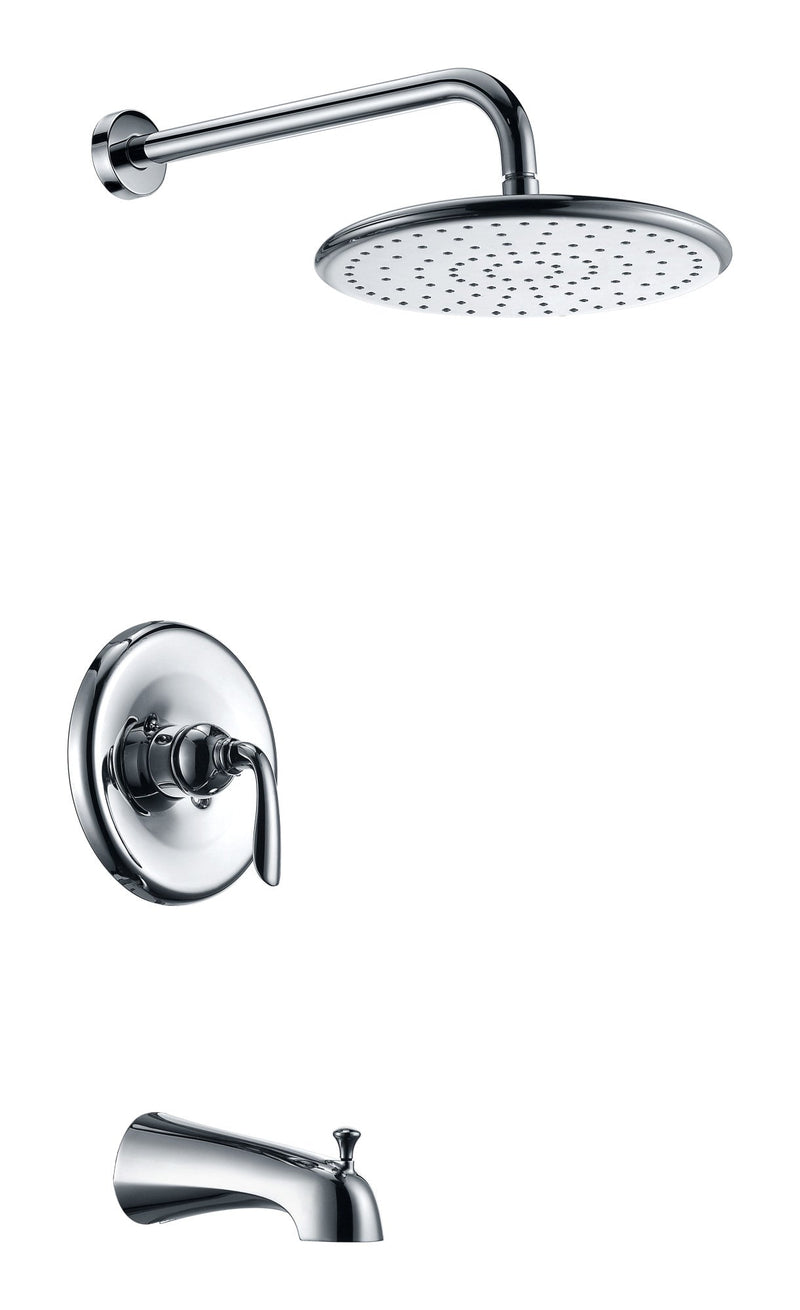

The ANZZI SH-AZ032 Meno Series is a single-handle tub and shower faucet set in polished chrome, combining an 11.39" Heavy Rain shower head, a wall tub spout and a single lever valve. It is a complete trim kit for a tub and shower combination, with the valve included.
One lever sets flow and temperature. Water runs from the tub spout; pull up the knob on the spout to send it to the rain head. The 11.39" Heavy Rain head gives a full body shower, and the tub spout has a 6.5" reach.
The shower flows at 1.8 GPM. Inside the wall, ANZZI supplies the valve body with its cartridge and stops.
What the Rough-In Needs
The valve body sits 0.86" to 1.65" behind the finished wall and the shower and tub spout outlets need 1.25" holes; the pipe and fittings come from any plumbing supplier, using UPC or CSA approved supplies to local code.
ANZZI crafts the Meno with a lead-free RHINO ALLOY certified brass interior under a rust resistant polished chrome finish, and the set is cUPC certified and listed for North America.
Before soldering copper, take the cartridge and stop valves out of the valve body, then refit them afterwards and tighten them without over tightening. Do not use PEX tubing between the valve and the tub spout; where PEX feeds the valve, keep it clear of wallboard and air ducts and clamp or strap it to prevent noise and water hammer. On a thin fiberglass surround the protect cover stays on the valve, while on a thick tiled or cement board wall its face sits flush with the finished wall.
For a tub and shower combination that needs one matched kit, the ANZZI SH-AZ032 Meno single-handle tub and shower faucet set brings an 11.39" rain shower head, a 6.5" reach tub spout and an included rough-in valve together in polished chrome, from the shower arm to the spout.
Features
Complete Tub and Shower Set
Shower head, arm, flange, valve body with cartridge, handle, trim plate and tub spout come in one box.
11.39" Heavy Rain Head
The 11.39" round Heavy Rain shower head gives a full body shower from the shower arm included in the set.
Single Lever Control
One lever sets both volume and temperature, working the valve body ANZZI supplies inside the wall with its cartridge and stops.
Tub Spout with 6.5" Reach
The wall-mounted tub spout has a 6.5" reach and a pull-up knob that sends the water to the rain head.
Copper or IPS Rough-In
The valve inlets take a 1/2" copper solder connection or a 1/2" IPS threaded coupling; do not use PEX tubing from the valve to the tub spout.
Lead-Free Brass, cUPC Certified
The interior is lead-free RHINO ALLOY certified brass and the set is cUPC certified.
Specifications
-
Model: SH-AZ032
-
Material: Lead-free solid brass
-
Finish: Polished Chrome
-
Configuration: Tub and shower faucet, wall mount
-
Handles: Single lever
-
Shower Head: Heavy Rain, 11.39" diameter, 1 spray
-
Tub Spout Reach: 6.5"
-
Flow Rate: 1.8 GPM
-
Rough-In Valve: Included
-
Inlet Connection: 1/2" copper solder or 1/2" IPS threaded
-
Valve Depth: 0.86" min. to 1.65" max. to finished wall
-
Water Pressure: 20 to 125 PSI
-
Certification: cUPC
-
Series: Meno
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SH-AZ032 shower head
- Shower arm and flange
- Valve body with cartridge and stops
- Handle and trim plate
- Tub spout
- Protect cover, retainer, screws and Allen key
Sold separately: Pipe, fittings and supply line connectors (available wherever plumbing supplies are sold)
Installation & Care
Installation
Wall mount, valve included. Shut off the water supplies to the valve. Open faucet handle to relieve water pressure and ensure complete water shut-off has been accomplished. The hot water supply lines go into the "H" inlet, and the cold water supply lines go into the "C" inlet. The shower and tub spout outlet holes should be 1.25" in diameter, the valve body should sit 0.86" to 1.65" from the finished wall, and the tub spout needs at least 8" below the valve for proper operation. The inlets take 1/2" copper solder or a 1/2" IPS threaded coupling, and household pressure must be 20 to 125 PSI. Pipe and fittings are not included; use UPC or CSA approved supplies and follow local plumbing codes. Protect your eyes with safety glasses when cutting or soldering water supply lines. If soldering connections, remove certain inflammable parts first to avoid heat damage. Turn on the hot and cold water supply lines and allow the water to flow from the outlets for one minute, or until all foreign matter has been flushed out. Check for leaks.
Care
Wipe the polished chrome trim with regular soap, warm water and a soft, non-abrasive cloth, then rinse and dry. Use only a non-abrasive cloth or sponge. Test any stronger cleaner on a hidden area and never let it soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Meno set comes in polished chrome (SH-AZ032) and brushed nickel (SH-AZ032BN). ANZZI's other wall shower sets include the Mesto, Spirito and Viace shower heads.
