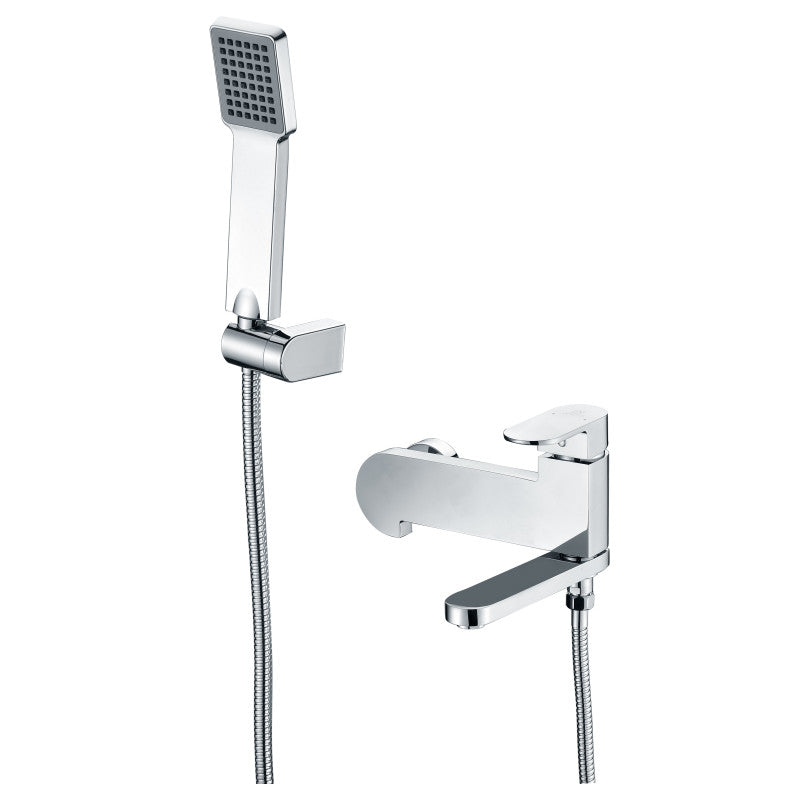

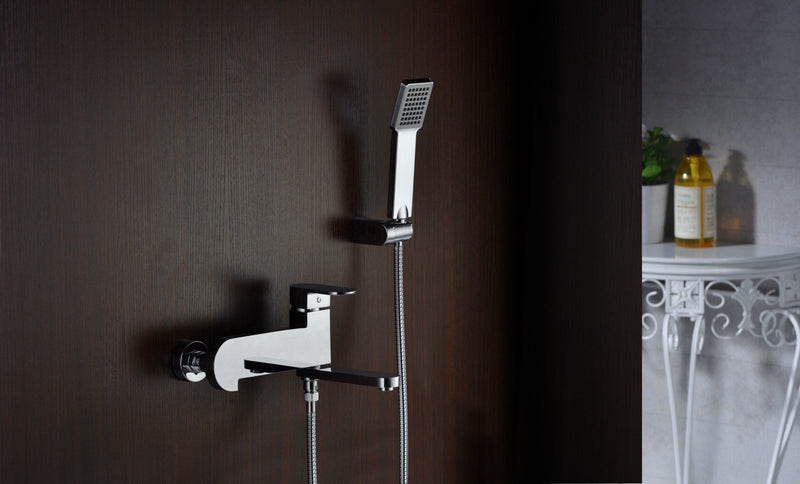

The ANZZI SH-AZ042 is an Echo Series single-handle wall-mounted tub and shower faucet in polished chrome, with a tub spout and the Euro-Grip handheld sprayer. It mounts on the wall over embedded outlet pipes above the tub.
Spout and Diverter in One Movement
One lever controls both flow and temperature. The spout doubles as the diverter: swing it to the left and water runs to the hand shower, swing it to the right and it fills the tub. The handheld sprayer clips into a wall holder and is free to lift out on its hose.
The faucet flows at 2 GPM. The body has a compact, small profile against the wall, and its minimalist aesthetic is made to match any modern or contemporary décor style.
The interior is lead-free solid brass, Rhino Alloy certified, under a rust resistant polished chrome finish. The faucet is cUPC certified and listed for installation in North America, and it meets ASME A112.18.1/CSA B125.1.
Wall Outlets 5.91" Apart
ANZZI's manual sets out the rough-in: the two outlet pipes in the wall sit 150 mm (5.91") apart and stand 900 mm to 1000 mm (35.43" to 39.37") above the floor. Each eccentric nut is sealed with tape and screwed onto its embedded outlet pipe, the flanges press flat against the wall, and the faucet body tightens onto the eccentric nuts with a washer between each pair. If the outlets are slightly out of line, the eccentric nuts are turned until the body lines up.
The shower hose links the faucet body to the hand shower, and the shower holder fixes to the wall with expansion anchors and screws. For the first run, open the handle and turn the spout to flush any debris out of the pipes, then check the connections for leaks. Check valves sit in the assembly.
Because it mounts to two outlet pipes on the wall with adjustable eccentric connectors, the SH-AZ042 can replace an existing exposed bath mixer on outlets set 5.91" apart without opening the wall. The spout carries its own aerator and aerator collar, listed in ANZZI's parts list.
The recommended tools are a screwdriver, channel locks, an adjustable wrench, an Allen key, goggles and Teflon tape, and every instruction should be read through before the work starts.
The ANZZI SH-AZ042 wall-mounted tub and shower faucet keeps everything on one compact polished chrome body, with the spout doing double duty as the diverter.
Features
Single Lever Control
One single lever handle sets both water temperature and flow for the tub spout and the hand shower.
Swivel Spout Diverter
Turning the spout left sends water to the hand shower and turning it right fills the tub, a simple switch with no extra knob on the wall.
Euro-Grip Handheld Sprayer
The handheld sprayer lifts from its wall holder for use and clips back into the holder afterward.
Lead-Free Solid Brass Interior
ANZZI builds the interior from lead-free Rhino Alloy certified brass, under a Lustrous Polished Chrome rust resistant finish.
cUPC Certified
The faucet is cUPC certified and listed for North America, and the manual cites ASME A112.18.1/CSA B125.1.
Adjustable Eccentric Connectors
Eccentric nuts adjust to line the faucet up with two wall outlets set 5.91" apart, so small variations in pipe position can be taken up during install.
Polished Chrome Finish
The Lustrous Polished Chrome finish is rust resistant over the lead-free brass interior of the compact wall mounted body.
2 GPM Flow
The faucet flows at 2 GPM and is cUPC certified and listed for North America.
Specifications
-
Model: SH-AZ042
-
Material: Lead-free solid brass interior, Rhino Alloy certified
-
Finish: Polished chrome, rust resistant
-
Installation: Wall mount on two outlet pipes, 5.91" (150 mm) apart
-
Mounting Height: 35.43" to 39.37" (900 to 1000 mm) from the floor
-
Handles: Single lever
-
Diverter: Swivel spout: left to hand shower, right to spout
-
Hand Shower: Euro-Grip handheld with hose and wall holder
-
Flow Rate: 2 GPM
-
Certifications: cUPC, ASME A112.18.1/CSA B125.1
-
Series: Echo
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SH-AZ042 wall-mounted bath faucet with spout
- Handheld sprayer with shower hose
- Shower holder with expansion anchors
- Flanges and eccentric nuts
- Allen key
Installation & Care
Installation
Wall mount on two embedded outlet pipes spaced 5.91" (150 mm) apart and set 35.43" to 39.37" (900 to 1000 mm) above the floor. Seal the eccentric nuts with Teflon tape, thread them into the outlet pipes, press the flanges to the wall and fit the faucet, with a washer between the nuts. Mount the shower holder with the expansion anchors and connect the hose. Flush the pipes through the spout before first use and check every connection for leaks.
Care
Clean the faucet with water and dry it with a soft cloth; ANZZI's manual allows a gentle liquid or glass cleaner. Do not use acid cleaners, and do not clean with abrasive material, abrasive paper or a knife, which scratch the plated finish.
