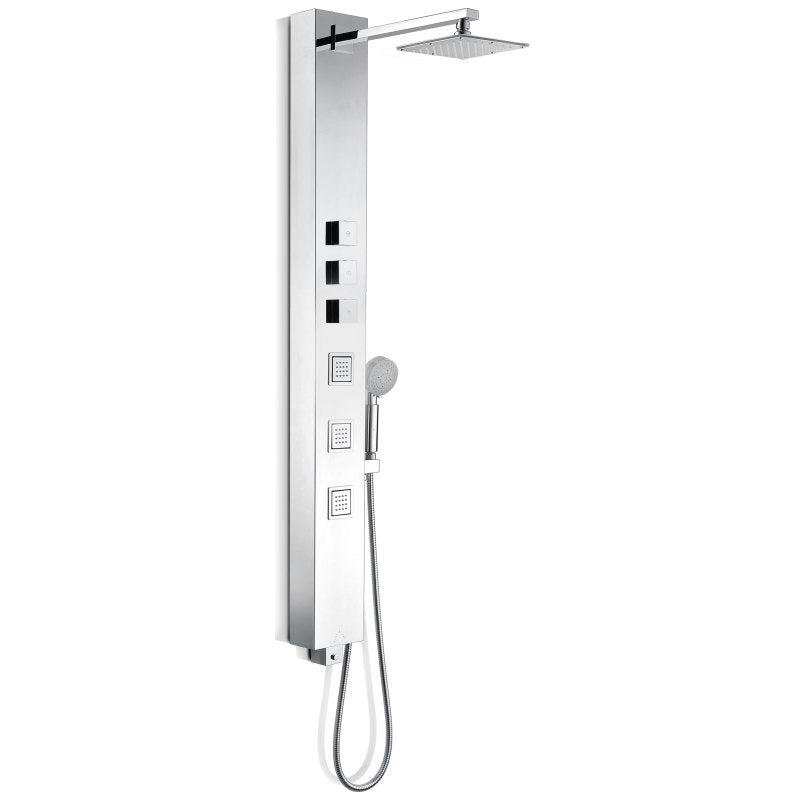

The ANZZI SP-AZ015 is a Lann 53" three-jet full body shower panel system in chrome with the valve included, a laser-cut stainless steel shower tower with three swiveling Acu-Stream body jets, a swiveling Heavy Rain showerhead and a polished steel Euro-Grip hand sprayer. The mixing valve is built into the panel.
Three Jets, a Rain Head and the Valve Built In
The three Acu-Stream jets swivel, and the 6.89" x 6.89" Heavy Rain overhead head swivels on its arm. The hand sprayer reaches 60" on its hose, and a water diverter control switches between the outlets.
Four easy-to-reach knobs sit on the panel face, with a thermostatic faucet and cartridge that hold the temperature you set and an on and off valve for the outlets. The flow rate is a water saving 1.8 GPM.
The body is laser cut and precision shaped from stainless steel, with a brass arm, flanges and body jets, solid brass valves and a thermostatic faucet body in brass. The construction is Rhino Alloy certified. The panel stands 51.18" tall, weighs 17.20 lbs and connects to 1/2" supplies. The parts list is marked ASME A112.18.1/CSA B125.1.
Why the Built-In Valve Matters
The Lann carries its own thermostatic faucet body and cartridge on the panel, along with an on and off valve, so the panel itself does the mixing from the hot and cold supply lines.
The panel hangs on two brackets. ANZZI's guide has you check the wall for hidden cables and pipes, drill the two top bracket holes 1" apart with a 6mm bit at the height you want, then drill the two bottom bracket holes 1" apart below them. Wall anchors take the screws, the hot and cold hoses screw onto the 1/2" supply lines in the wall, and the panel lifts onto its brackets.
The face is laser cut stainless steel in chrome, with a polished steel Euro-Grip hand sprayer.
The ANZZI SP-AZ015 53" Lann shower panel combines three swiveling jets, a swiveling rain head, a 60" hand sprayer and thermostatic control in one chrome shower tower.
Features
Valve Included
The thermostatic mixing valve is built into the panel, so the panel itself does the mixing from the hot and cold supply lines.
Three Swiveling Body Jets
Three fully adjustable Acu-Stream body jets swivel on the panel face, each with a brass jet body and flange.
Swiveling Heavy Rain Head
The 6.89" x 6.89" overhead showerhead swivels on its brass arm and features Heavy Rain water pressure technology.
Euro-Grip Hand Sprayer, 60" Reach
The polished steel Euro-Grip handheld sprayer reaches 60" on its hose, beside the three jets and the rain head.
Thermostatic Temperature Hold
A thermostatic faucet and cartridge mix the water to the temperature you set, and an on and off valve controls the outlets.
1.8 GPM Flow
The Lann shower panel has a water saving 1.8 GPM flow rate that is environmentally friendly.
Stainless Steel and Brass Build
A laser-cut stainless steel body with brass arm, flanges, jets and valves brings the panel to 17.20 lb.
Chrome Finish
The laser cut, precision shaped stainless steel face is finished in chrome, and the construction is Rhino Alloy certified.
Specifications
-
Model: SP-AZ015
-

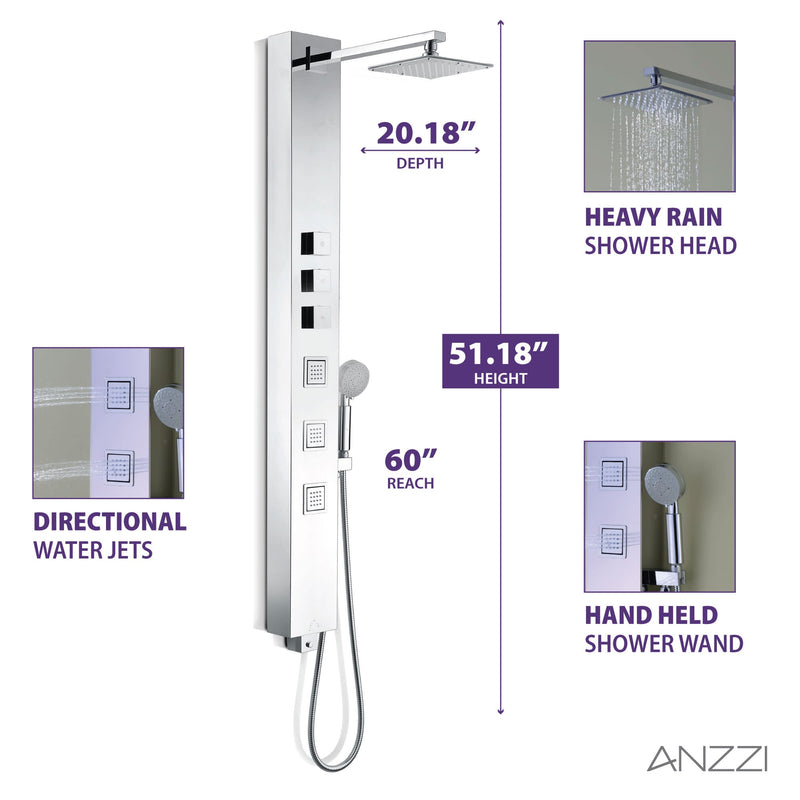

Height: 51.18"
-
Weight: 17.20 lbs
-
Material: Stainless steel body, brass arm, flanges, body jets and valves, Rhino Alloy certified
-
Finish: Chrome
-
Installation: Wall mount on brackets, valve included
-
Shower Head: 6.89" x 6.89" Heavy Rain, swiveling
-
Body Jets: 3 Acu-Stream swiveling jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Valve: Thermostatic faucet and cartridge, on and off control
-
Flow Rate: 1.8 GPM with the reducer removed (spec sheet)
-
Supply Connection: 1/2" connections
-
Certifications: ASME A112.18.1/CSA B125.1
-
Series: Lann
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ015 Lann shower panel with thermostatic valve
- Heavy Rain shower head
- Three Acu-Stream body jets
- Euro-Grip hand sprayer with hose and holder
Installation & Care
Installation
Wall mount over the finished shower wall. Check the wall for hidden cables and pipes, then drill two holes 1" apart for the top bracket at the height you want and two holes 1" apart for the bottom bracket below it, using a 6 mm drill and the supplied wall anchors. Screw the panel's hot and cold hoses onto 1/2" supply connections in the wall, then hang the panel on the brackets and fit the shower head and hand shower. Teflon tape, channel locks and an adjustable wrench are recommended.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces.
