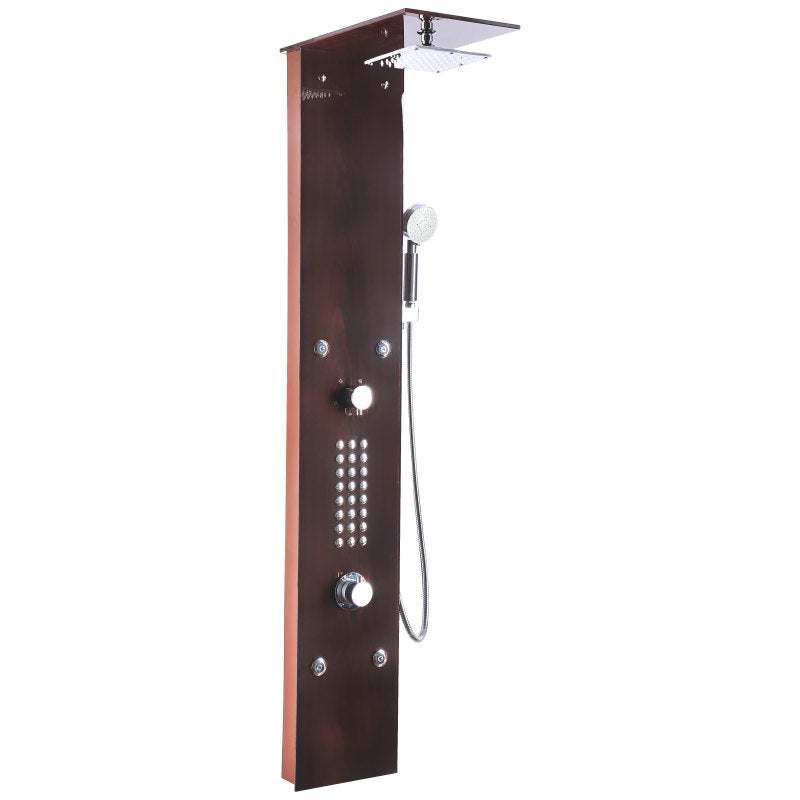

The ANZZI SP-AZ016 Rite full body shower panel is a 60.75" class shower tower with 28 body jets, a rich mahogany-style tempered deco-glass face, a Heavy Rain overhead shower and a handheld Euro-Grip sprayer. With 28 jets down the column, it is for someone who wants the closest thing to a full hydro-massage shower in an existing stall, without new in-wall valves.
Twenty-Eight Jets, Head to Calf
Twenty-eight polished chrome Acu-Stream jets cover the length of the column. The 6.89" x 6.89" Heavy Rain head pours a steady rainfall from above, and the Euro-Grip hand sprayer on the side reaches up to 60".
Two polished chrome knobs handle everything: a thermostatic mixer holds the temperature you set, and a diverter moves the water between the rain head, the jets and the sprayer. The panel flows at 1.8 GPM and uses flexible reinforced stainless steel hoses on standard 1/2" connections.
ANZZI builds the Rite from RHINO ALLOY certified 304 stainless steel, solid brass valves and tempered deco-glass, and lists it to ASME A112.18.1/CSA B125.1. The panel stands 59.37" tall and weighs 30.42 lb, mounted on wall brackets.
Pre-Plumbed and Bracket Mounted
The panel arrives pre-plumbed, so installation stays on the surface of the wall.

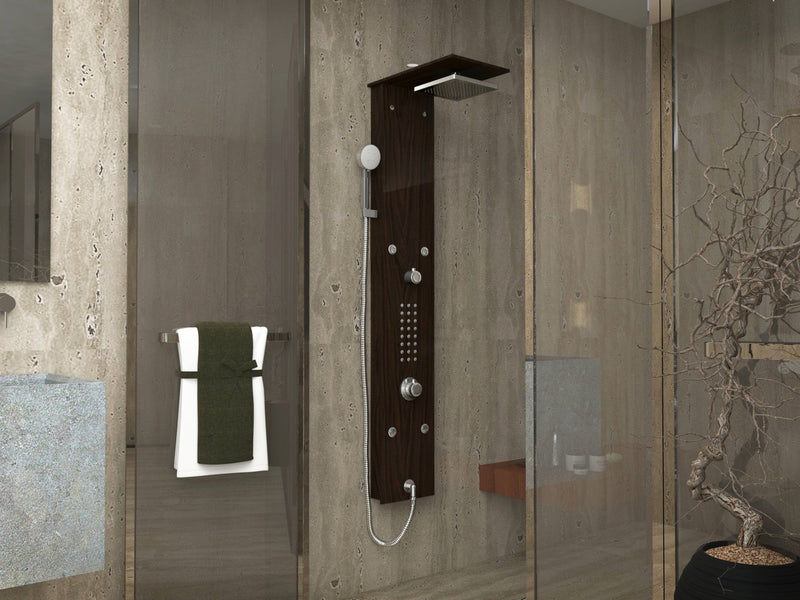

For a spa-style shower with stone or natural tile, the ANZZI SP-AZ016 Rite full body shower panel brings 28 massage jets, a rain head, thermostatic control and a 60" hand sprayer together on one 59.37" mahogany-look glass tower.
Features
28 Acu-Stream Body Jets
Twenty-eight polished chrome jets run the length of the panel and provide a relaxing yet powerful water stream to massage the body.
Heavy Rain Overhead
The 6.89" x 6.89" Heavy Rain head releases a steady, full coverage rainfall from above the column.
60" Euro-Grip Hand Sprayer
The handheld sprayer reaches up to 60", long enough to rinse while seated, bathe a child or clean the stall.
Thermostatic Mixer
A thermostatic cartridge keeps the water at your chosen temperature, important when 28 jets are running against your skin.
Diverter for Every Outlet
The polished chrome plated diverter knob switches water between the head, the jets and the hand sprayer.
Mahogany-Style Tempered Glass
The tempered deco-glass face carries a rich mahogany-style finish, giving the shower a warm wood look.
Pre-Plumbed for Retrofit
The panel arrives pre-plumbed with reinforced stainless steel hoses on standard 1/2" connections, so it attaches to existing supply outlets.
304 Stainless and Brass
RHINO ALLOY certified 304 stainless steel and solid brass valves make up the build, and the system is listed to ASME A112.18.1/CSA B125.1.
Specifications
-
Model: SP-AZ016
-
Height: 59.37"
-
Weight: 30.42 lb
-
Material: Tempered deco-glass face, 304 stainless steel, solid brass valves
-
Finish: Mahogany-style deco-glass, polished chrome jets and knobs
-
Installation: Wall mount on brackets, pre-plumbed
-
Body Jets: 28 Acu-Stream
-
Overhead Shower: Heavy Rain head, 6.89" x 6.89"
-
Hand Shower: Euro-Grip handheld sprayer, 60" reach
-
Controls: 2 knobs: thermostatic mixer and diverter
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2"
-
Certification: ASME A112.18.1/CSA B125.1
-
Series: Rite
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ016 Rite shower panel with top shower section
- Heavy Rain shower head
- 28 Acu-Stream body jets
- Euro-Grip hand sprayer with hose and holder
- Wall brackets, anchors and screws
- Owner's manual
Installation & Care
Installation
Wall mount over existing hot and cold supply outlets. Drill two holes 1" apart for the top bracket at the height you want and two more 1" apart about 45" below it for the bottom bracket, after checking that no cables or pipes run behind the drilling position. Fit the anchors and brackets, hang the panel and screw its hot and cold hoses onto the 1/2" supply lines in the wall with Teflon tape and the supplied O-rings. The top shower section aligns with its own pre-drilled holes at the top of the wall.
Care
Clean with regular soap and hot water and a non-abrasive cloth or sponge, often enough that mineral deposits do not build up on the glass, steel or jets. Test any stronger cleaner on a hidden spot first, rinse every surface with water immediately after applying it, and never let cleaner soak.
