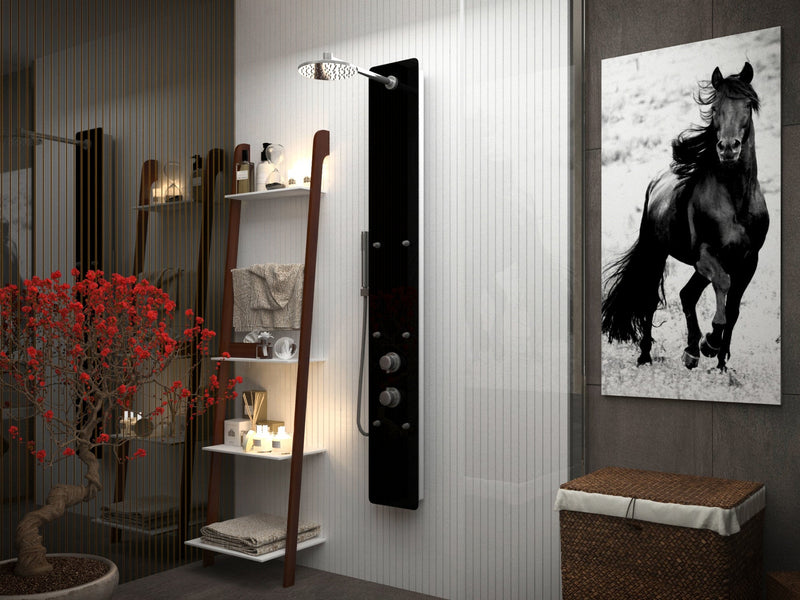

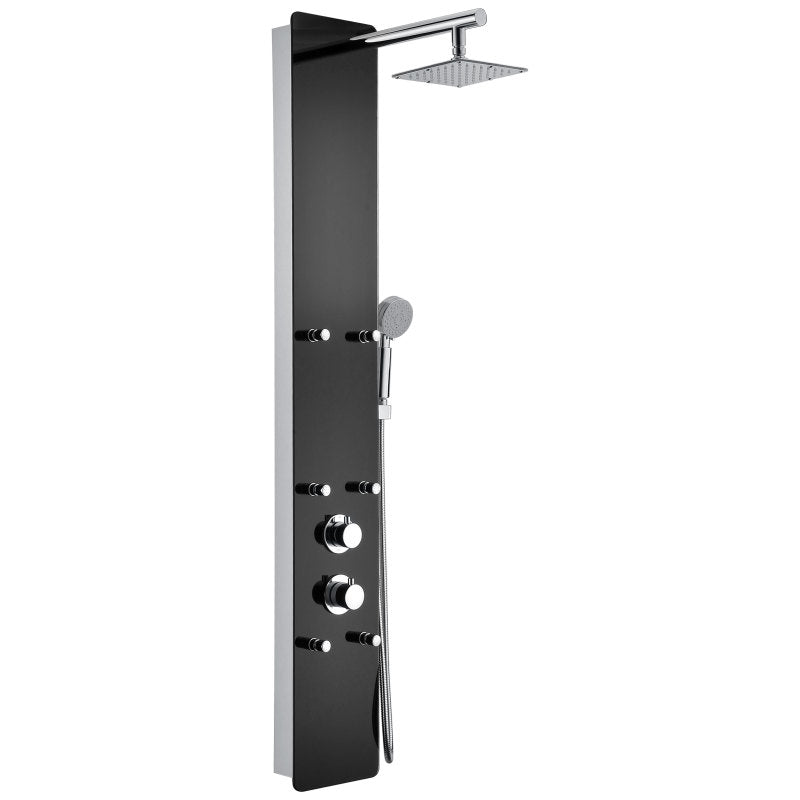

The ANZZI SP-AZ018 Melody full body shower panel system is a 59" shower tower with a black tempered deco-glass face, six body jets, a swiveling Heavy Rain overhead shower and a handheld Euro-Grip sprayer. The panel mounts on two wall brackets and connects to the 1/2" hot and cold supply lines.
Rain, Jets and a Handheld in One Tower
The 6.89" x 6.89" Heavy Rain head swivels overhead, the six Acu-Stream jets in polished chrome are fully directional, and the Euro-Grip hand sprayer on the side of the column reaches up to 60".
Two polished chrome knobs run the whole system. One is a thermostatic mixer, and the other is a diverter that moves the flow between the rain head, the body jets and the hand sprayer. The system flows at 1.8 GPM.
The panel is built around RHINO ALLOY certified 304 stainless steel with solid brass valves, and the front is a high gloss black finish protected by a Tempered Deco-Glass facing. Brass body jets, zinc knobs and stainless braided supply hoses make up the working parts, and ANZZI lists the system to ASME A112.18.1/CSA B125.1.
The ANZZI SP-AZ018 Melody full body shower panel system has six directional massage jets, thermostatic temperature control and a 60" hand sprayer.
Features
Six Directional Body Jets
ANZZI fits the panel with six polished chrome plated Acu-Stream body jets, and each jet swivels independently of the others.
Swiveling Heavy Rain Overhead
The 6.89" x 6.89" Heavy Rain head swivels overhead, releasing a steady torrent of soothing water.
60" Euro-Grip Hand Sprayer
The handheld wand mounts at the side of the column and reaches up to 60".
Thermostatic Temperature Control
A thermostatic cartridge holds the water at the temperature set on the first of the two polished chrome control knobs.
Diverter for Every Outlet
The second knob is a diverter that switches between the rain head, the six jets and the hand sprayer on the side of the 59" column.
Black Tempered Deco-Glass Face
The panel has a high gloss black finish protected by a Tempered Deco-Glass facing, set at a 90 degree modernist angle.
Stainless and Brass Build
The column is built from RHINO ALLOY certified 304 stainless steel with solid brass valves and brass body jets.
Retrofit on Standard 1/2" Supplies
Braided stainless hoses connect to standard 1/2" hot and cold supply lines, and the panel hangs on two wall brackets drilled with a 6mm bit.
Specifications
-
Model: SP-AZ018
-
Height: 59.05"
-
Weight: 24.47 lb
-
Material: Tempered deco-glass face, 304 stainless steel, solid brass valves
-
Finish: High gloss black tempered glass, polished chrome jets and knobs
-
Installation: Wall mount on two brackets
-
Body Jets: 6 Acu-Stream, directional
-
Overhead Shower: Heavy Rain swiveling head, 6.89" x 6.89"
-
Hand Shower: Euro-Grip handheld sprayer, 60" reach
-
Controls: 2 knobs: thermostatic mixer and diverter
-
Valve: Thermostatic cartridge
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2"
-
Certification: ASME A112.18.1/CSA B125.1
-
Series: Melody
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ018 Melody shower panel
- Heavy Rain swiveling shower head
- 6 Acu-Stream body jets
- Euro-Grip hand sprayer with hose and holder
- Wall brackets, anchors and screws
- Owner's manual
Installation & Care
Installation
Wall mount over existing hot and cold supply outlets. Drill two holes 1" apart for the top bracket at the height you want, and two more 1" apart about 45" below it for the bottom bracket (6mm drill), checking first that no cables or pipes run behind the drilling position. Fit the anchors, screw the brackets on, hang the panel and connect its braided hoses to the 1/2" supply lines in the wall with Teflon tape and the supplied O-rings.
Care
Clean with regular soap and hot water and a non-abrasive cloth or sponge. Test any stronger cleaner on a hidden spot first, rinse every surface with water straight after, and never let cleaner soak on the panel.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Melody is one of ANZZI's full body shower panels, alongside the MESA, Arc and Echo.
