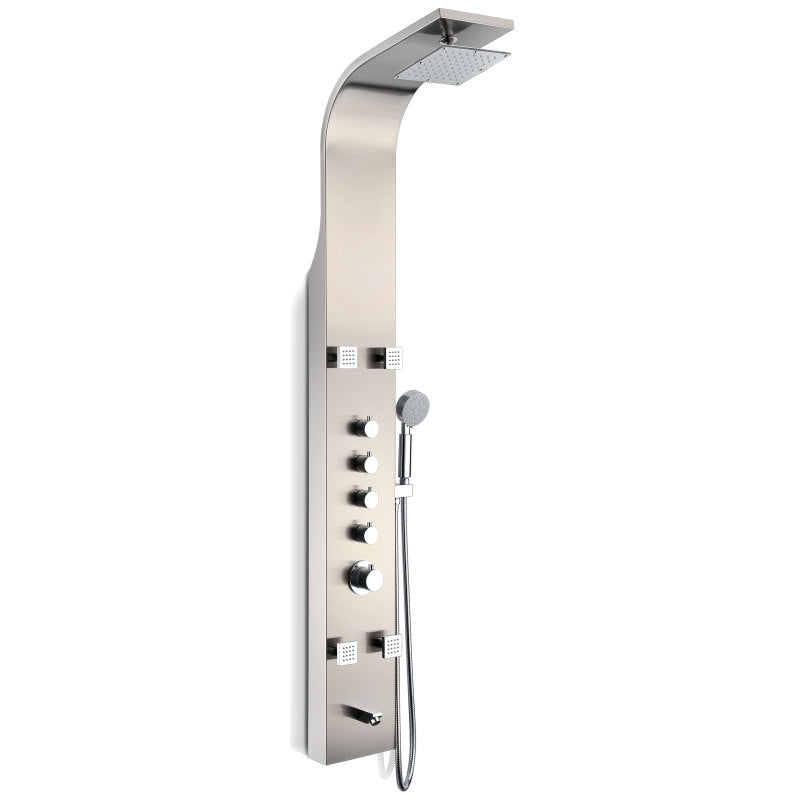

The ANZZI SP-AZ022 is an Echo 63.5" four-jet full body shower panel in brushed stainless steel, a shower tower with a swiveling Heavy Rain head, Acu-Stream body jets, the Euro-Grip handheld sprayer and a tub spout. The panel arrives pre-plumbed for an easy, non-retrofit installation.
A Shower Panel With a Tub Spout
Four swiveling body jets aim streams across the back and legs, and the 6.89" x 6.89" overhead head swivels to put the rainfall where you stand. The handheld sprayer reaches 60" on its hose, and the built-in spout at the base fills a tub or a bucket.
Five control knobs on the panel face run a thermostatic mixer and the function cartridges. Flow rate is 1.8 GPM.

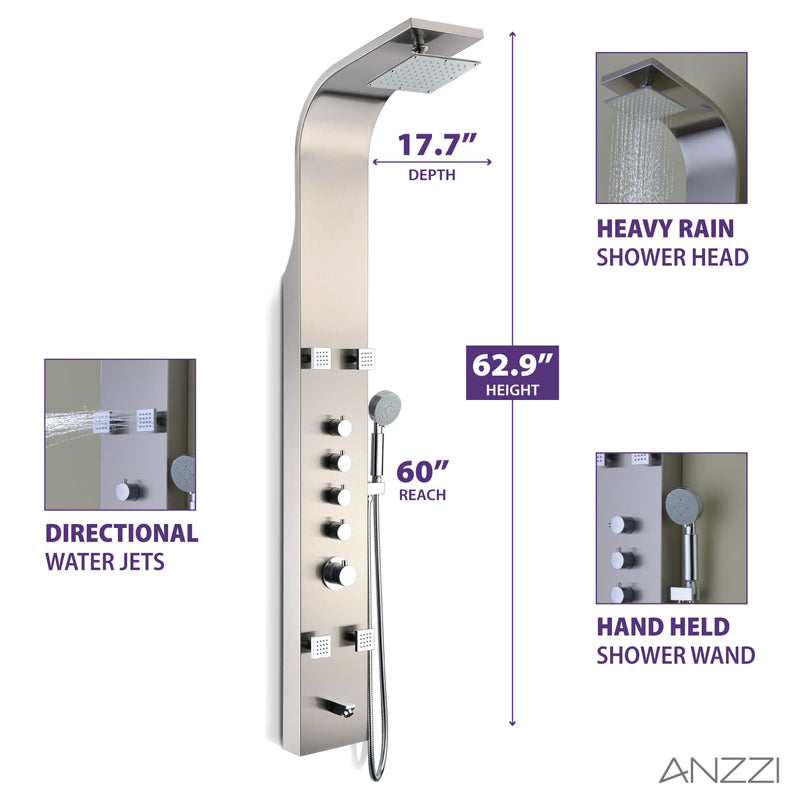

The frame is laser cut and precision shaped from brushed stainless steel. The jets, spout and valve bodies are brass, and the materials are Rhino Alloy certified. The panel stands 62.99" tall, weighs 20.72 lbs, connects through reinforced stainless steel hoses to standard 1/2" supplies and is listed to ASME A112.18.1/CSA B125.1.
Hanging It Over the Existing Supplies
The panel hangs on two brackets. Check the wall for hidden cables and pipes first, drill the two top bracket holes 1" apart with a 6mm bit at the height you want, then drill the two bottom bracket holes 1" apart below them. Wall anchors take the screws, the hot and cold hoses screw onto the 1/2" supply lines in the wall, and the panel lifts onto its brackets. Because the spout is on the panel itself, mount it where the spout sits over the tub.
The parts list shows what is behind the brushed face: a stainless steel body and head, brass body jets, spout and function cartridges, zinc knobs and an ABS hand shower, with a flow restrictor in the line. The 1.8 GPM rating applies with the reducer removed.
Hard edged, 90° modernist angles are laser cut in stainless steel and highlighted by a brushed finish.
The recommended tools are a screwdriver, channel locks, an adjustable wrench, an Allen key, goggles and Teflon tape, and every instruction should be read through before the work starts.
For a tub and shower combination, the ANZZI SP-AZ022 63.5" full body shower panel adds a tub spout to four jets, a rain head and a 60" hand sprayer on the same brushed steel column.
Features
Four Swiveling Body Jets
Four swiveling Acu-Stream body jets direct soothing streams that massage the body, below the Heavy Rain overhead showerhead.
Swiveling Heavy Rain Head
The 6.89" x 6.89" square Heavy Rain overhead head swivels on its arm above the four body jets.
Built-In Tub Spout
A brass spout at the base of the panel sits alongside the shower head, body jets and hand shower in the parts list.
Euro-Grip Sprayer, 60" Reach
The Euro-Grip handheld sprayer has a 60" reach on its hose, alongside the Heavy Rain head and four body jets.
Thermostatic Mixer
A thermostatic cartridge holds the set temperature as you switch between outlets with the five control knobs.
Pre-Plumbed, Non-Retrofit Hookup
The panel comes pre-plumbed and connects through reinforced stainless steel hoses to standard 1/2" supplies, so there is no in-wall valve to buy or install.
1.8 GPM Flow
The panel runs at 1.8 GPM with the reducer removed, for the rain head, body jets, spout and hand sprayer.
Specifications
-
Model: SP-AZ022
-
Height: 62.99"
-
Weight: 20.72 lbs
-
Material: Brushed stainless steel body, brass jets, spout and valve bodies, Rhino Alloy certified
-
Finish: Brushed stainless steel
-
Installation: Wall mount on two brackets, pre-plumbed
-
Shower Head: 6.89" x 6.89" Heavy Rain, swiveling
-
Body Jets: 4 Acu-Stream swiveling jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Tub Spout: Yes, brass
-
Controls: 5 knobs, thermostatic cartridge
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Certifications: ASME A112.18.1/CSA B125.1
-
Series: Echo
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ022 Echo full body shower panel
- Heavy Rain shower head
- Four Acu-Stream body jets
- Tub spout
- Euro-Grip hand shower with hose and holder
- Owner's manual
Installation & Care
Installation
Wall mount over the finished shower wall. Check the wall for hidden cables and pipes, then drill two holes 1" apart for the top bracket at the height you want and two holes 1" apart for the bottom bracket below it, using a 6 mm drill and the supplied wall anchors. Screw the panel's hot and cold hoses onto 1/2" supply connections in the wall, then hang the panel on the brackets and fit the shower head and hand shower. Teflon tape, channel locks and an adjustable wrench are recommended.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge, which stops mineral and soap build-up before it hardens. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces.
