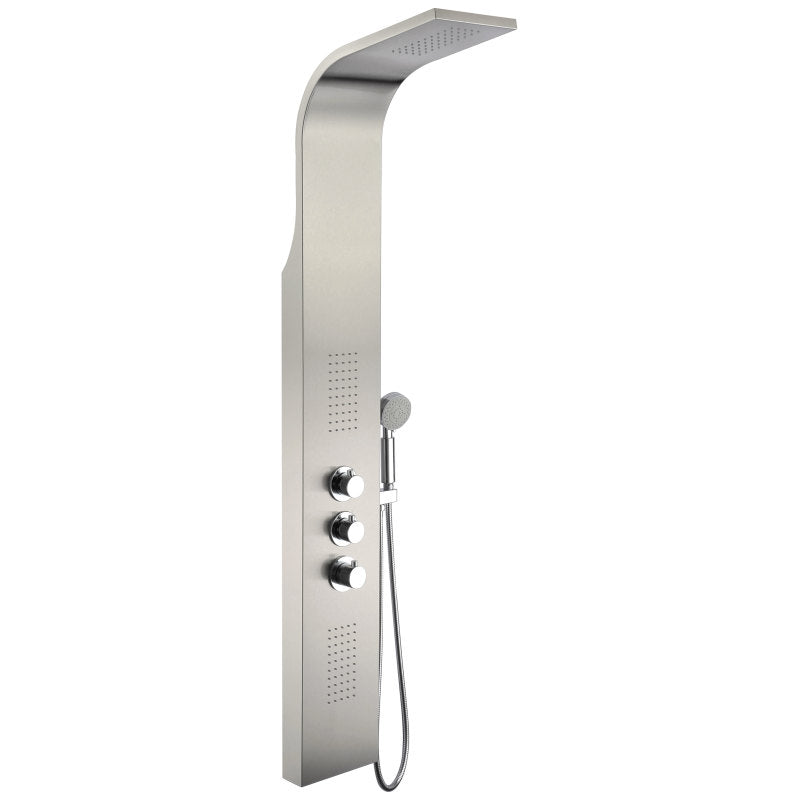

The ANZZI SP-AZ024 is an Arc series 64" full body shower panel in brushed stainless steel, a single wall-mounted tower that brings a rain shower, two body jets and a handheld sprayer to an ordinary shower. The panel is wall mounted and retrofits to existing shower plumbing: it hangs on brackets and connects to the existing hot and cold supply lines.
See the Temperature Before You Step In

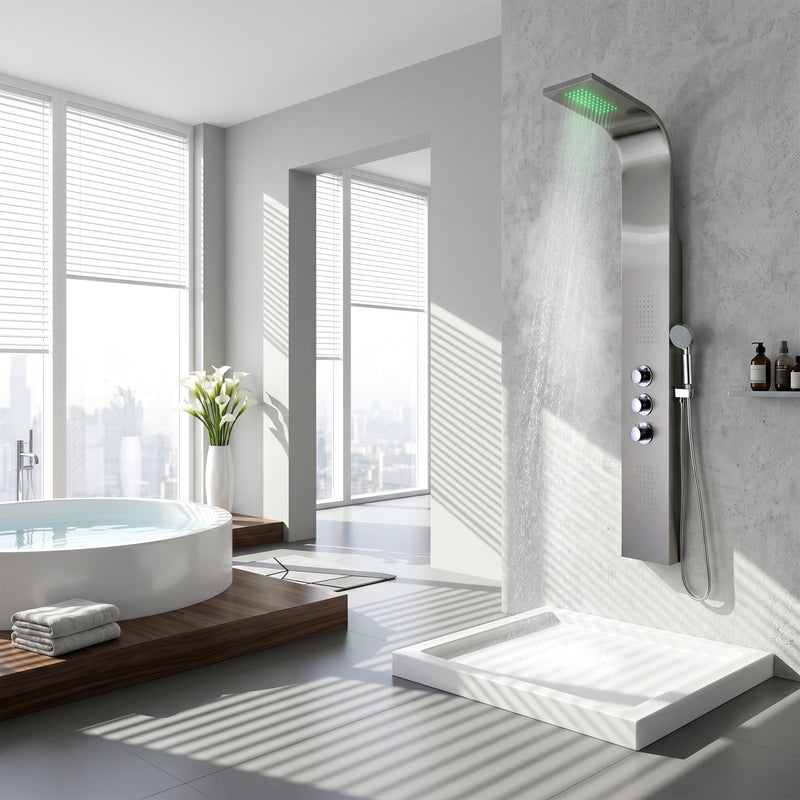

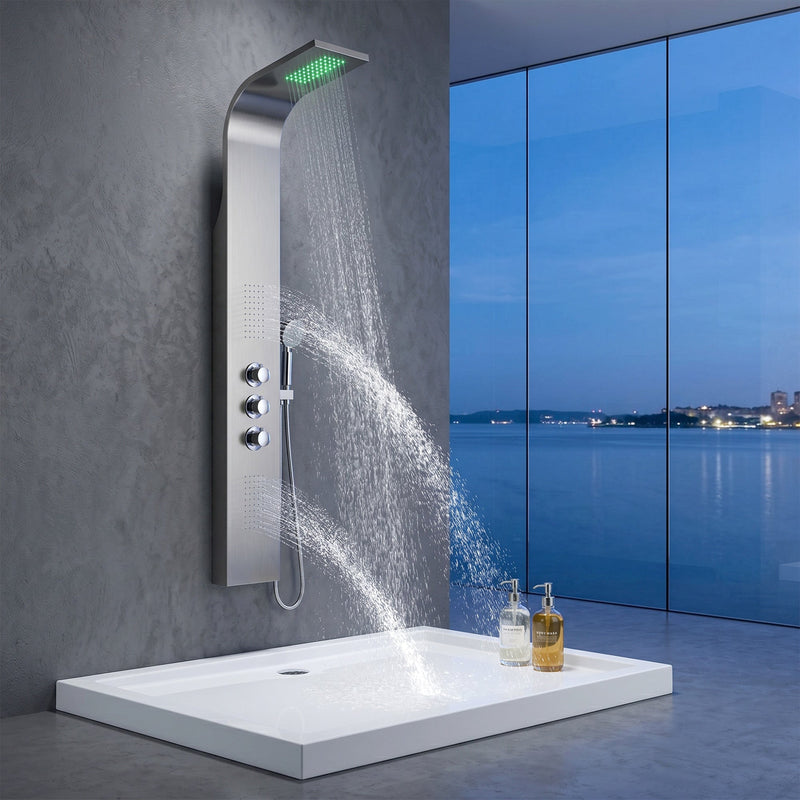

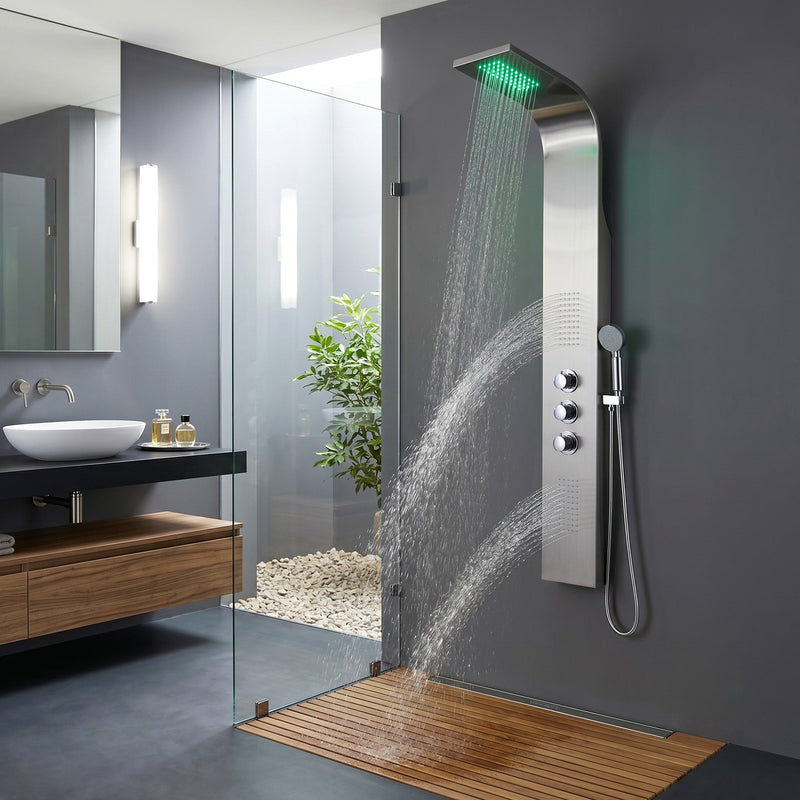

At the top, a fixed Heavy Rain showerhead delivers a wide overhead rain flow, and its hydro-powered Thermal Sensitive Lighting visually translates the water temperature into color. Lower on the panel, two Acu-Stream body jets in polished chrome aim a strong stream for a massaging rinse.
The Euro-Grip handheld sprayer, also polished chrome, has a 60" reach. A diverter knob lets you choose which outlets run, and a thermostatic control holds the temperature you set. The panel flows at 1.8 GPM.
The frame is laser cut and precision shaped from RHINO ALLOY certified 304 stainless steel with a brushed finish, and the valves are solid brass. The panel is 62.99" tall, weighs 18.74 lb, and ANZZI's install guide lists it to ASME A112.18.1/CSA B125.1.
Hangs on Two Brackets
Installation is a bracket job rather than a wall rebuild. Check that no hidden cables or pipes sit behind the drilling spot, drill two holes 1" apart with a 6mm bit for the top bracket at the height you want, and two more about 45" lower for the bottom bracket. Fit the wall anchors and brackets, attach the hand shower holder and hose, connect the panel's hot and cold hoses to the supply lines in the wall, then hang the panel on the brackets.
The materials are chosen for a wet room: the body and showerhead are stainless steel, the body jets and thermostatic faucet are brass, and the hoses are stainless braided or flexible stainless. ANZZI's care guide asks for regular soap and hot water on a non-abrasive cloth, testing any stronger cleaner on a hidden spot first and rinsing it off right away.
Flexible reinforced stainless steel supply hoses with standard 1/2" connections come pre-plumbed on the panel, for a straightforward, non-retrofit installation.
For a shower that changes with the person using it, the SP-AZ024 is an ANZZI 64" stainless steel shower panel system with a temperature-lit Heavy Rain head, two Acu-Stream jets, a thermostatic mixer and a 60" hand sprayer in one pre-plumbed tower.
Features
Heavy Rain Overhead Shower
The fixed Heavy Rain showerhead gives a broad overhead rain flow, turning a plain wall outlet into a full rainfall shower.
Thermal Sensitive Lighting
Hydro-powered Thermal Sensitive Lighting in the Heavy Rain showerhead visually translates the water temperature into color.
Two Acu-Stream Body Jets
Two fixed polished chrome body jets direct a powerful stream at the body for a massaging rinse after a workout or a long day.
60" Euro-Grip Hand Sprayer
The Euro-Grip free range hand sprayer comes as a handheld wand with a 60" hose.
Thermostatic and Diverter Control
One knob holds the set temperature and the diverter selects rain head, jets or hand sprayer, so every shower can be set up the way you like it.
304 Stainless Steel Frame
The panel is laser cut and precision shaped from RHINO ALLOY certified 304 stainless steel with solid brass valves.
Pre-Plumbed, 1/2" Connections
Reinforced stainless steel hoses with standard 1/2" connections are already plumbed on the panel, which shortens installation to mounting and two connections.
Specifications
-
Model: SP-AZ024
-
Height: 62.99" (64" nominal)
-
Weight: 18.74 lb
-
Material: RHINO ALLOY certified 304 stainless steel, solid brass valves
-
Finish: Brushed Stainless Steel
-
Installation: Wall mount on brackets, pre-plumbed
-
Showerhead: Heavy Rain fixed overhead, Thermal Sensitive Lighting, 2.99" x 6.535"
-
Body Jets: 2 Acu-Stream, polished chrome
-
Hand Shower: Euro-Grip, 60" reach, polished chrome
-
Controls: Thermostatic mixer and diverter
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2" stainless steel braided hoses
-
Certifications: ASME A112.18.1/CSA B125.1
-
Series: Arc
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ024 Arc full body shower panel
- Heavy Rain Thermal Sensitive Lighting shower head
- Two Acu-Stream body massage jets
- Euro-Grip hand sprayer with hose and holder
- Mounting brackets with wall anchors and screws
- Owner's manual
Installation & Care
Installation
Wall mounted over existing hot and cold shower supply lines. Before drilling, check for hidden cables or pipes. Drill two holes 1" apart for the top bracket at the height you want, and two holes 1" apart for the bottom bracket about 45" below it (6 mm bit), fit the anchors and screw the brackets on. Connect the panel's hot and cold hoses to the supply lines in the wall, hang the panel on the brackets, then fit the hand shower holder, hose and wand with all O-rings in place. Tools: screwdriver, channel locks, adjustable wrench, Allen key, Teflon tape and goggles.
Care
ANZZI recommends regular soap and hot water with a non-abrasive cloth or sponge to keep deposits from building up. Test any stronger cleaner on an inconspicuous area first, wipe and rinse all surfaces completely right after applying it, and do not allow the cleaner to soak. Rinse and dry any overspray on nearby surfaces.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Arc panel is one of ANZZI's full body shower panel towers, alongside the Echo, Melody and Mesa systems, and the Arc name also carries a single hole bathroom faucet (L-AZ009) in polished chrome.
