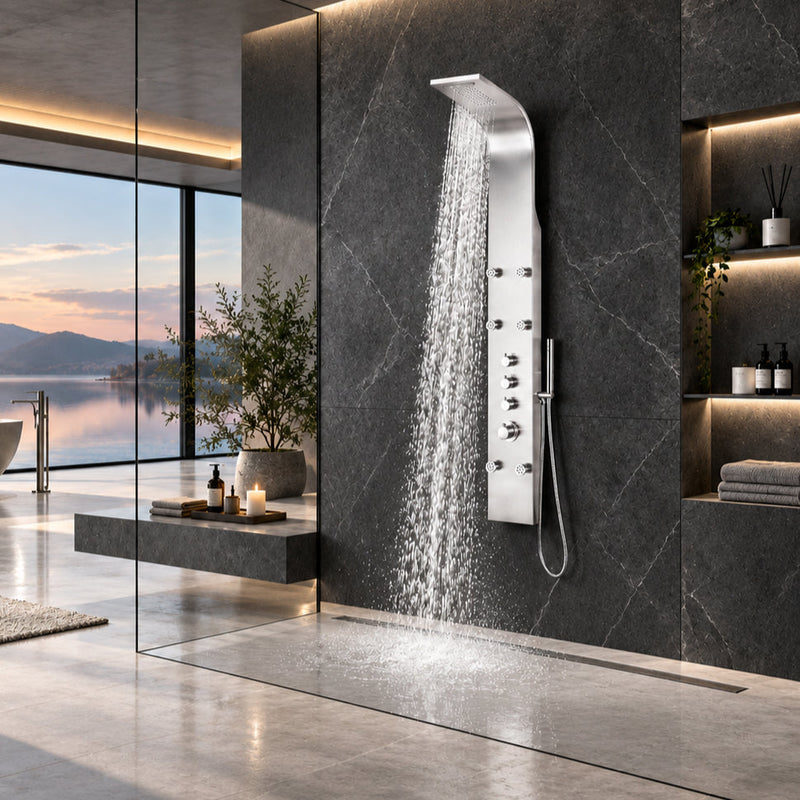

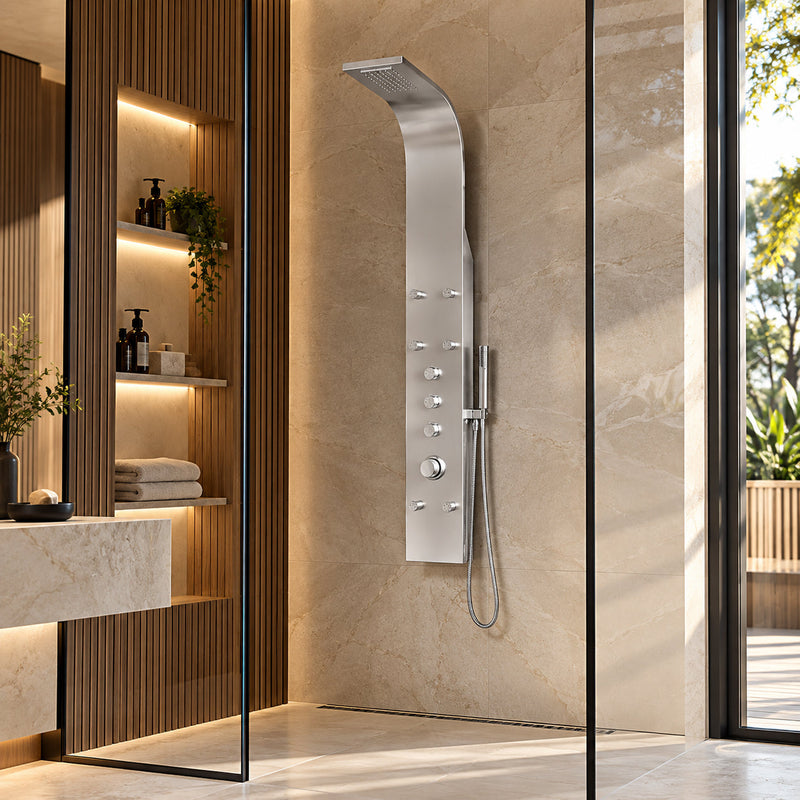

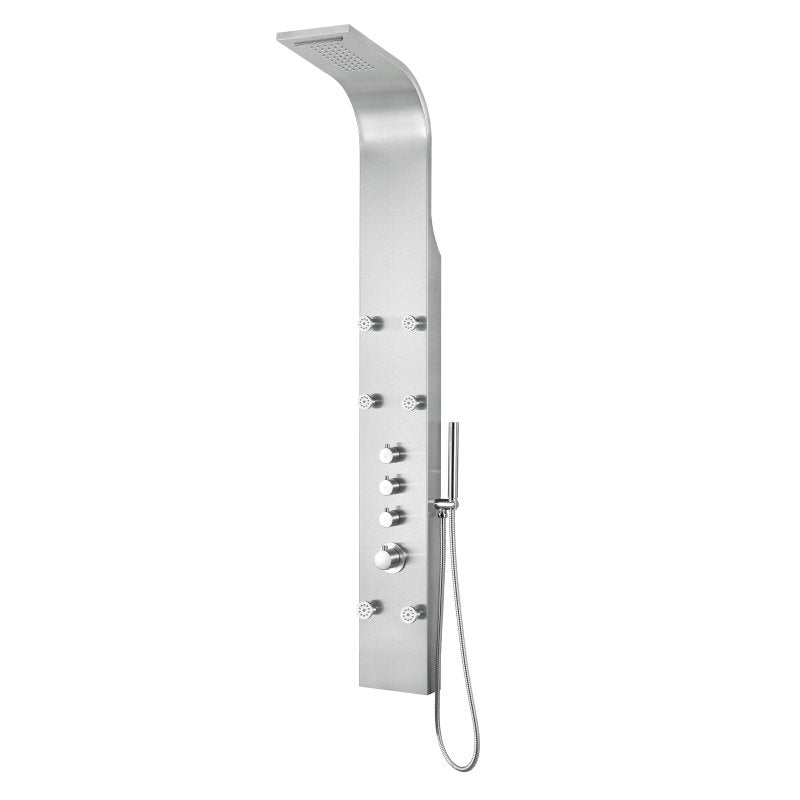

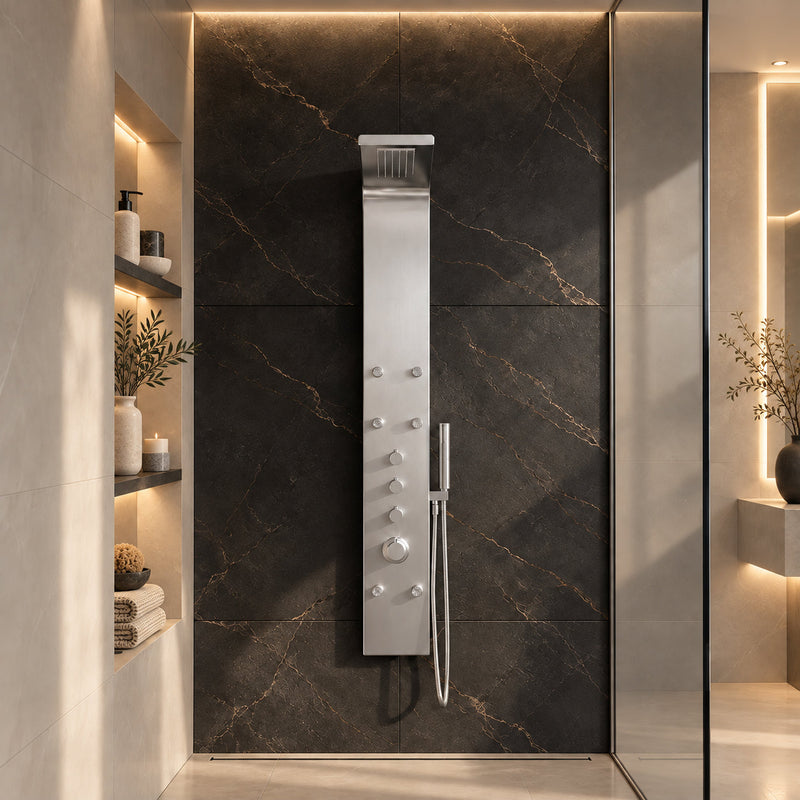

The ANZZI SP-AZ026 is a Fontan 64" six-jet full body shower panel system in brushed stainless steel, a shower tower that pairs a Heavy Rain overhead head and waterfall with six Acu-Stream body jets and the Euro-Grip handheld spray wand. The panel is pre-plumbed, hangs on wall brackets and connects to the existing hot and cold water lines.
Six Jets, Rain and Waterfall
Six directional body jets in polished chrome run the length of the column, providing a relaxing yet powerful massage, while the fixed overhead head releases a steady rainfall or a cascading waterfall. The spray wand rides on the side of the column and reaches 60" on its hose.
Four chrome knobs give independent control: a thermostatic mixer holds the temperature you set, and the diverter and on and off cartridges choose which outlets run. Flow rate is 1.8 GPM.
The body is laser cut from brushed 304 stainless steel with solid brass valves, brass body jets and a brass hand shower and holder, and the construction is Rhino Alloy certified. The panel stands 62.99" tall, weighs 21.83 lbs, connects through reinforced stainless steel hoses to 1/2" supplies and is listed to ASME A112.18.1/CSA B125.1.
Hanging the Panel
The Fontan hangs on two stainless steel brackets. ANZZI's guide has you check the wall for hidden cables and pipes, drill the two top bracket holes 1" apart with a 6mm bit at the height you choose, and drill the two bottom bracket holes 1" apart about 45" below. Wall anchors take the screws, the hot and cold hoses screw onto the 1/2" supply lines in the wall, and the panel lifts onto its brackets. At 62.99" tall, measure the wall before choosing the bracket height.
The parts list shows the build behind the brushed face: a stainless steel body, brass body jets, faucet and hand shower holder, zinc knobs and handles, and ABS thermostatic, function and on and close cartridges, with an ABS rain head that includes the waterfall.
The brushed stainless steel finish covers a modern, laser-cut body built to last.
The ANZZI SP-AZ026 64" six-jet shower panel combines six Acu-Stream body jets with thermostatic control, a rainfall and waterfall head and a 60" spray wand on one column.
Features
Six Directional Body Jets
Six Acu-Stream jets in polished chrome sit on the brushed 304 stainless steel face of the panel, with brass jet bodies.
Rainfall and Waterfall Head
The fixed 2.99" x 6.54" overhead head gives a Heavy Rain cascade or a waterfall, two overhead experiences from one outlet.
Thermostatic Temperature Hold
The thermostatic cartridge mixes the water to the temperature you set, while the diverter and on and off cartridges choose the outlets.
Euro-Grip Spray Wand, 60" Reach
A brass hand shower in polished chrome reaches 60" on its hose for free-range rinsing.
Pre-Plumbed for Existing Lines
The panel arrives pre-plumbed and connects to the existing water lines through stainless steel hoses with 1/2" connections.
1.8 GPM Flow
The panel flows at 1.8 GPM and connects through flexible reinforced stainless steel hoses with a standard 0.5" connection.
Specifications
-
Model: SP-AZ026
-
Height: 62.99"
-
Weight: 21.83 lbs
-
Material: Brushed 304 stainless steel body, solid brass valves, brass jets and hand shower
-
Finish: Brushed stainless steel, polished chrome jets and wand
-
Installation: Wall mount on brackets, pre-plumbed
-
Shower Head: 2.99" x 6.54" Heavy Rain with waterfall, fixed
-
Body Jets: 6 Acu-Stream directional jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Controls: 4 controls: thermostatic mixer, diverter and on and off controls
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Certifications: ASME A112.18.1/CSA B125.1
-
Series: Fontan
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ026 Fontan full body shower panel
- Heavy Rain shower head
- Six Acu-Stream body massage jets
- Euro-Grip hand sprayer with hose and holder
- Owner's manual
Installation & Care
Installation
Wall mount over the finished shower wall. Check the wall for hidden cables and pipes, then drill two holes 1" apart for the top bracket at the height you want and two holes 1" apart for the bottom bracket below it, using a 6 mm drill and the supplied wall anchors. Screw the panel's hot and cold hoses onto 1/2" supply connections in the wall, then hang the panel on the brackets and fit the shower head and hand shower. Teflon tape, channel locks and an adjustable wrench are recommended.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Fontan is the six-jet stainless steel tower in ANZZI's shower panel range, alongside two-jet models such as the Expanse and Field and the four-jet Echo with tub spout.
