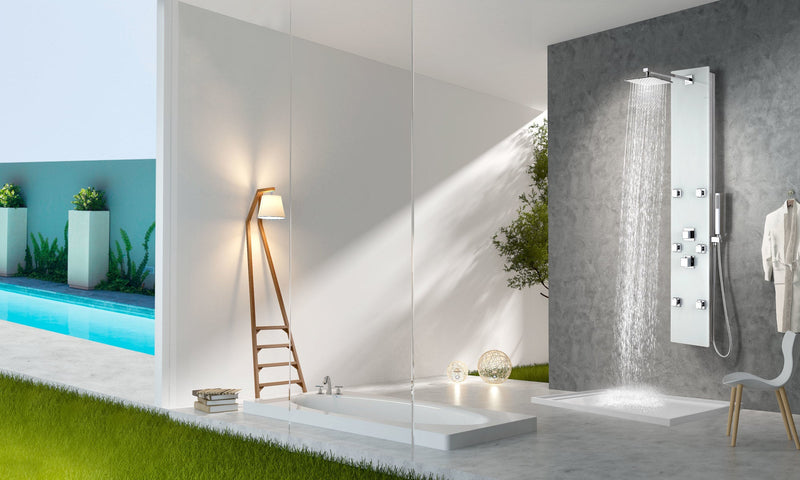

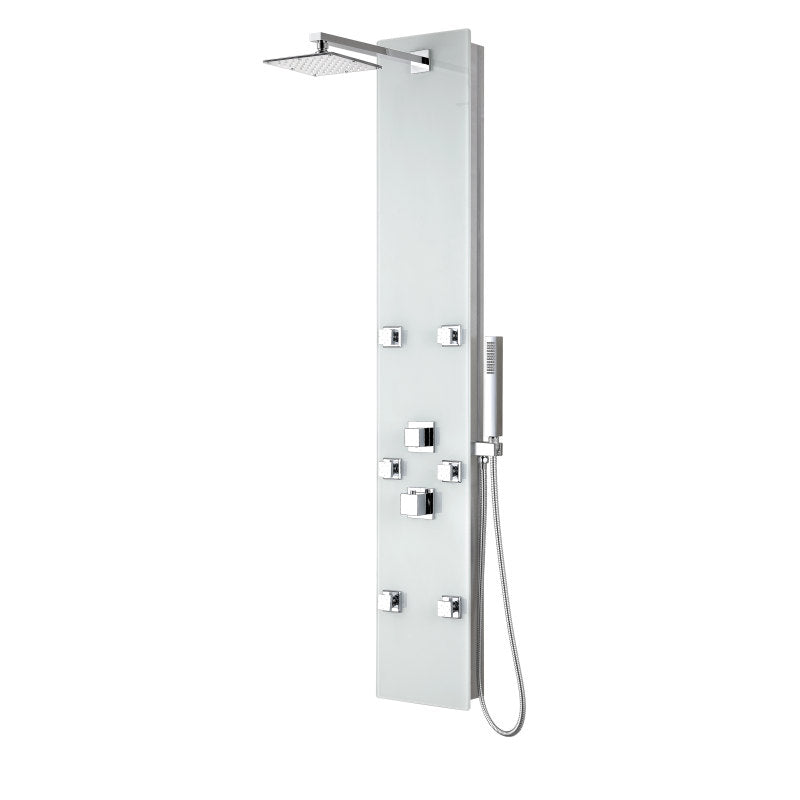

The ANZZI SP-AZ029 Rhaus full body shower panel is a 60" class shower tower with a white tempered deco-glass body, six directional body jets, a swiveling Heavy Rain overhead shower and a handheld Euro-Grip sprayer. It is a full body shower panel with a white tempered glass body on a 59.06" tower.
Six Directional Jets
Six Acu-Stream jets in polished chrome are directional. Overhead, the 6.89" x 6.89" Heavy Rain head swivels, and the Euro-Grip hand sprayer at the side of the column reaches up to 60".
Two chrome controls run the panel: a thermostatic mixer that holds your temperature and a diverter that switches between the head, jets and sprayer. The panel ships with a GPM reducer for 1.8 GPM, and where local code allows, the manual shows how to remove it for a 2.5 GPM flow.
ANZZI builds the Rhaus with RHINO ALLOY solid brass valves, brass body jets and a tempered deco-glass front, connected by flexible reinforced stainless steel hoses on standard 1/2" connections, and lists it to ASME A112.18.1/CSA B125.1. It stands 59.06" tall and weighs 30.20 lb.
Pre-Plumbed and Bracket Mounted
The panel arrives pre-plumbed, so installation stays on the surface of the wall. The top bracket takes two holes drilled 1" apart at the height you want and the bottom bracket two more 1" apart below it, after checking that no cables or pipes run behind the drilling position. The panel hangs on the brackets and its hot and cold hoses screw onto the 1/2" supply lines with Teflon tape and the supplied O-rings. ANZZI asks you to remove the GPM reducer only where local code has no flow restriction.
The panel connects to the existing 1/2" hot and cold supply lines.
Looking after the panel is simple: regular soap and hot water on a non-abrasive cloth or sponge keeps the glass and chrome free of build-up. ANZZI's care guide asks you to test any stronger cleaner on an inconspicuous area first, rinse every surface right after cleaning, and never let a cleaner soak.
ANZZI's parts list details the materials: a stainless steel shower head and fixing bar, a brass arm bar, flange, faucet bodies and plate covers, zinc knob and handle, ABS cartridges, a PVC back body and hand shower hose, and stainless steel braided hoses. The bracket holes are drilled with a 6 mm bit and take the supplied wall anchors.
The ANZZI SP-AZ029 Rhaus full body shower panel brings six directional massage jets, thermostatic control, a swiveling rain head and a 60" hand sprayer together on a 59.06" white glass tower.
Features
Six Directional Body Jets
ANZZI fits the panel with six Acu-Stream body jets, and each jet swivels independently of the others.
Swiveling Heavy Rain Head
The 6.89" x 6.89" Heavy Rain head swivels overhead and releases a steady torrent of water from above.
60" Euro-Grip Hand Sprayer
The polished chrome Euro-Grip handheld sprayer sits at the column's flank with a free reign reach of up to 60".
Thermostatic Mixer
The panel is controlled through two chrome controls: a thermostatic control with a thermostatic cartridge, and a diverter.
1.8 GPM, 2.5 GPM Option
A reducer sets the flow at 1.8 GPM for water conservation; where local code permits, removing it gives 2.5 GPM for a stronger shower.
White Tempered Deco-Glass
The panel body is white tempered glass, and the tower stands 59.06" tall from top to bottom.
Pre-Plumbed, 1/2" Hoses
The panel arrives pre-plumbed with reinforced stainless steel hoses on standard 1/2" connections, attaching to the existing supply outlets.
Brass Valves and Jets
RHINO ALLOY solid brass valves and brass body jets are fitted, and the system is listed to ASME A112.18.1/CSA B125.1.
Specifications
-
Model: SP-AZ029
-
Height: 59.06"
-
Weight: 30.20 lb
-
Material: Tempered deco-glass body, solid brass valves
-
Finish: White tempered glass, polished chrome jets and controls
-
Installation: Wall mount on two brackets, pre-plumbed
-
Body Jets: 6 Acu-Stream, directional
-
Overhead Shower: Heavy Rain swiveling head, 6.89" x 6.89"
-
Hand Shower: Euro-Grip handheld sprayer, 60" reach
-
Controls: 2: thermostatic mixer and diverter
-
Flow Rate: 1.8 GPM with reducer, 2.5 GPM with reducer removed
-
Supply Connection: 1/2"
-
Certification: ASME A112.18.1/CSA B125.1
-
Series: Rhaus
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ029 Rhaus shower panel
- Heavy Rain shower head
- 6 Acu-Stream body jets
- Euro-Grip hand sprayer with hose and holder
- Wall brackets, anchors and screws
- Owner's manual
Installation & Care
Installation
Wall mount over existing hot and cold supply outlets. Drill two holes 1" apart for the top bracket at the height you want and two more 1" apart below it for the bottom bracket, after checking that no cables or pipes run behind the drilling position. Fit the anchors and brackets, hang the panel and screw its hot and cold hoses onto the 1/2" supply lines in the wall with Teflon tape and the supplied O-rings. The GPM reducer is installed for water conservation; remove it only where local code has no flow restriction.
Care
ANZZI recommends regular soap and hot water with a non-abrasive cloth or sponge, cleaned often enough that mineral deposits do not build up on the glass, steel or jets. Test any stronger cleaner on a hidden spot first, rinse every surface with water immediately after applying it, and never let cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Rhaus is the white-glass panel in ANZZI's full body shower range, which also includes the black-glass Melody, the mahogany-style Monsoon, Pure and Rite, and the stainless MESA and Niagara.
