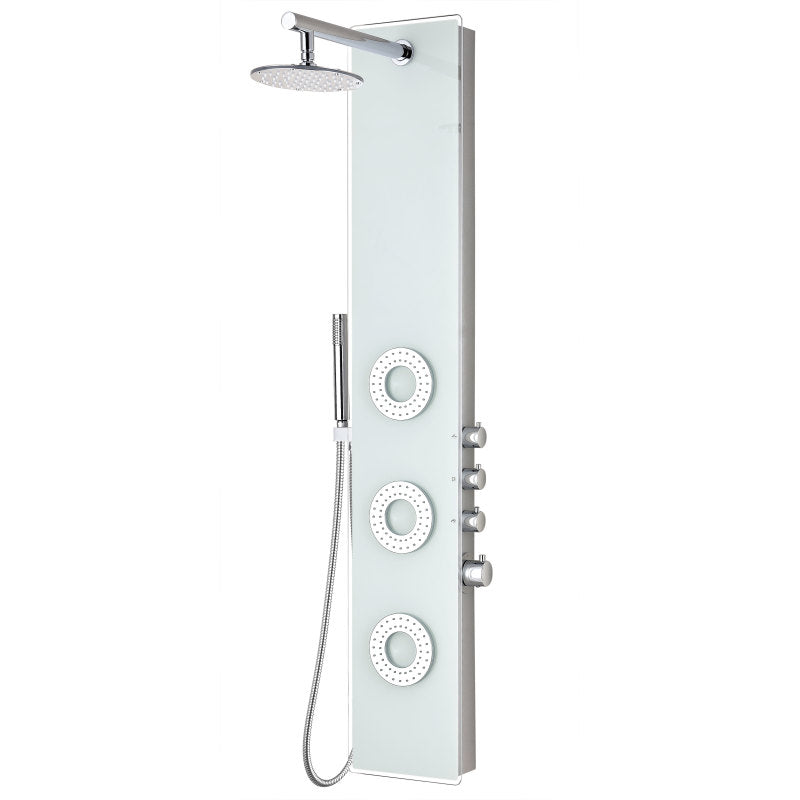

The ANZZI SP-AZ031 is a Lynn Series 58" three-jet full body shower panel in white, a tempered Deco-Glass shower tower with a swiveling Heavy Rain overhead head, three Acu-Stream body jets and the Euro-Grip handheld sprayer. It arrives pre-plumbed and hangs on two stainless steel brackets on the wall.
Three Jets and a Swiveling Rain Head
Three body jets in polished chrome provide a relaxing yet powerful water stream to massage the body, while the 7.68" overhead head swivels and releases a steady rainfall. The handheld sprayer stays at the column's flank and reaches 60" on its hose.
Four chrome controls run the system: a thermostatic cartridge holds the temperature you set, and the diverter and on and off controls choose the outlets. The system flows at 2.5 GPM.
The face is white tempered glass over an aluminum back body, with a stainless steel head, brass arm, flanges and faucet body and solid brass valves; the materials are Rhino Alloy certified. The panel stands 57.07" tall, weighs 26.01 lbs and connects through reinforced stainless steel hoses to standard 1/2" supplies.
Hanging the Panel
The Lynn hangs on two stainless steel brackets. ANZZI's guide has you check the wall for hidden cables and pipes, drill the two top bracket holes 1" apart with a 6mm bit at the height you choose, and drill the two bottom bracket holes 1" apart about 45" below. Wall anchors take the screws, the hot and cold hoses screw onto the 1/2" supply lines in the wall, and the panel lifts onto its brackets. The panel weighs 26.01 lbs. The same guide covers ANZZI's model SP-AZ8090.
The Lynn flows at 2.5 GPM. The parts list shows brass on/close and faucet bodies, zinc knobs and handles, and ABS jets, hand shower and thermostatic cartridge behind the glass.
The face is white tempered Deco-Glass with four chrome controls.
The recommended tools are a screwdriver, channel locks, an adjustable wrench, an Allen key, goggles and Teflon tape. The hand shower holder fits through a pre-drilled hole in the panel with its O-rings in place to prevent leaks, and the wand hose connects to the holder once the panel hangs on its brackets. For cleaning, rinse and wipe every surface completely with water straight after applying any cleaner, rinse and dry overspray on nearby surfaces, and never let a cleaner soak.
The ANZZI SP-AZ031 58" Lynn full body shower panel combines three body jets, a swiveling rain head, a 60" hand sprayer and thermostatic control in one shower tower.
Features
White Tempered Glass Face
The white tempered Deco-Glass body holds the four chrome controls, three body jets and the Heavy Rain head.
Three Acu-Stream Body Jets
Three Acu-Stream body jets in polished chrome provide a relaxing yet powerful water stream to massage the body.
Swiveling 7.68" Heavy Rain Head
The 7.68" overhead shower swivels and features Heavy Rain water pressure technology, releasing a steady torrent from above.
Euro-Grip Sprayer, 60" Reach
The polished chrome Euro-Grip free range hand sprayer has a 60" reach on its hose, beside the three jets.
Thermostatic Control
A thermostatic cartridge holds the set temperature as you switch outlets, using one of the four chrome controls.
Four Independent Controls
Four chrome thermostatic and diverter control knobs run the system, separating temperature from outlet selection on the panel face.
Pre-Plumbed Installation
The panel arrives pre-plumbed and connects with reinforced stainless steel hoses to standard 1/2" supplies, hanging on two wall brackets.
Specifications
-
Model: SP-AZ031
-
Height: 57.07"
-
Weight: 26.01 lbs
-
Material: Tempered glass face, aluminum back body, brass arm, flanges and faucet, solid brass valves, stainless steel head
-
Finish: White tempered glass, polished chrome jets and sprayer
-
Installation: Wall mount on brackets, pre-plumbed
-
Shower Head: 7.68" diameter Heavy Rain, swiveling
-
Body Jets: 3 Acu-Stream jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Controls: 4: thermostatic, diverter and on and off controls
-
Flow Rate: 2.5 GPM
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Series: Lynn
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ031 Lynn full body shower panel
- Heavy Rain shower head
- Three Acu-Stream body massage jets
- Euro-Grip hand sprayer with hose
- Owner's manual
Installation & Care
Installation
Wall mount over the finished shower wall. Check the wall for hidden cables and pipes, then drill two holes 1" apart for the top bracket at the height you want and two holes 1" apart for the bottom bracket below it, using a 6 mm drill and the supplied wall anchors. Screw the panel's hot and cold hoses onto 1/2" supply connections in the wall, then hang the panel on the brackets and fit the shower head and hand shower. Teflon tape, channel locks and an adjustable wrench are recommended.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces. Dry the glass face with a soft cloth to prevent streaks.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Lynn shares its install guide with ANZZI's SP-AZ8090. Other glass-face panels include the black Llano (SP-AZ047) and the white six-jet Donna (SP-AZ028).
