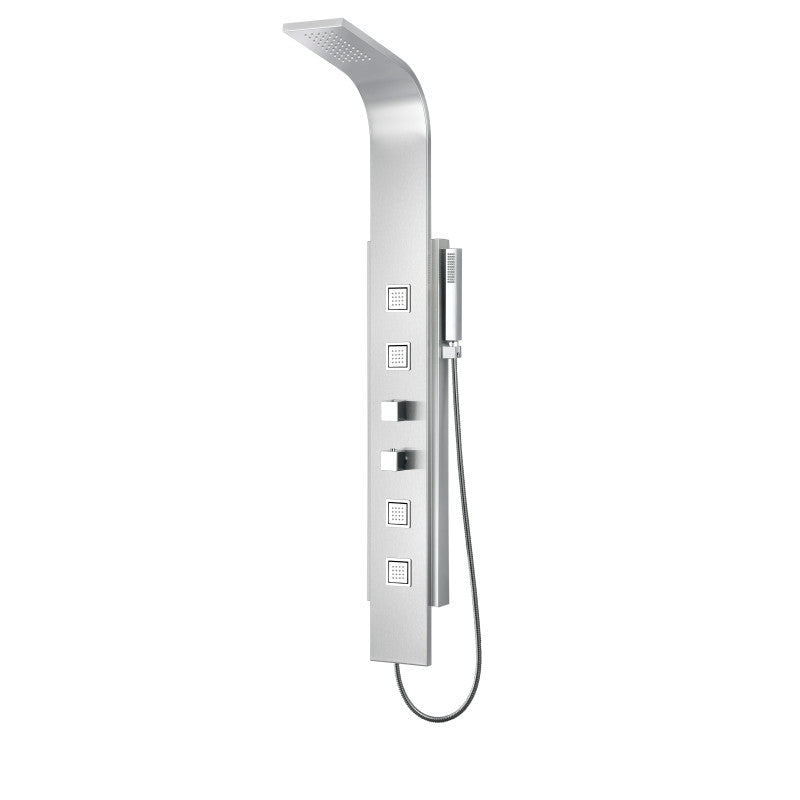

The ANZZI SP-AZ035 is a VISOR Series 60" full body shower panel system in brushed steel, a laser cut brushed 304 stainless steel tower with a Heavy Rain overhead shower, four Acu-Stream body jets and ANZZI's Euro-Grip hand sprayer. It suits anyone who wants a spa-style, multi-function shower in an existing stall without opening the wall: the panel hangs on brackets and connects to the supply lines already there.
Four Jets and a Rain Head
The fixed crested Heavy Rain showerhead (2.99" x 6.535") gives a full rinse from above, and four directional Acu-Stream vector jets provide a powerful water stream to massage the body. The Euro-Grip hand sprayer lifts off on a free reign 60" reach. Flow is 1.8 GPM.
Two controls run it all: a thermostatic control for the water and a diverter that sends it to the head, the jets or the hand sprayer. The diverter gives a fully customizable shower experience.
Hangs on the Wall
The body is brushed 304 stainless steel, with brass body jets and faucet, zinc knobs and handle, an ABS showerhead and hand shower, an ABS thermostatic cartridge and stainless braided and flexible hoses. ANZZI states the body is RHINO ALLOY certified and solid brass inside the valve. The panel weighs 16.72 lbs.
The hand shower is fitted before the tower is hung: the wand holder goes through the pre-drilled hole on the panel, the hand shower's supply hose installs onto the holder with all O-rings in place to prevent leakage, and the wand then connects to its hose.
Mounting uses two brackets rather than an in-wall valve: first check that no hidden cables or pipes run where you will drill, then make two holes 1" apart for the top bracket at the height you want and two more 1" apart about 45" below for the bottom bracket, using a 6mm drill and the wall anchors. The reinforced stainless steel hoses screw onto the 1/2" supply lines in the wall, then the 59.05" tower is hung on its brackets.
The SP-AZ035 stands 59.05" tall and connects to 1/2" supply lines through flexible reinforced stainless steel hoses. ANZZI's other shower panel systems include the VELD (SP-AZ048) in white tempered glass, the MESA (SP-AZ043), the Niagara (SP-AZ023) and Arc (SP-AZ024) in brushed stainless steel, and glass panels such as the Melody (SP-AZ018), Pure (SP-AZ021) and Monsoon (SP-AZ012, SP-AZ012MB).
For a shower stall that needs body jets without opening the wall, the SP-AZ035 is an ANZZI 60" shower panel system with four Acu-Stream jets, a Heavy Rain head, a 60" hand sprayer and a thermostatic valve, in brushed 304 stainless steel.
Features
Four Acu-Stream Body Jets
Four directional vector massage jets provide a powerful water stream to massage the body.
Heavy Rain Overhead Shower
The fixed crested showerhead, 2.99" x 6.535", delivers ANZZI's Heavy Rain pattern for a full rinse from above.
Euro-Grip Hand Sprayer, 60" Reach
The Euro-Grip hand held sprayer has a free reign 60" reach, fitted to the panel alongside the Heavy Rain shower head.
Thermostatic Control
ANZZI fits a thermostatic cartridge in a brass faucet body, controlled from the panel next to the diverter.
Diverter for Every Outlet
A separate diverter switches water between head, jets and hand sprayer for a fully customizable shower experience.
Brushed 304 Stainless Steel Body
The laser cut brushed 304 stainless steel frame is RHINO ALLOY certified by ANZZI.
16.72 lbs Panel on Two Brackets
The 59.05" panel weighs 16.72 lbs and hangs on two wall brackets fixed with anchors.
1/2" Supplies, 1.8 GPM
Reinforced stainless steel hoses connect to standard 1/2" supply lines, and the system flows at 1.8 GPM.
Specifications
-
Model: SP-AZ035
-

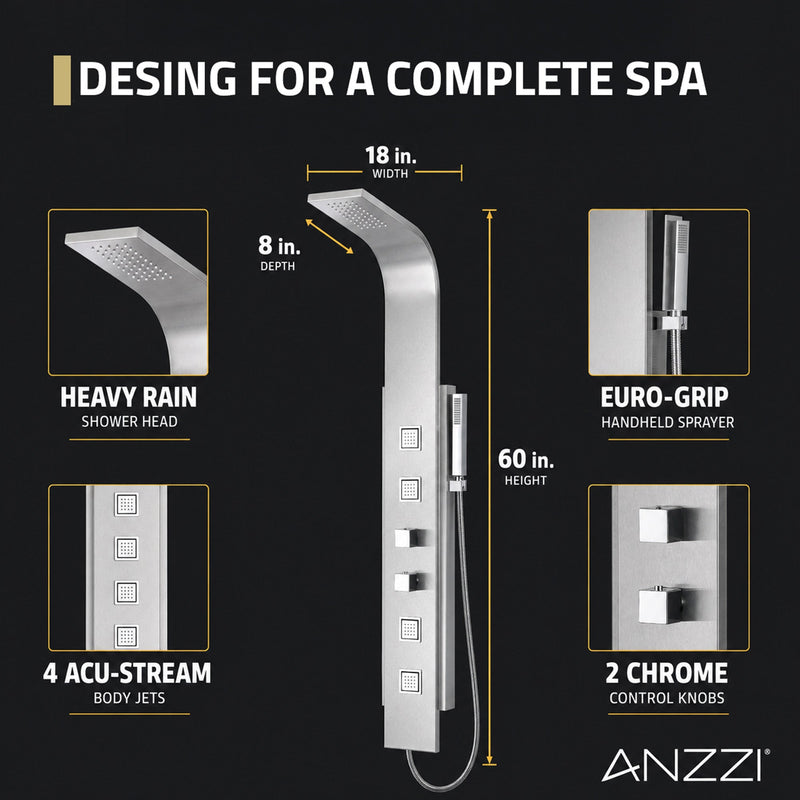

Height: 59.05"
-
Nominal Size: 60"
-
Weight: 16.72 lbs
-
Material: Brushed 304 stainless steel body; brass body jets and faucet; zinc knobs and handle; ABS showerhead and hand shower
-
Finish: Brushed Steel
-
Installation: Wall mount on brackets
-
Controls: 2: thermostatic mixer and diverter
-
Showerhead: Heavy Rain, fixed crested, 2.99" x 6.535"
-
Body Jets: 4 Acu-Stream
-
Hand Sprayer: Euro-Grip, 60" reach
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2", flexible reinforced stainless steel hoses
-
Valve: Thermostatic
-
Series: VISOR
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ035 VISOR full body shower panel
- Heavy Rain shower head
- Four Acu-Stream directional body jets
- Euro-Grip hand sprayer with hose
- Mounting brackets with wall anchors and screws
- Owner's manual
Installation & Care
Installation
Wall mounted on two brackets: check for hidden cables and pipes, then drill two holes 1" apart (6mm drill) for the top bracket at the height you want and two more 1" apart about 45" below for the bottom bracket, and fix both with the wall anchors. Fit the hand shower holder and hose, screw the panel's hot and cold hoses onto the 1/2" supply lines in the wall, then hang the panel on the brackets and check every joint for leaks.
Care
ANZZI's care guide: clean the brushed steel with regular soap and hot water on a non-abrasive cloth or sponge, wiping along the brush grain. Test any stronger cleaner on an inconspicuous area first, rinse every surface with water right after cleaning, and do not let cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The VISOR is one of ANZZI's shower panel towers; the VELD uses white tempered glass with two jets, and other panels such as the Lann, Llano and Lynn offer different heights and jet counts.
