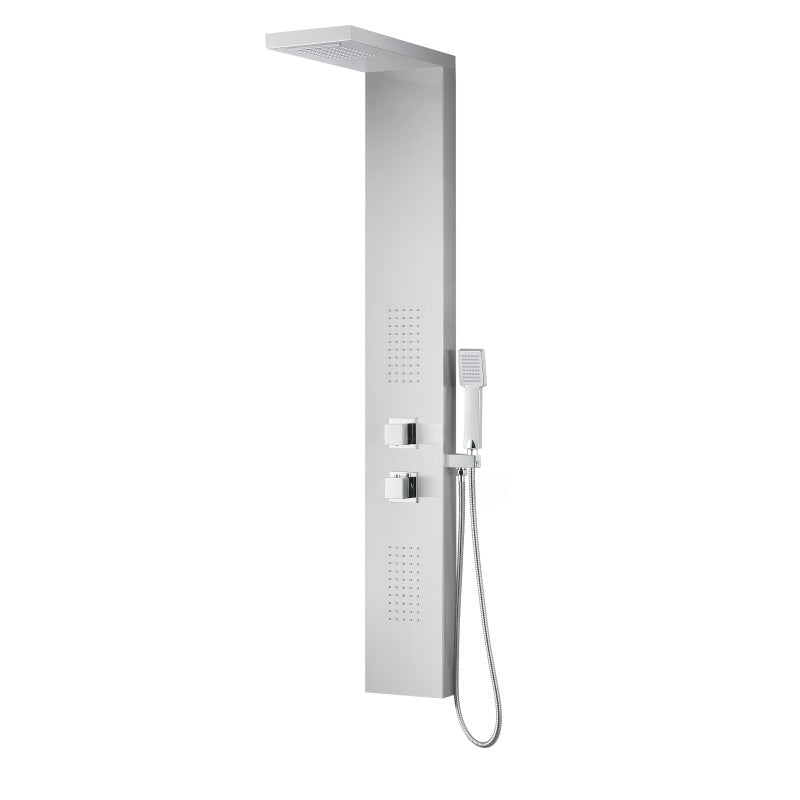

The ANZZI SP-AZ041 is an Expanse Series 57" two-jet full body shower panel system in brushed stainless steel, combining a Heavy Rain shower head with a cascading waterfall, two Acu-Stream body jet sets and the Euro-Grip handheld sprayer in one wall-hung tower. The panel hangs on two brackets and connects to the hot and cold supplies in the wall.
Rainfall, Waterfall and Two Body Jets
The fixed crested head at the top gives two ways to shower, a rainfall from the 4.10" x 5.83" face or a waterfall cascade, and the two body jet sets on the column send a massaging stream across the back. The handheld sprayer reaches 60" on its hose.
Two chrome finish controls run everything: a thermostatic mixer that holds the temperature you set and a diverter that chooses the outlet. The system is rated at 2.5 GPM.
The frame is laser cut from brushed 304 stainless steel with a solid brass valve interior and high grade ABS components, and the materials are Rhino Alloy certified. The panel stands 57.09" tall and weighs 18.92 lbs, and reinforced stainless steel supply hoses use standard 1/2" connections.
Hanging It on the Finished Wall
The panel hangs on two brackets. Check the wall for hidden cables and pipes, drill the two top bracket holes 1" apart with a 6mm bit at the height you choose, then drill the two bottom bracket holes 1" apart about 45" below. Wall anchors take the screws, the hot and cold hoses screw onto the supply lines in the wall, and the panel lifts onto its brackets.
The parts list shows what sits behind the brushed face: a stainless steel top and panel, a brass faucet body, zinc knobs and handle, and an ABS head with the waterfall built in, along with the thermostatic and function cartridges. The spec sheet rates the Expanse at 2.5 GPM.
In the box: the Expanse panel, the Heavy Rain shower head with cascading waterfall, two Acu-Stream body jet sets, the Euro-Grip free range hand sprayer and the owner's manual.
The recommended tools are a screwdriver, channel locks, an adjustable wrench, an Allen key, goggles and Teflon tape, and every instruction should be read through before the work starts.
The ANZZI SP-AZ041 57" full body shower panel combines rainfall and waterfall from one head, two jet sets and thermostatic control in a brushed 304 stainless steel shower tower.
Features
Rainfall and Waterfall Head
The fixed crested head delivers a Heavy Rain shower or a cascading waterfall, giving two distinct overhead experiences from one outlet.
Two Acu-Stream Body Jet Sets
Two Acu-Stream body jet sets on the panel column send a pressurized massaging stream across the back.
Euro-Grip Hand Sprayer, 60" Reach
The Euro-Grip free range hand sprayer has a 60" reach on its hose, beside the two body jet sets.
Thermostatic Mixer
The thermostatic cartridge holds the set temperature so the water stays steady as you switch between outlets.
Simple Two-Control Layout
Just two chrome finish controls, a thermostatic mixer and a diverter, run the rain head, waterfall, jets and hand sprayer.
304 Stainless Steel Frame
The laser-cut brushed 304 stainless steel frame houses a solid brass valve interior behind the controls.
Hangs on the Finished Wall
Two brackets carry the 18.92 lb panel, and stainless steel hoses connect to standard 1/2" supplies, so no in-wall valve is needed.
Specifications
-
Model: SP-AZ041
-
Height: 57.09"
-
Weight: 18.92 lbs
-
Material: Brushed 304 stainless steel frame, solid brass valve interior, ABS components
-
Finish: Brushed stainless steel, chrome finish controls
-
Installation: Wall mount on two brackets
-
Shower Head: 4.10" x 5.83" Heavy Rain with waterfall, fixed
-
Body Jets: 2 Acu-Stream jet sets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Controls: 2: thermostatic mixer and diverter
-
Flow Rate: 2.5 GPM
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Series: Expanse
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ041 Expanse full body shower panel
- Heavy Rain shower head with cascading waterfall
- Two Acu-Stream body jet sets
- Euro-Grip hand sprayer with hose
- Owner's manual
Installation & Care
Installation
Wall mount over the finished shower wall. Check the wall for hidden cables and pipes, then drill two holes 1" apart for the top bracket at the height you want and two holes 1" apart for the bottom bracket about 45" below it, using a 6 mm drill and the supplied wall anchors. Screw the panel's hot and cold hoses onto 1/2" supply connections in the wall, then hang the panel on the brackets and fit the shower head and hand shower. Teflon tape, channel locks and an adjustable wrench are recommended.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge, which stops mineral and soap build-up before it hardens. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Expanse panel shares its install guide with ANZZI's Govenor panel (SP-AZ8093). Its sibling Field panel (SP-AZ042) adds a tub spout, a third control and glass shampoo shelves.
