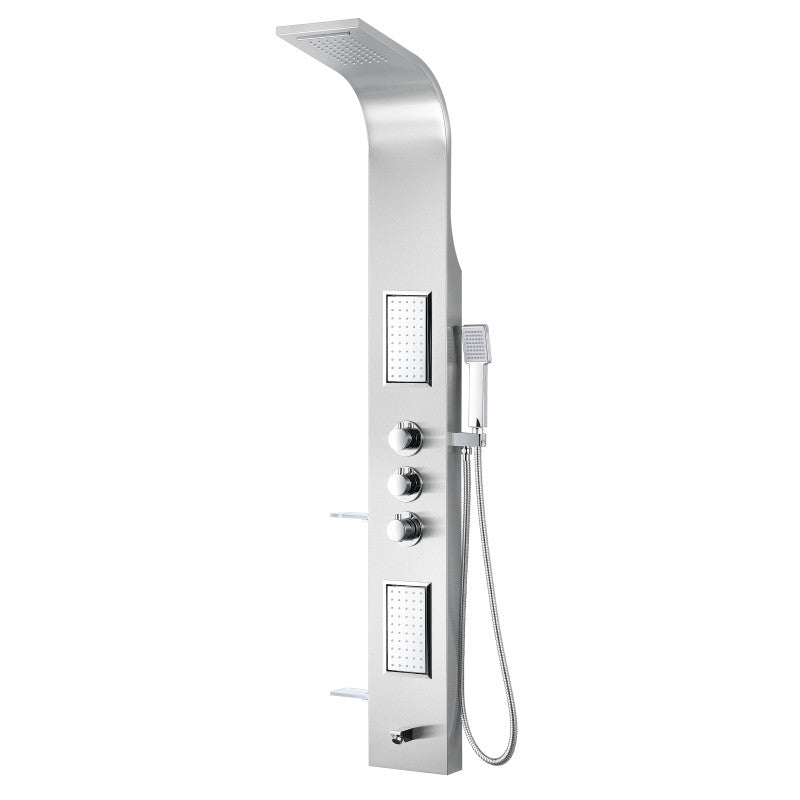

The ANZZI SP-AZ042 is a FIELD Series 62.99" two-jet full body shower panel system in brushed stainless steel, a shower tower with a Heavy Rain head and cascading waterfall, two Acu-Stream body jets, the Euro-Grip handheld sprayer, a concentrated water spout and dual-level shampoo shelves.
Spa Features Plus a Water Spout
The fixed crested head gives a rainfall or a waterfall cascade from its 4.10" x 5.83" face, the two directional body jets provide a powerful water stream to massage the body, and the handheld sprayer reaches 60" on its hose.
Three chrome finish controls run a thermostatic mixer and the diverter functions. As shipped the panel flows at 1.8 GPM; removing the flow reducer raises it to 2.5 GPM. The panel carries dual-level acrylic shampoo shelves.
The frame is laser cut from brushed 304 stainless steel with a solid brass valve interior, a brass spout and high grade ABS components, and ANZZI rates the materials Rhino Alloy certified. The panel weighs 18.48 lbs, and reinforced stainless steel hoses use standard 1/2" connections.
Behind the brushed face are a stainless steel body, brass faucet bodies and spout, zinc knobs and handle, an ABS head with the waterfall, ABS body jets and a flow restrictor that sets the 1.8 GPM rate.
The ANZZI SP-AZ042 62.99" full body shower panel is a brushed stainless steel shower tower with two body jets, a rainfall and waterfall head, a 60" hand sprayer, built-in shelves and a concentrated water spout.
Features
Concentrated Water Spout
A concentrated brass water spout sits at the base of the panel, one of the outlets switched by the three controls.
Rainfall and Waterfall Head
The fixed crested 4.10" x 5.83" head gives a Heavy Rain shower or a cascading waterfall, two overhead options from one outlet.
Two Directional Body Jets
Two Acu-Stream directional vector massage body jets on the panel column provide a powerful water stream to massage the body.
Dual-Level Shampoo Shelves
Dual-level acrylic shampoo shelves are built into the stainless steel panel, giving two shelf levels on the tower itself.
Adjustable 1.8 or 2.5 GPM Flow
The panel ships at a water-saving 1.8 GPM, and removing the reducer raises the flow rate to 2.5 GPM.
Thermostatic Mixer, Three Controls
A thermostatic cartridge holds the set temperature while two more controls switch the outlets.
Euro-Grip Hand Sprayer, 60" Reach
The Euro-Grip free range hand sprayer has a 60" reach on its hose, beside the concentrated water spout.
304 Stainless Steel Frame
The laser-cut brushed 304 stainless steel frame houses a solid brass valve interior and a brass spout.
Specifications
-
Model: SP-AZ042
-
Height: 62.99" (spec drawing)
-
Weight: 18.48 lbs
-
Material: Brushed 304 stainless steel frame, solid brass valve interior and spout, ABS components
-
Finish: Brushed stainless steel, chrome finish controls
-
Installation: Wall mount on two brackets
-
Shower Head: 4.10" x 5.83" Heavy Rain with waterfall, fixed
-
Body Jets: 2 Acu-Stream directional jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Tub Spout: Yes
-
Shelves: Dual-level shampoo shelves
-
Controls: 3: thermostatic mixer and diverter controls
-
Flow Rate: 1.8 GPM; 2.5 GPM with reducer removed
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Series: Field
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ042 Field full body shower panel with dual-level shampoo shelves
- Heavy Rain shower head with cascading waterfall
- Two Acu-Stream directional body jets
- Water spout
- Euro-Grip hand sprayer with hose
- Owner's manual
Installation & Care
Installation
Wall mount over the finished shower wall. Check the wall for hidden cables and pipes, then drill two holes 1" apart for the top bracket at the height you want and two holes 1" apart for the bottom bracket below it, using a 6 mm drill and the supplied wall anchors. Screw the panel's hot and cold hoses onto 1/2" supply connections in the wall, then hang the panel on the brackets and fit the shower head and hand shower. Teflon tape, channel locks and an adjustable wrench are recommended.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces. Wipe the shelves with a soft cloth.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Field panel sits in ANZZI's shower panel range beside the Mesmer (SP-AZ8094), Expanse (SP-AZ041) and Echo (SP-AZ022).
