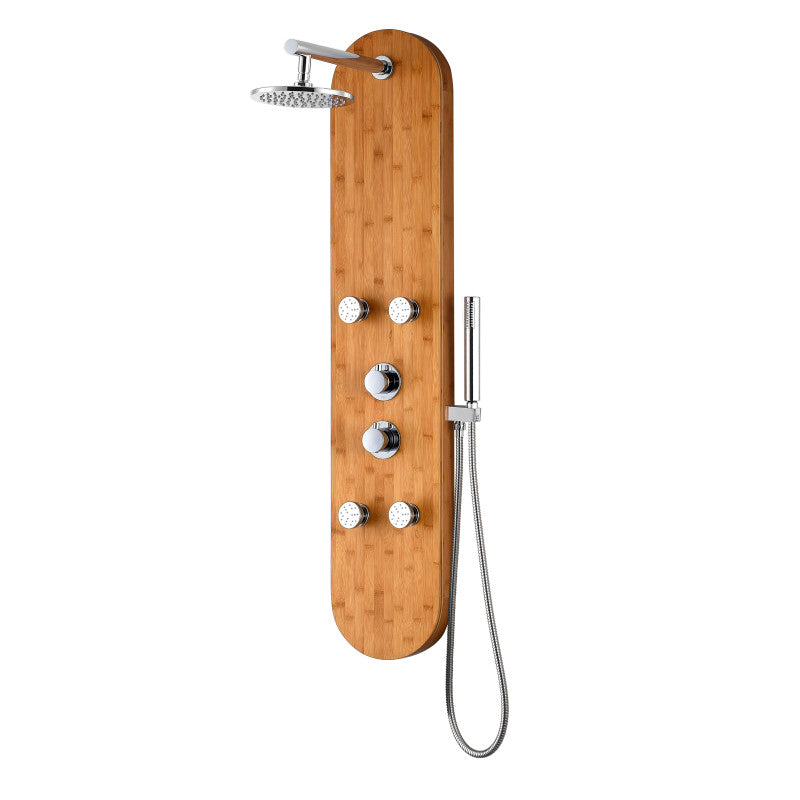

The ANZZI SP-AZ061 is a Crane Series 52" full body shower panel in natural bamboo, a wall-mounted shower tower that combines a Heavy Rain overhead shower head, four Acu-Stream body jets and the Euro-Grip handheld sprayer in one unit. The panel hangs on two brackets and connects to the existing hot and cold supply lines.
The overhead shower head is 7.68" across and swivels on its arm to aim the rainfall where you stand. Below it, four directional Acu-Stream body jets send a pressurized stream across the back and legs, and the Euro-Grip handheld wand runs on a 60" hose. A diverter lets you choose which outlet runs, for a fully customizable shower.
Two chrome finish controls run the panel: a thermostatic mixer that holds the temperature you set and a diverter for the outlets. The system flows at 2.5 GPM.
Natural Bamboo Instead of Glass or Steel
The frame is a laser-cut natural bamboo panel with a solid brass valve interior and high grade ABS components, and the materials are Rhino Alloy certified. The panel stands 51.18" tall and weighs 16.94 lbs, and reinforced stainless steel supply hoses link it to standard 1/2" connections in the wall.
Measure from the shower floor to the supply outlets and the ceiling before choosing the bracket height.
For a shopper comparing bamboo shower panels and shower towers, the ANZZI SP-AZ061 52" full body shower panel has a natural bamboo face, four body jets and thermostatic control, a complete rain shower system that hangs in front of the tile you already have.
Features
Heavy Rain Overhead Shower
A swiveling 7.68" Heavy Rain shower head on the top arm delivers a wide rainfall.
Four Acu-Stream Body Jets
Four directional body jets on the panel face send a pressurized stream across the back and legs.

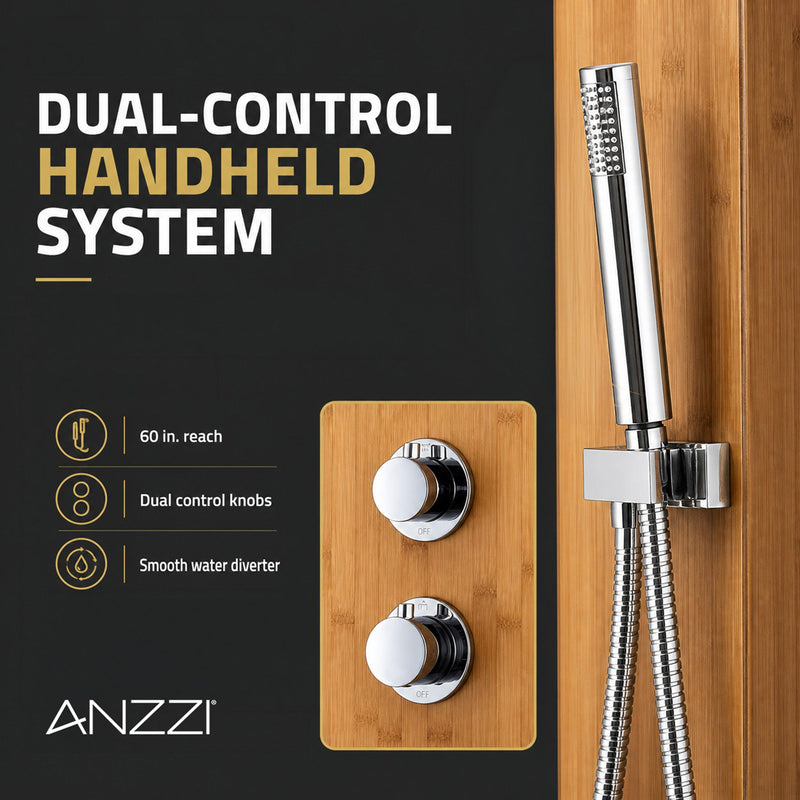

Euro-Grip Hand Sprayer, 60" Hose
The handheld wand pulls free on a 60" hose to rinse hair, wash a child or pet, or clean the shower walls and floor.
Thermostatic Temperature Control
A thermostatic control mixes the hot and cold supplies to the temperature you set, and a separate diverter picks the outlet.
Diverter for Custom Showers
A separate diverter control switches the water between the rain head, body jets and hand sprayer.
Natural Bamboo Frame
The laser-cut natural bamboo panel is set off by two chrome finish controls and a solid brass valve interior.
Installs on the Finished Wall
Two wall brackets hold the 16.94 lb panel, and stainless steel supply hoses connect to standard 1/2" hot and cold supply lines, so there is no in-wall valve to install.
2.5 GPM Flow
The system flows at 2.5 GPM through the rain head, the four body jets or the hand sprayer.
Specifications
-
Model: SP-AZ061
-

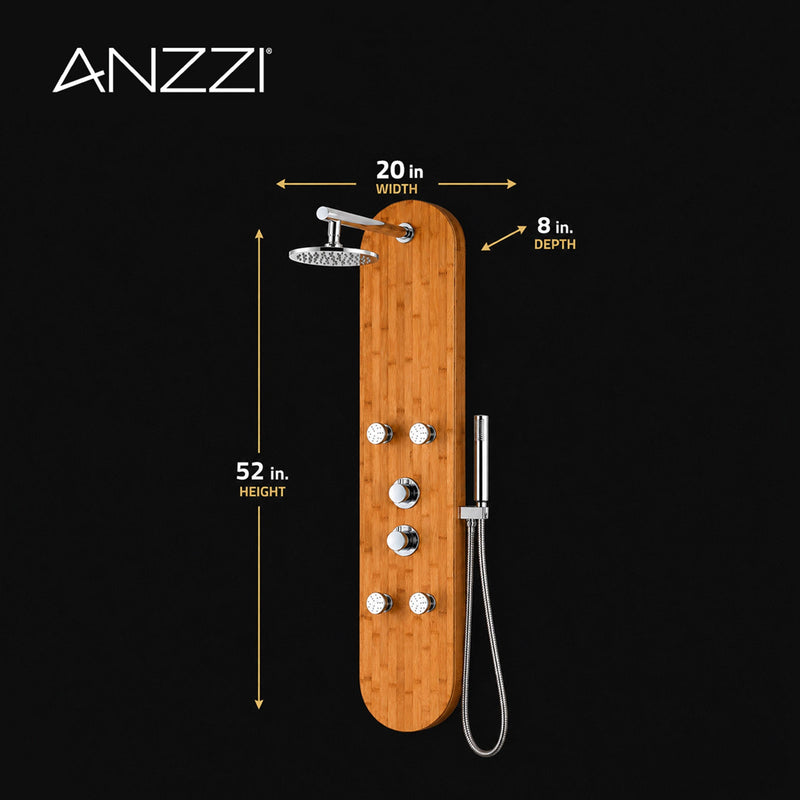

Height: 51.18"
-
Weight: 16.94 lbs
-
Material: Natural bamboo panel, solid brass valve interior, high grade ABS components
-
Finish: Natural bamboo, chrome finish controls
-
Installation: Wall mount on two brackets
-
Shower Head: 7.68" diameter Heavy Rain, swiveling
-
Body Jets: 4 Acu-Stream directional jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Controls: 2: thermostatic mixer and diverter
-
Flow Rate: 2.5 GPM
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Series: Crane
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ061 Crane full body shower panel
- Heavy Rain shower head
- Four Acu-Stream directional body jets
- Euro-Grip hand sprayer with hose
- Owner's manual
Installation & Care
Installation
Wall mount. Check the wall for hidden cables and pipes, then drill two holes 1" apart for the top bracket at the height you want and two holes 1" apart for the bottom bracket about 45" below it, using a 6 mm drill. Wall anchors go into the holes and the brackets are screwed on. Screw the panel's hot and cold hoses onto 1/2" supply lines in the wall, then hang the panel on the brackets and fit the shower arm, head and hand shower. Teflon tape, channel locks and an adjustable wrench are recommended.
Care
Clean the bamboo panel and chrome controls regularly with regular soap and hot water on a non-abrasive cloth or sponge to stop build-up. Test any stronger cleaner on an inconspicuous area first, wipe and rinse all surfaces with water straight after, dry any overspray, and do not let cleaner soak on the surface.
