The SteamSpa G-DPAN is a galvanized steel drain pan that sits under a SteamSpa steam generator and catches any water it releases, then carries it away through a 3/4" threaded drain fitting. It is for anyone installing a steam generator in a closet, vanity or attic space, where a leak or a service drain-down would otherwise land on the floor or the ceiling below.

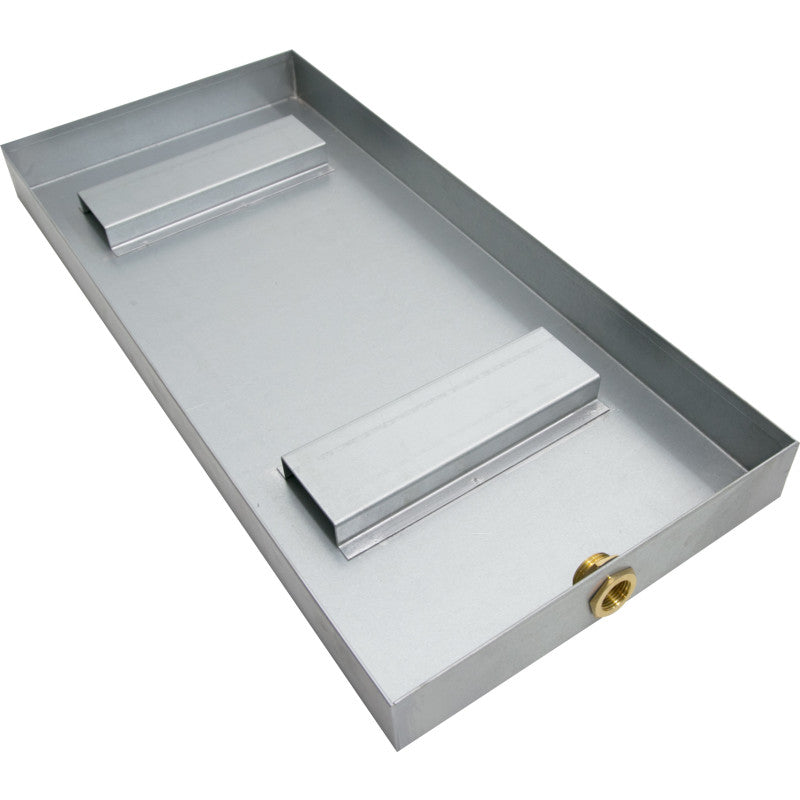

SteamSpa builds the pan to fit its generators. The generator rests on elevating stands inside the pan, so water from the pipes, the safety relief valve area or an unexpected leak collects in the pan and runs to your drain line instead of soaking the surrounding structure.
It earns its place again at service time: when the generator is drained for maintenance or repair, the pan is the receptacle for whatever water is left inside, so the job stays dry. The SteamSpa spec sheet and installation guide give the pan as 26" x 11" with 2" sides.
Where It Fits in the Install
SteamSpa generators go indoors, in a dry, ventilated, non-freezing spot within 25' of the steam room, often a vanity base, closet or utility space. The manual asks for at least 12" of space at both sides and the top of the generator and an area that is easy to clean and convenient for draining, and the drain pan is what makes that spot drainable.
The pan's 3/4" male NPT outlet ties into a drain line that must slope down all the way and end over a waste receptor or outside the building where you can see it, between 6" and 24" above the ground, so a leak shows up instead of hiding in a wall. Pair the G-DPAN with SteamSpa's SSD-STMKIT installation kit to finish the generator's plumbing.
Features
Catches Leaks Before They Spread
Water released from the generator or its pipes lands in the pan, which protects the cabinet, floor or ceiling under the generator from water damage.
Drains Through a 3/4" Fitting
A 3/4" male threaded NPT outlet connects to a drain line, so collected water flows away continuously instead of sitting in the pan.
Made for SteamSpa Generators
SteamSpa sizes the pan to fit its steam generators, which rest on elevating stands inside it with the drain fitting clear of the unit.
Dry Maintenance
When the generator is drained for service or repair, the pan collects the remaining water, so a technician can work without towels and buckets.
Galvanized Steel
The pan is formed from galvanized steel, a zinc-coated steel that resists rust in the warm, damp space around a steam generator.
Low 2" Profile
At 26" x 11" with 2" sides, the pan adds little height under the generator and fits the tight spaces where generators are usually installed.
Specifications
-
Model: G-DPAN
-
Dimensions: 26" x 11" x 2" H (SteamSpa spec sheet and installation guide)
-
Material: Galvanized steel
-
Shape: Rectangular
-
Drain Fitting: 3/4" male threaded NPT
-
Compatibility: SteamSpa steam generators
-
Quantity: 1 pack
-
Weight: 2 lb
-
Warranty: 1 year (SteamSpa controls and accessories)
What's Included
Sold separately: Drain line and fittings to your floor drain or waste receptor
Installation & Care
Installation
Place the G-DPAN on a flat surface suitable for the steam generator and stand the generator on its elevating stands inside the pan; the generator itself must be installed indoors in a dry, non-freezing location. Connect the 3/4" fitting to a drain line run in a continuous downward slope, with nothing obstructing the flow. Terminate the line over a suitable waste receptor or outside the building in an observable spot, at least 6" and no more than 24" above ground, with an air gap at a floor drain of at least twice the discharge pipe's diameter, where it cannot freeze. The plumbing must meet all local and national codes.
Care
Check the pan when the generator is serviced and empty or wipe out any standing water with a cloth; clean it with mild soap and water and avoid abrasive pads or acid cleaners, which can strip the galvanized coating.
