Tucker XL Skid Mount 4-Stage RO/DI Water Purification System

What the XL Skid Mount is

The Tucker XL Skid Mount 4-Stage RO/DI System is a water purification system for mounting on a skid or in a van. It works from a garden hose feed or by siphoning a holding tank, which makes it a good fit for cleaners who fill their own pure water tanks.

Panel and stages

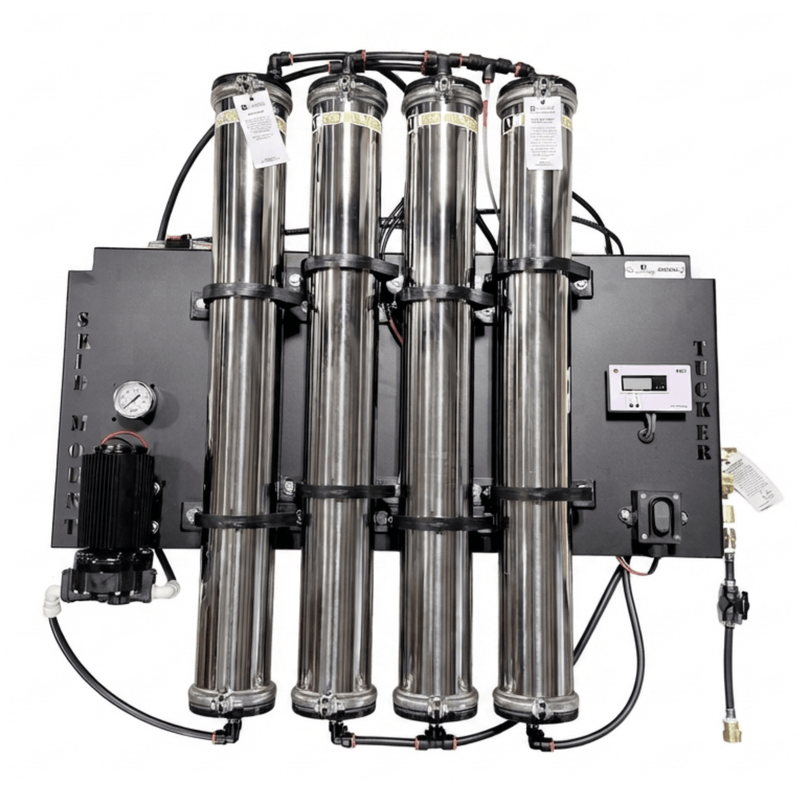

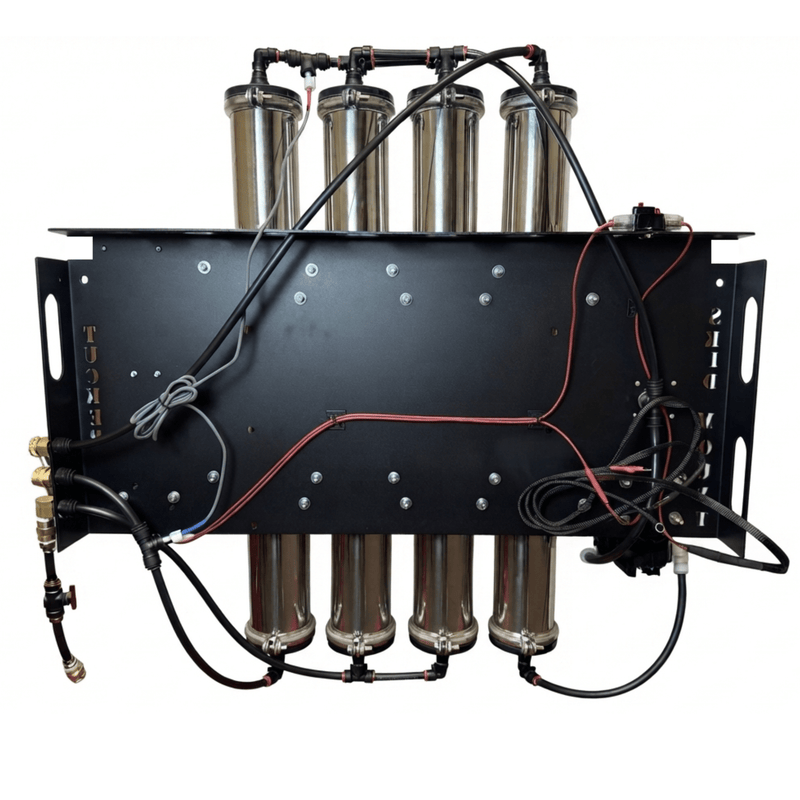

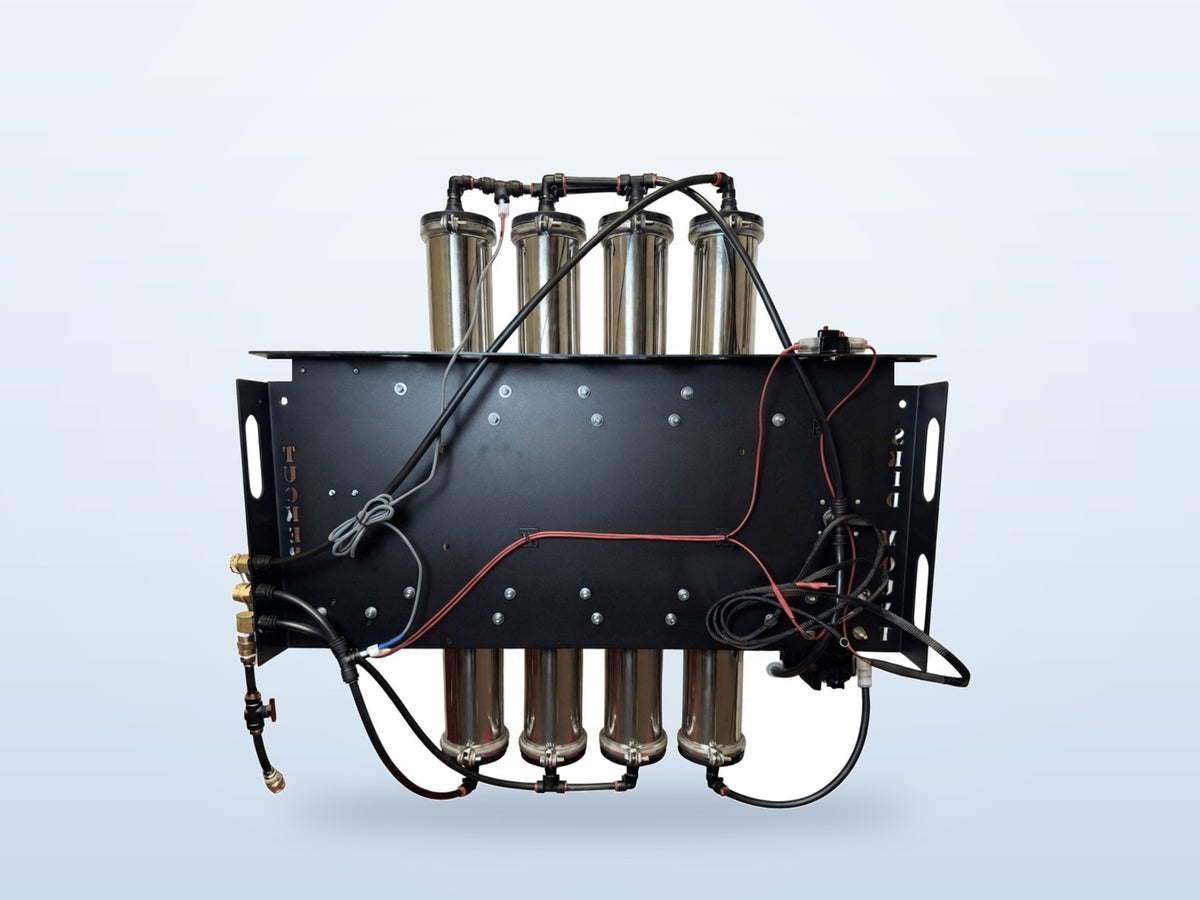

Everything is mounted on one powder-coated aluminum panel: four stainless steel filter housings with the fittings, plumbing, bypass valve and 3/4" garden hose thread inlet and outlet ports. The stages are a 30" carbon/sediment pre-filter, two 30" RO membranes and a 30" DI post-filter. A dual-probe TDS meter reads the RO product water and the final deionized water.

Pump options

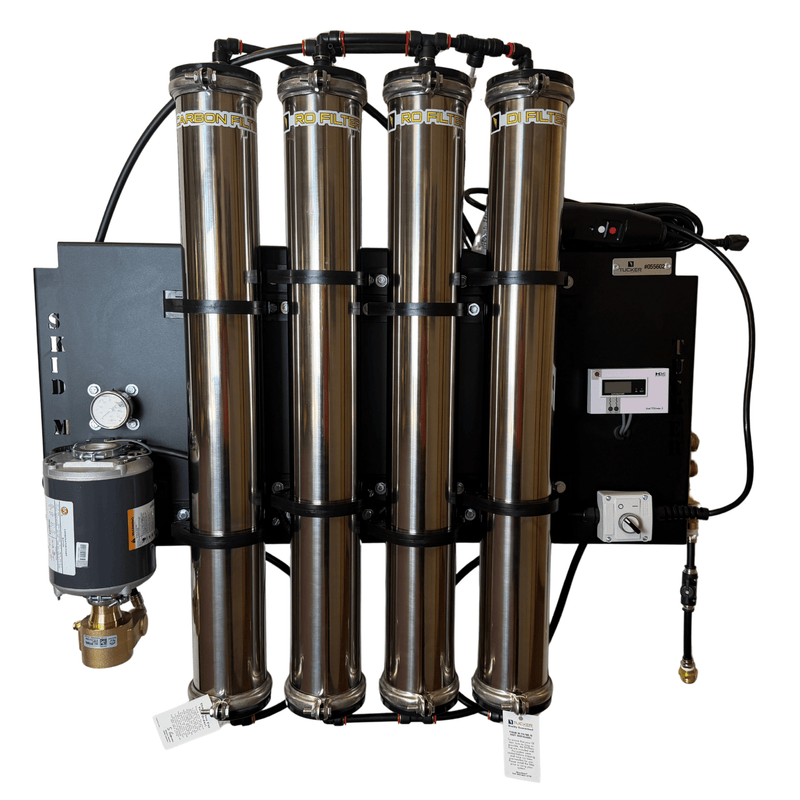

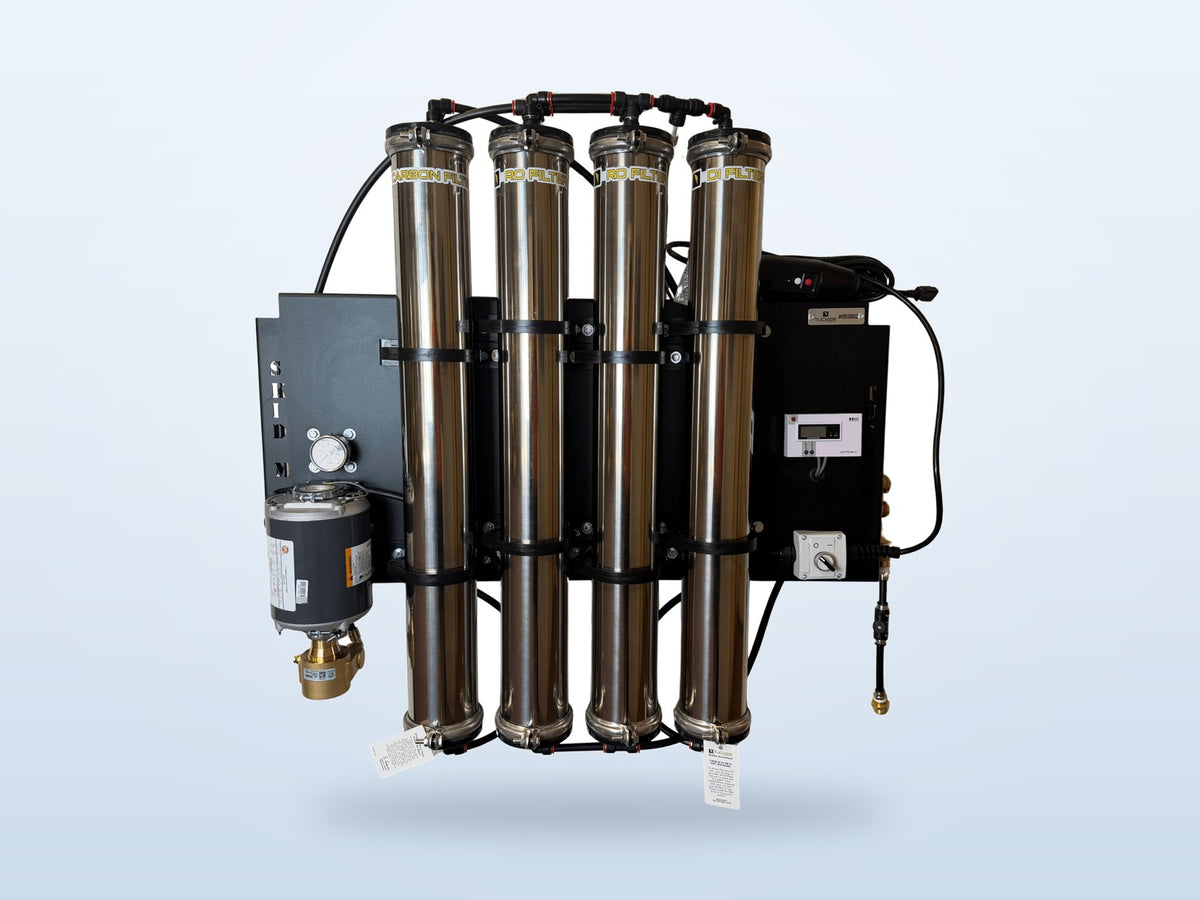

Choose the pump. The 110V version has a 5.3 GPM rotary vane pump with a 1/2 hp motor, regulated to 150 PSI maximum, a waterproof on/off switch and a 6' 12 AWG power cord with a 20 A waterproof GFCI with test and reset buttons. The 12V version uses a battery-powered pump and needs a deep-cycle marine battery that you supply.

Size and filters

The panel measures approximately 38" tall, 8" deep and 43" wide. Your first replacement 30" carbon/sediment pre-filter and DI filter are included. Change the DI when the meter's final reading passes 10 ppm for glass.

Warranty

Tucker purification systems carry a 2-year warranty and are assembled in the USA. Filters, membranes and resin are consumables.

• Stages4 x 30"
• RO membranes2 x 30"
• Pump5.3 GPM 110V or 12V
• TDS meterDual probe
• Size (HxDxW)Approx. 38" x 8" x 43"
• Warranty2 years

Free shipping within the lower 48 states. Orders are processed in 1 to 2 business days, and Tucker ships most orders within 2 business days after that from Castle Rock, Colorado. The XL Skid Mount 4-Stage RO/DI Water Purification System goes by LTL freight on a pallet, so have a way to unload it, or ask us about liftgate delivery before you order. Production times or low stock can delay an order, and we'll email you if they do. You'll get tracking by email as soon as it leaves the warehouse. For Alaska or Hawaii, contact us before you order.

Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.

Unused Tucker equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. Returns that aren't due to a defect carry Tucker's 15% restocking fee, you pay the return shipping, the shipping we paid to deliver your order is deducted from the refund, and payment processing fees are not refunded. Opened filters, membranes and resin and special-order items are final sale, and used items and returns damaged in transit back can't be accepted.

Tucker covers the XL Skid Mount 4-Stage RO/DI Water Purification System for 2 years from the purchase date against manufacturer defects, for the original owner with proof of purchase, including the pumps and motors built into it. Filters, RO membranes and DI resin are not covered. Normal wear and tear, misuse, lack of maintenance, improper handling, modifications and damage from non-Tucker parts are not covered.

Warranty claims. Contact us with your order number, model and photos of the fault. We file the claim with Tucker, who may ask for the part back. Approved replacement parts are free; the shipping on them is not, unless the item arrived defective.

Tucker® is the water-fed pole and brush line of Reach Higher Ground (RHG), the Castle Rock, Colorado company that window cleaner Shawn Gavin founded in 2006 to build better pure-water equipment. RHG built its first spot-free system in 2007 and acquired Tucker® in 2015, and today designs, assembles and supports the whole range from its Colorado facility: RO/DI carts and tank systems, carbon fiber and hybrid poles, water-fed brushes and the accessories that tie them together.

The XL Skid Mount is the wall-panel member of Tucker's range. The Tucker Ultimate Residential Skid puts a 5-stage purifier, a 50-gallon tank and two hose reels on one drop-in skid for compact pickups, and the Tucker Compact fits two 21" RO membranes onto a small frame with rubber feet.
