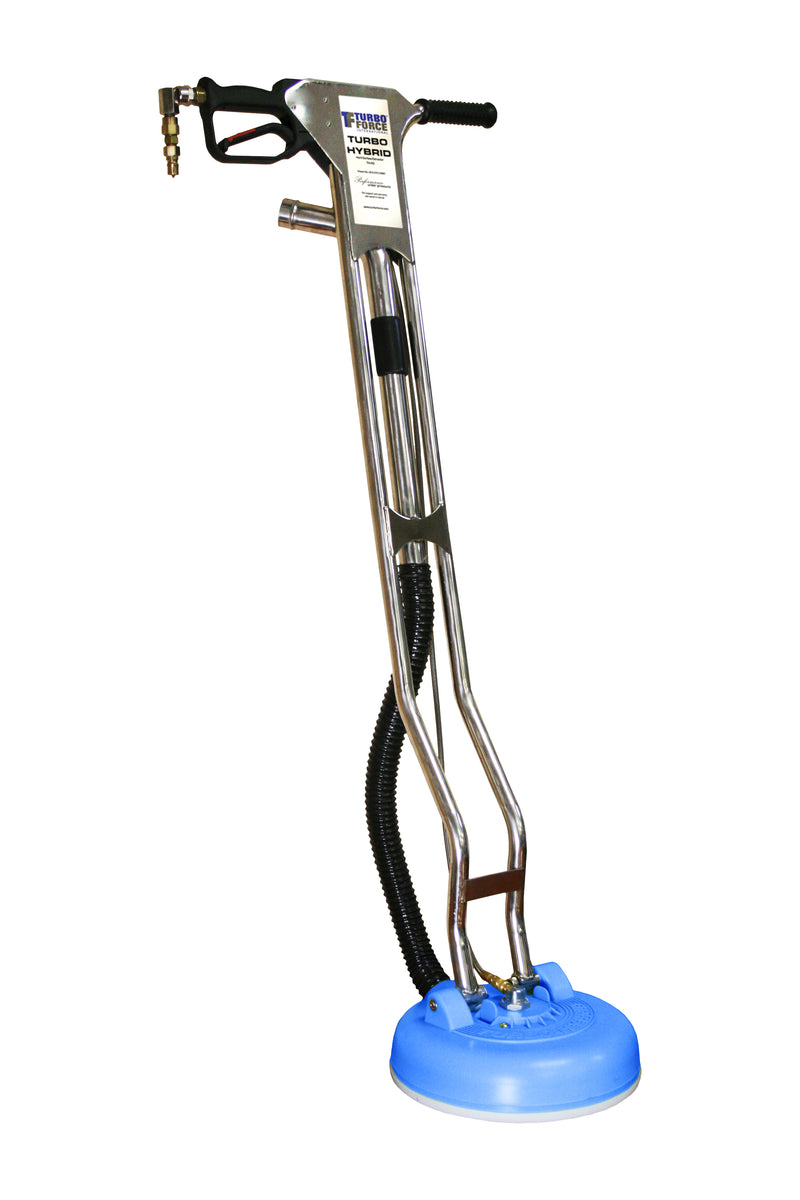

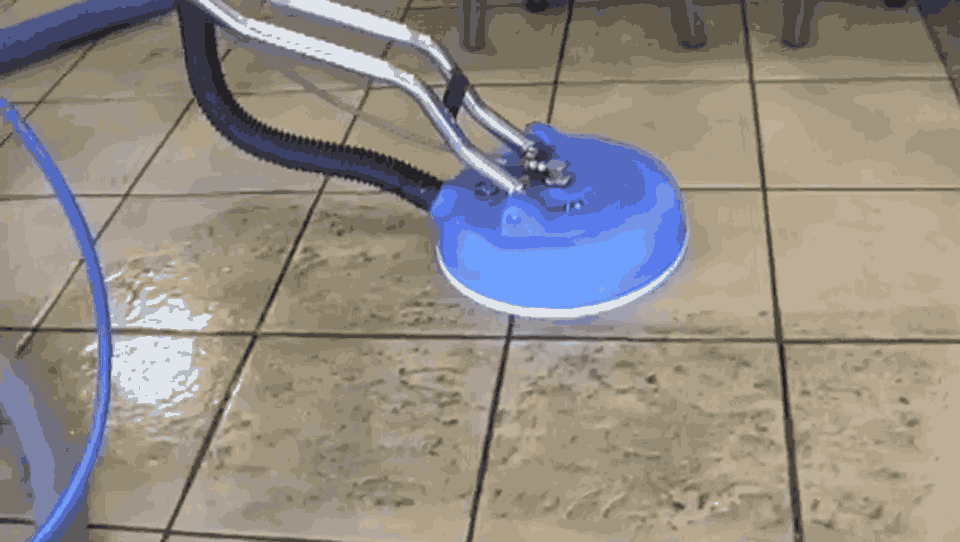

The Turbo Force TH-40 is a 12" rotary tile and grout cleaning tool that runs off your truckmount or high-pressure portable. Two spray jets on a spinning bar scrub inside a sealed deck while your machine's vacuum recovers the water through the handle, so the floor is cleaned and extracted in the same pass.
The 12" deck is the size for kitchens, bathrooms, restaurants and showrooms, where a compact, low-profile head gets under counters and around fixtures. Rated from 650 to 2,500 psi with water up to 230°F, the TH-40 runs from a truckmount or high-pressure portable in that range.
Features
Rotary Spray Bar Under a Sealed Deck
Twin flat-fan jets spin under the deck and hit grout lines from every angle, while the deck contains the overspray.
Patented Automatic Vacuum Compensator
A spring-loaded relief under the deck balances airflow so the tool glides and the floor is left drier. It comes preset and can be tuned with two wrenches.
Low-Profile 12" Deck
The ST-Nylon deck is slim enough to reach under shelves, counters and toe kicks, and light but resistant to impact.
Stainless Steel Handle
A stainless handle with a non-slip comfort grip carries the trigger valve gun, vacuum hose and high-pressure line.
Hard Boot Ring and Brush Ring
It ships with a hard boot ring for tile and a brush ring for marble, travertine and other soft stone that grit under a hard boot could scratch.
Ready for Concrete
An optional 12" concrete bracket adds caster wheels so the same tool can clean garage floors and walkways.
Specifications
-
Model: TH-40
-
Cleaning Path: 12" rotary deck
-
Operating Pressure: 650-2,500 psi
-
Max Water Temperature: 230°F
-
Cleaning Rate: 400-1,000ft² per hour, depending on build-up and surface texture
-
Runs On: Truckmount or high-pressure portable with vacuum recovery
-
Handle: Stainless steel with non-slip comfort grip
-
Deck: Low-profile ST-Nylon high-strength deck, fiber-reinforced shell
-
Vacuum Control: Patented automatic vacuum compensator
-
Inlet: Male quick disconnect with steel mesh filter
-
Concrete Use: Optional 12" concrete bracket, sold separately
What's Included
- Turbo Force TH-40 Turbo Hybrid with 12" deck, spray bar and swivel
- Hard boot ring (fitted) and brush ring for marble, travertine and other soft stone
- Stainless steel handle with trigger valve gun
- Vacuum hose and steel-braided high-pressure line fitted to the handle
Setup & Placement
Connect the tool's male quick disconnect to your high-pressure line and the vacuum port to your vacuum hose. Check and clean the steel mesh filter just after the inlet fitting, using two wrenches, as a dirty screen sharply reduces cleaning power.
The vacuum compensator under the deck comes preset for most jobs. If your machine's vacuum is unusually strong or weak, its spring tension can be adjusted with two wrenches. To check the jets, turn the tool over and trigger it with the jets pointed away from you: you should see two flat, narrow fans.
Resources
Shipping, Returns & Warranty
Shipping is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Turbo Force tools in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated tools and special-order items can't be returned.
Turbo Force warrants this tool against defects in materials and workmanship under normal use for 1 year from the date of purchase. The interface ring (hard boot ring or brush ring) is covered for breakage or defect for 90 days, with no warranty against wear. Vacuum hoses, high-pressure lines and fittings are not covered, and the sealed swivel is not covered if its factory seal has been broken. The warranty applies to the original purchaser with the original sales receipt, and excludes damage from misuse, neglect, alteration, excess heat or mishandling in transit.
Warranty claims. Contact us, or Turbo Force International at 1-800-353-6382. Send a copy of your original invoice with any tool returned for repair.
About Turbo Force
Turbo Force International, based in Glendale, Arizona, is the manufacturer of the Turbo Hybrid and Turbo branded hard-surface cleaning tools. Every tool in the range runs off the pressure and vacuum of a carpet-cleaning truckmount or a high-pressure portable extractor, so a contractor who already owns the machine can take on tile, grout, stone and concrete work with the same rig.
The Turbo Hybrid comes in two sizes. The 12" TH-40 is the more maneuverable tool for kitchens, bathrooms and tight commercial spaces, while the 15" TH-15 covers wider open floors in fewer passes. For concrete and higher pressures, the 17" Hyper Turbo is the step up, and the handheld Mini Turbo and Cobra take care of counters, steps and corners.
