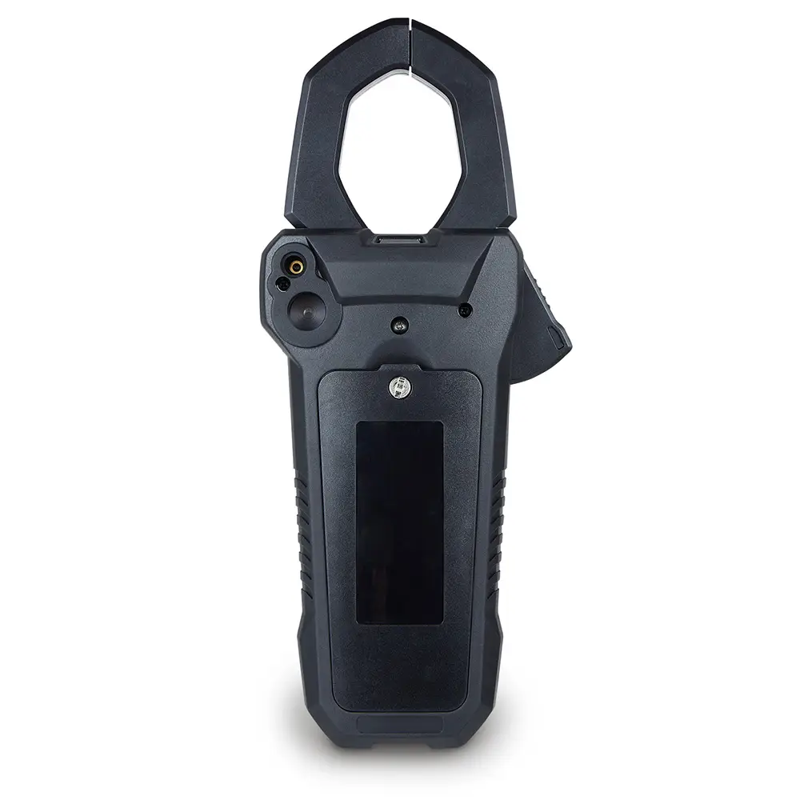

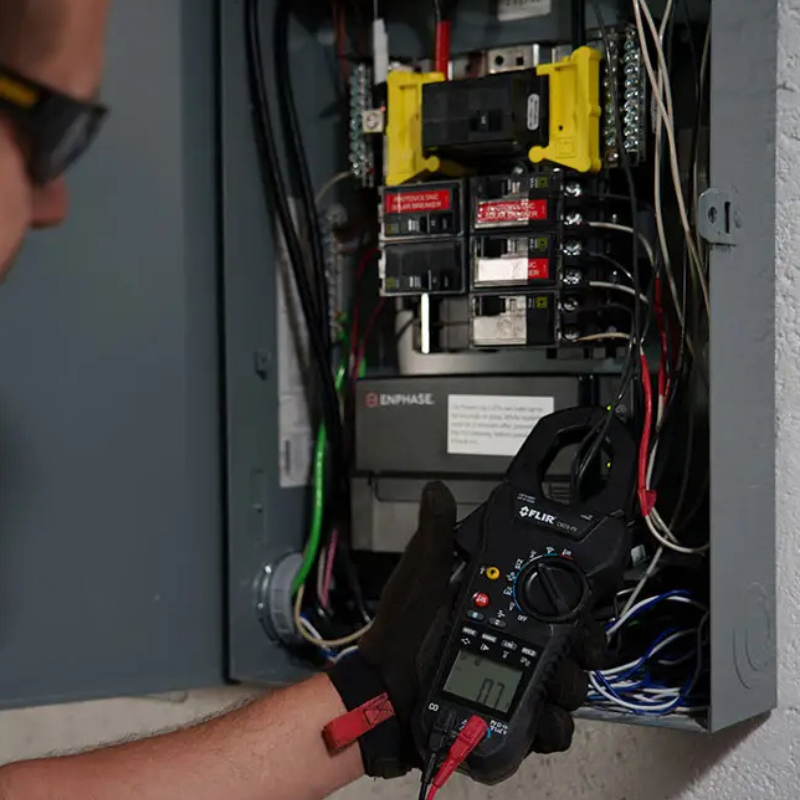

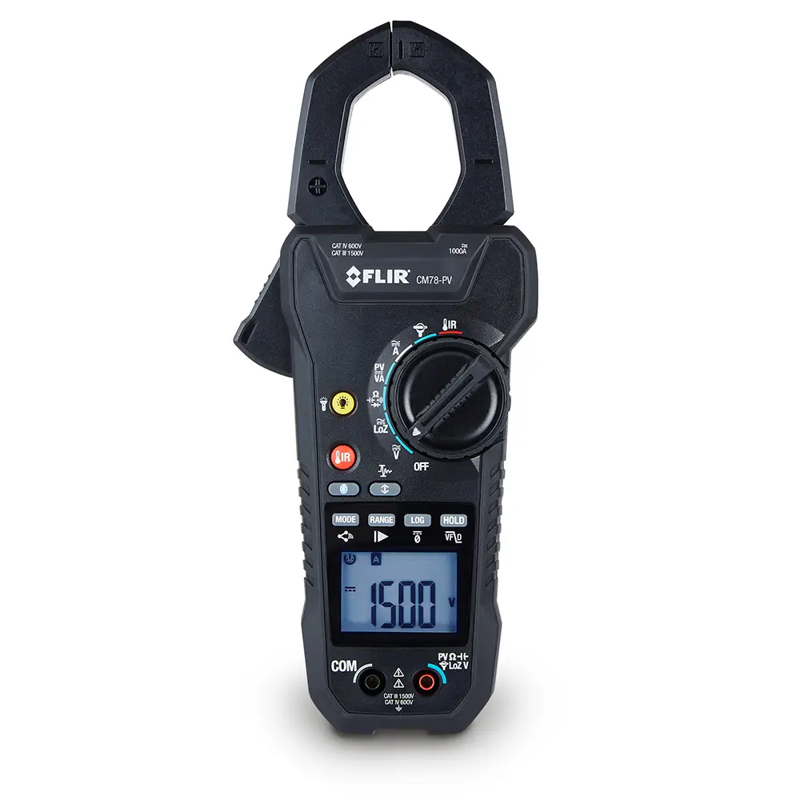

The Teledyne FLIR CM78-PV True-RMS Solar Clamp Meter is a high-performance tool designed for solar professionals. Capable of measuring solar string DC power and performance up to 1500 kVA at a CAT III 1500V rating, this clamp meter combines advanced measurement features with safety and ease of use. It includes a built-in non-contact infrared thermometer and laser pointer, enabling users to quickly locate and identify overheating components without contact.
With True RMS accuracy, VFD mode, and low impedance (LoZ) mode, the CM78-PV delivers precise results even in demanding environments. It also includes a full set of test leads rated for CAT III 1500V and supports METERLiNK wireless connectivity for streamlined data collection and sharing. The unit is ideal for verifying solar system performance, monitoring solar power plants, and maintaining quality control in panel production.
What's Included:

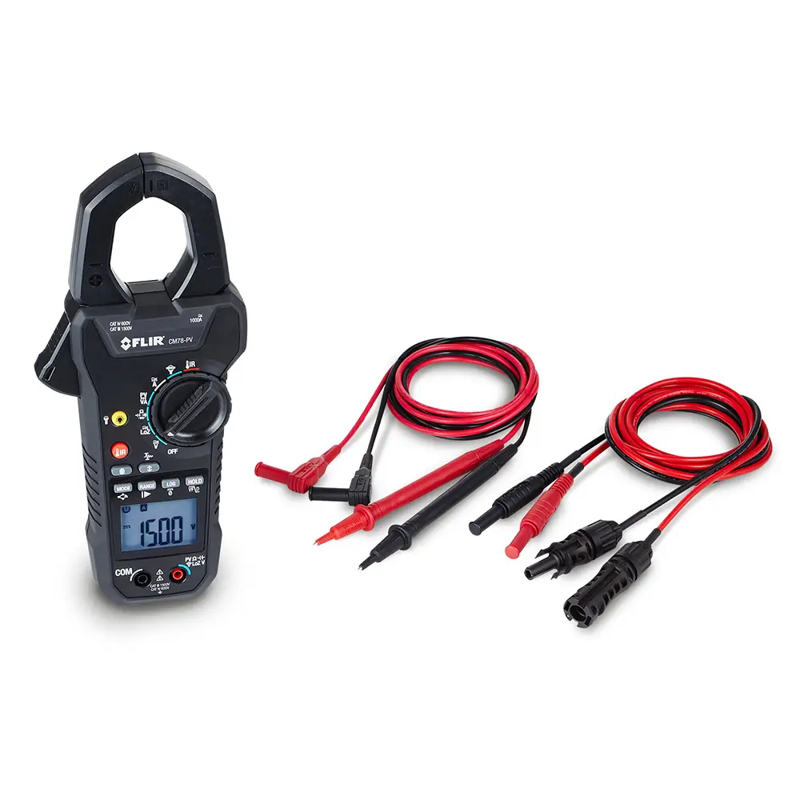

- 1 - True-RMS Solar Clamp Meter (CM78-PV)
- 1 - Solar Photovoltaic Test Lead Set with Banana Plug and MC4 Connector, 60 in. Lead, CAT III 1500V (TA89)
- 1 - Solar Photovoltaic Test Lead Set with Banana Plug and Dual Male/Female MC4 Connector, 60 in. Lead, CAT III 1500V (TA90)
- 1 - Rugged Carrying Pouch with Shoulder Strap (TA91)
- 6 - AAA (LR03) Batteries
- 1 - User Manual
Features
High Voltage Capability
Measures DC and AC voltages up to 1500V and supports CAT III 1500V and CAT IV 600V ratings for solar industry applications.
Built-In Infrared Thermometer
Safely detects hot spots with a non-contact IR sensor and laser pointer to identify issues without touching components.
True RMS Accuracy
Delivers accurate readings in noisy electrical environments using TRMS, VFD, and LoZ modes.
METERLiNK Wireless Connectivity
Enables easy data logging, transfer, and integration with compatible FLIR thermal imaging tools.
Complete Solar Testing Kit
Comes with dual-rated test leads and MC4 PV plugs for comprehensive photovoltaic system diagnostics.
Robust and Ready
Durable housing and compact design ensure it's field-ready for demanding solar maintenance tasks.
What's Included
Included with Your Purchase:
- 1 - True-RMS Solar Clamp Meter (CM78-PV)
- 1 - Solar Photovoltaic Test Lead Set with Banana Plug and MC4 Connector, 60 in. Lead, CAT III 1500V (TA89)
- 1 - Solar Photovoltaic Test Lead Set with Banana Plug and Dual Male/Female MC4 Connector, 60 in. Lead, CAT III 1500V (TA90)
- 1 - Rugged Carrying Pouch with Shoulder Strap (TA91)
- 6 - AAA (LR03) Batteries
- 1 - User Manual
Specifications
-
Voltage Range: 1000VAC, 1500VDC
-
VFD Range: 1000VAC
-
LoZ Range: 1000VAC, 1500VDC
-
Current Range: 1000AAC/DC
-
Inrush Current Range: 1000AAC
-
Frequency Counter: 60 kHz
-
Resistance Range: 60 KΩ
-
Continuity Check: < 50Ω (beeper ON), > 150Ω (beeper OFF)
-
Diode Test: 3V
-
Capacitance Range: 6000 uF
-
Flex Current Range: 3000AAC
-
PV Voltage Range: 1500VDC
-
PV Power Range: 1500 kVADC
-
Measuring Rate: 3 samples per second
-
Battery: 6x AAA alkaline batteries
-
Battery Life: ~50 hours
-
Display Count: 6000
-
Jaw Opening: 1.7 in. (42 mm)
-
Category Rating: CAT IV 600V, CAT III 1500V
-
Certifications: ETL, CE, FCC, FDA, RCM
-
Safety Standards: IEC 61010-1 CAT IV 600V, CAT III 1500V
-
EMC Standards: EN61326-1, EN61326-2, EN300328, EN301489-1, EN301489-17, EN62478, FCC PART 15B/15C
FAQ
Q: Can this meter test high-voltage solar installations?
A: Yes, the CM78-PV supports up to 1500VDC and is rated CAT III 1500V, making it ideal for solar string applications.
Q: What is the purpose of the IR thermometer?
A: It helps identify overheating components from a safe distance using a non-contact sensor and laser pointer.
Q: How is data transferred wirelessly?
A: METERLiNK wireless connectivity allows data to sync with compatible FLIR tools and apps for seamless integration.
Q: Does it come with all necessary test leads?
A: Yes, it includes both standard and dual male/female MC4 test lead sets rated for CAT III 1500V.
