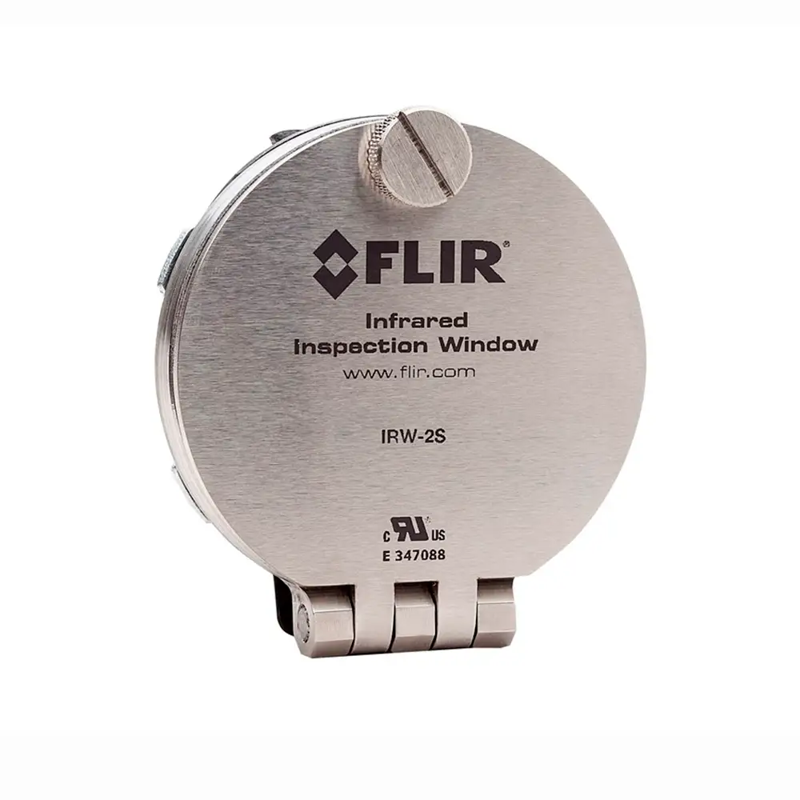

The Teledyne FLIR IRW-2S Stainless Steel Infrared (IR) Inspection Window, 2 in. adds a vital safety barrier between users and energized equipment. Designed with a permanently-hinged cover that opens easily with one hand, it ensures there is nothing to remove, drop, or misplace during inspections. Its broadband crystal enables both visible light and thermal imaging while allowing LED and laser illumination for better visual assessments.
Opening electrical enclosures for inspections exposes personnel to dangerous arc flash incidents and prolongs the inspection process. The IRW-2S provides a safer, faster alternative by allowing visual and thermal inspections without opening panels, supporting compliance with NFPA 70E regulations. Enhanced durability, easy installation, and stainless steel construction make it ideal for harsh environments.
What's Included:
- 1 - Stainless Steel Infrared (IR) Inspection Window, 2 in.
Features
Stainless Steel Durability
Built to withstand harsh and exterior environments without compromising integrity.
Easy Installation
Compatible with standard punch tools for a quicker, simpler setup process.
Advanced Locking System
Features PIRma-Lock technology with an enhanced stainless steel ring for secure fitting.
Convenient Access
Equipped with a hinged flip-open cover and an integrated thumb screw for effortless operation.
Crystal Clear Viewing
Crystal IR Window allows sharp, clear visual and thermal imaging.
Corrosion Resistant
Resists corrosion effectively and avoids dissimilar metal issues in stainless steel cabinets.
Enhanced Safety
Helps meet NFPA 70E safety requirements by minimizing exposure to arc flash hazards.
What's Included
Included with Your Purchase:
- 1 - Stainless Steel Infrared (IR) Inspection Window, 2 in.
Specifications
-
Required Hole Diameter: 2-3/8 in.
-
Body Material: Stainless Steel AISI 316
-
Max Operating Temperature: 500°F
-
Brand: FLIR
-
Condition: NEW
FAQ
Q: What size hole is required for installation?
A: The IRW-2S requires a nominal 2-3/8 in. hole for installation.
Q: Is the window suitable for outdoor or corrosive environments?
A: Yes, its stainless steel construction provides excellent resistance to corrosion and is ideal for harsh environments.
Q: Does this product support compliance with electrical safety regulations?
A: Yes, using the IRW-2S can help meet NFPA 70E standards by reducing the need to open energized equipment.
Q: Can I capture both visual and thermal images through the window?
A: Yes, the broadband crystal allows visible light, LED, and laser to pass through for both types of imaging.
