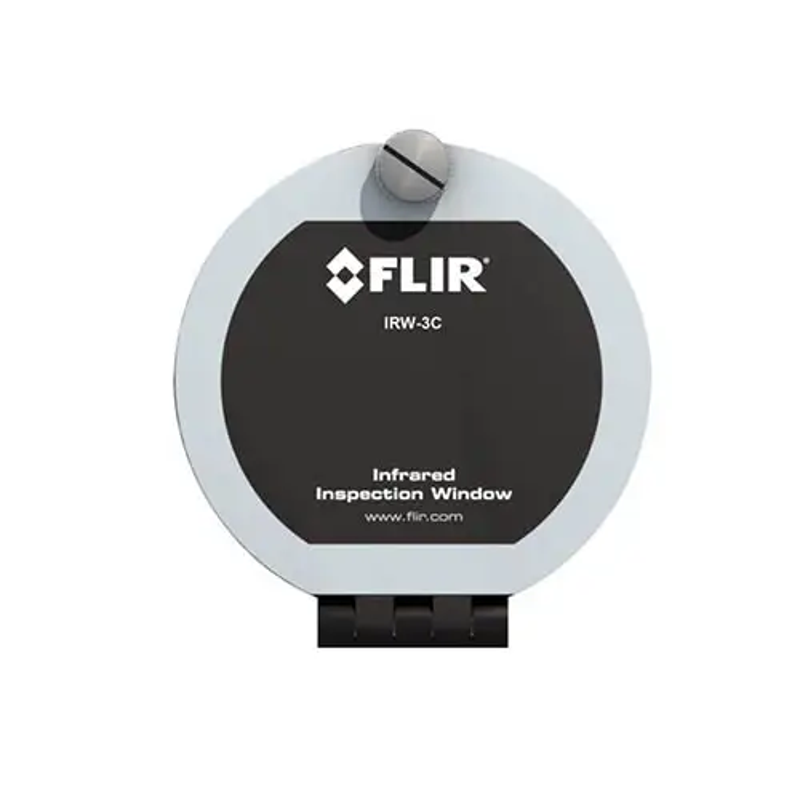

The Teledyne FLIR IRW-3C Infrared (IR) Inspection Window, 3 in. offers an innovative solution for safer and faster inspections. Featuring a secure, permanently-hinged cover, it allows one-handed operation without worrying about dropped or misplaced parts. The advanced broadband crystal enables the capture of both visible light pictures and thermal images, while also allowing LED and laser illumination to pass through for more accurate assessments.
Opening electrical cabinets to inspect live components is hazardous, exposing workers to potential arc flash incidents. The IRW-3C creates a protective barrier between users and energized equipment, significantly reducing arc flash risk and allowing compliance with NFPA 70E standards. It also streamlines inspection processes, enabling users to work faster and with more confidence.
What's Included:
- 1 - Infrared (IR) Inspection Window, 3 in.
Features
Infrared (IR) Inspection Window, 3 in.
Provides a clear and durable barrier for thermal and visual inspections, enhancing safety and convenience.
Single-Hole Installation
Requires only one hole to be created for mounting, simplifying installation.
PIRma-Lock Ring Nut
Secures the window in place with a single tightening motion, eliminating the need for extra fasteners.
Standard Punch Tool Compatible
Fits standard US punch tools for easy knockout creation.
Integrated Teeth Locking
Firmly grips the panel interior to prevent movement and enhance durability.
Automatic Grounding
Automatically grounds metal components for added safety without extra steps.
No Screw Holes Needed
Reduces the risk of stripped threads and maintenance complications.
Flip-Open Hatch
Enables quicker, easier inspections with its easy-access design.
Drop Prevention
Minimizes the risk of part loss during inspections.
Permanent Inside Label
Offers permanent component identification for maintenance and record-keeping.
Broad IR Transmission
Supports shortwave, midwave, and longwave IR imaging.
Visual and Fusion Inspection Support
Enhances inspection versatility by supporting visual imaging and fusion technologies.
Laser and Illumination Transmission
Allows laser pointers and light sources to pass through for more detailed inspections.
Single-Person Operation
Reduces manpower needs by enabling single-person inspection processes.
PPE Reduction
May decrease the need for bulky PPE, streamlining workflow and enhancing comfort.
Arc Flash Risk Mitigation
Substantially reduces arc flash triggers during inspections.
Compliance with Standards
Meets UL, CSA, IEC, and IEEE standards for reliability and safety.
Proven Durability
Tested to withstand arcs, vibration, and high humidity conditions.
Limited Lifetime Warranty
Backed by a manufacturer’s limited lifetime warranty for peace of mind.
What's Included
Included with Your Purchase:
- 1 - Infrared (IR) Inspection Window, 3 in.
Specifications
-
Required Hole Diameter (Nominal): 3.5 in.
-
Body Material: Anodized Aluminum
-
Max Operating Temperature: 500°F
-
Brand: FLIR
-
Condition: New
FAQ
Q: What is the advantage of the PIRma-Lock ring nut?
A: It ensures a secure fit without the need for extra screws, reducing installation time and potential maintenance issues.
Q: Can the IRW-3C Inspection Window withstand extreme environments?
A: Yes, it has been tested to withstand arcs, vibration, and extreme humidity.
Q: Does the window support both thermal and visual inspections?
A: Yes, it allows thermal, visual, and fusion imaging while transmitting laser pointers and LED illumination.
Q: How does it improve inspection safety?
A: It reduces the risk of arc flash by allowing inspections without opening energized enclosures, aligning with NFPA 70E standards.
