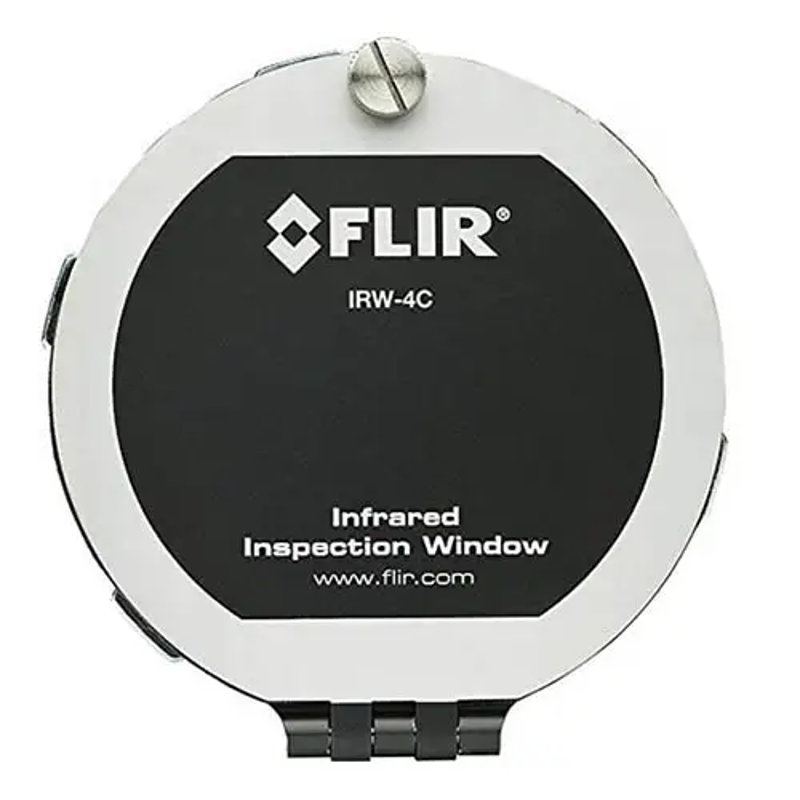

The Teledyne FLIR IRW-4C Infrared (IR) Inspection Window, 4 in. adds a secure, permanently-hinged cover that opens easily with one hand, ensuring nothing is removed, dropped, mixed up, or lost during inspections.
Its advanced broadband crystal allows thermal and visual images to be captured clearly, while also letting LED and laser illumination pass through for enhanced assessments.
Opening electrical cabinets to perform IR and visual inspections of live components is both dangerous and time-consuming, exposing technicians to the risks of arc flash incidents. With the Teledyne FLIR IRW-4C, you can perform safer inspections by creating a protective barrier between yourself and energized equipment. This easy-to-install window streamlines inspections, increases worker confidence, and significantly reduces arc flash risk while meeting NFPA 70E compliance requirements.
What's Included:
- 1 - Infrared (IR) Inspection Window, 4 in.
Features
Simple Installation Process
Requires only one hole and a single PIRma-Lock ring nut to secure the window in place without additional screws.
Efficient and Secure Design
Teeth lock tightly to the inside of the panel and automatically ground metal components for added safety.
Convenient Hatch Mechanism
Easy, flip-open hatch design allows faster, one-handed inspections and prevents accidental dropping or loss of components.
Supports Multiple Imaging Types
Broadband crystal transmits short, mid, and longwave IR images while allowing laser pointers and illumination to pass through.
Enhanced Safety and Compliance
Helps minimize the need for cumbersome PPE and reduces the majority of arc flash trigger risks.
Rugged and Reliable Performance
Tested to withstand arc flashes, vibrations, and extreme humidity conditions.
Standard Compliance
Meets UL, CSA, IEC, and IEEE standards for quality and safety assurance.
Space-Saving and Labor-Efficient
Requires only one technician instead of three, simplifying inspection workflows and reducing downtime.
Durable Identification
Features a built-in inside label for permanent, easy identification.
Limited Lifetime Warranty
Backed by a limited lifetime warranty against manufacturer defects for added peace of mind.
What's Included
Included with Your Purchase:
- 1 - Infrared (IR) Inspection Window, 4 in.
Specifications
-
Inspection Window Size: 4 inches
-
Required Hole Diameter (Nominal): 4.5 inches
-
Body Material: Anodized Aluminum
-
Maximum Operating Temperature: 500°F
-
Condition: New
-
Brand: FLIR
FAQ
Q: What imaging types does the IRW-4C window support?
A: It supports short, mid, and longwave infrared images, as well as visible light inspections.
Q: Does the IRW-4C help reduce the need for PPE?
A: Yes, it can significantly reduce or even eliminate the need for cumbersome PPE by allowing inspections without opening enclosures.
Q: How does the PIRma-Lock system work?
A: The PIRma-Lock ring nut securely locks the window in place without the need for additional screws, ensuring a tight and reliable fit.
Q: Is the IRW-4C compliant with industry standards?
A: Yes, it meets UL, CSA, IEC, and IEEE standards for arc flash safety and inspection reliability.
