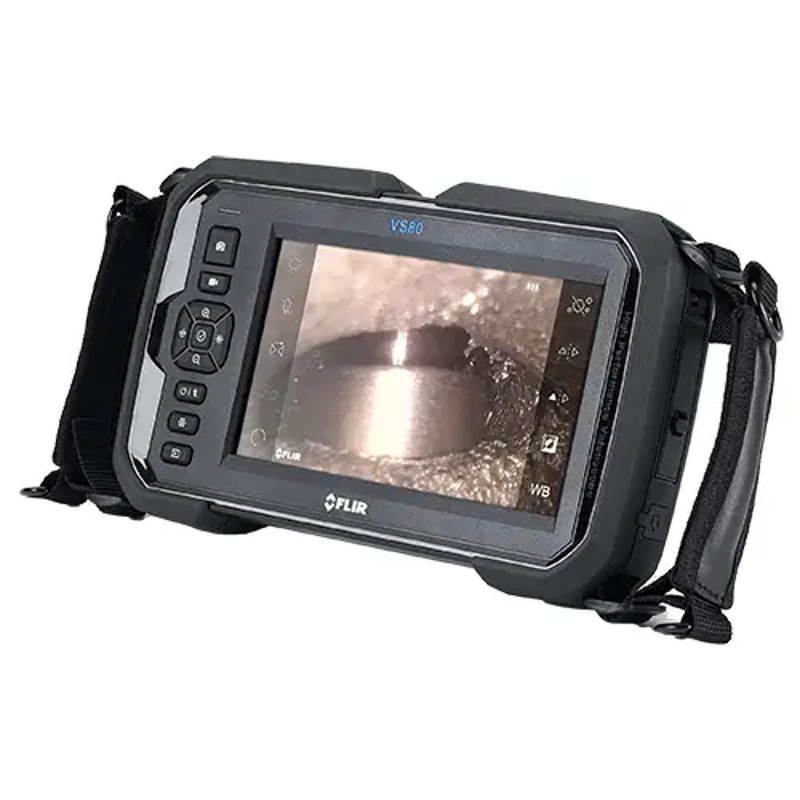

The Teledyne FLIR VS80-IR21 High-Performance Rugged Videoscope Kit combines versatility and durability with advanced inspection capabilities. Equipped with the professional-grade V80 touchscreen display and a 19mm x 1m IR thermal probe, this system is purpose-built for challenging inspection environments such as industrial equipment, HVAC/R, automotive diagnostics, and building maintenance. The waterproof probe tip (IP67) and splashproof display (IP54) ensure reliable performance even in harsh conditions.
The large 7-inch display allows for side-by-side viewing of live and saved images, enhancing comparison during repeat inspections. With over 8 hours of battery life, HDMI output, and compatibility with FLIR Tools Mobile for easy file sharing, this kit streamlines inspections and reporting from start to finish.
What's Included:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80CIR-21 IR Thermal Camera Probe, 19mm x 1m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Features
19mm x 1m IR Thermal Probe
Designed for inspections in tight and hard-to-access areas, delivering infrared thermal imaging through a waterproof camera tip.
High-Resolution Display
The 7-inch 1024 x 600 touchscreen display enables crisp image viewing and easy navigation of features.
Side-by-Side Image Comparison
View live and saved inspection images concurrently to detect changes over time and enhance diagnostics.
Extended Battery Runtime
Operate the system continuously for more than 8 hours without the need for recharging.
Hands-Free Operation
Utilize the kickstand, neck strap, and tripod mount for convenient viewing while managing the probe with both hands.
Durability and Protection
Withstands drops up to 2 meters and offers IP54 splash resistance for the display; probe tips are IP67 waterproof rated.
Sunlight Readable
Includes a removable sun visor to maintain screen visibility during outdoor inspections.
HDMI Video Output
Stream live visuals to external monitors or screens for better team collaboration or presentations.
High-Quality Media Capture
Records HD (1280 x 720) still images and video, complete with audio and voice annotations.
Efficient Reporting Tools
Supports quick report generation with FLIR Thermal Studio and third-party reporting platforms.
What's Included
Included with Your Purchase:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80CIR-21 IR Thermal Camera Probe, 19mm x 1m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Specifications
-
Display Size: 7 inches
-
Display Resolution: 1024 x 600 pixels
-
Thermal Probe Dimensions: 19mm diameter x 1m length
-
Still Image Resolution: Up to 1280 x 720 pixels
-
Video Recording: HD with audio
-
Drop Resistance: Up to 2 meters
-
Display Protection: IP54 splashproof
-
Probe Protection: IP67 waterproof
-
Battery Life: Over 8 hours
-
Video Output: Micro HDMI
FAQ
Q: What environments is the VS80-IR21 suited for?
A: It's ideal for industrial, HVAC/R, building inspection, and automotive diagnostics, especially where access is limited or visibility is low.
Q: Can I record voice annotations with this videoscope?
A: Yes, the system allows voice annotations for video recordings and lets you add text notes to saved images.
Q: Is the display visible in bright outdoor conditions?
A: Yes, the included sun visor enhances screen visibility under direct sunlight.
Q: Can this videoscope output to external screens?
A: Absolutely. It supports live video output via HDMI to external monitors.
