The Teledyne FLIR VS80-KIT-3 High-Performance Rugged Videoscope Kit is designed for professionals who require exceptional visual inspection capabilities in challenging environments. It features the versatile V80 touchscreen display paired with a 4.9 mm x 1m Dual HD camera probe, offering high-definition imaging and the flexibility to access tight or difficult-to-reach spaces. The waterproof camera tip (IP67) and splashproof display (IP54) ensure durability and reliability during rigorous fieldwork.
Ideal for industrial equipment diagnostics, HVAC, automotive, and building inspections, this videoscope provides a 7-inch display with 1024 x 600 resolution and intuitive controls. The FLIR Tools Mobile app enhances workflow efficiency by enabling remote viewing, easy file transfer, and seamless sharing with colleagues or clients.

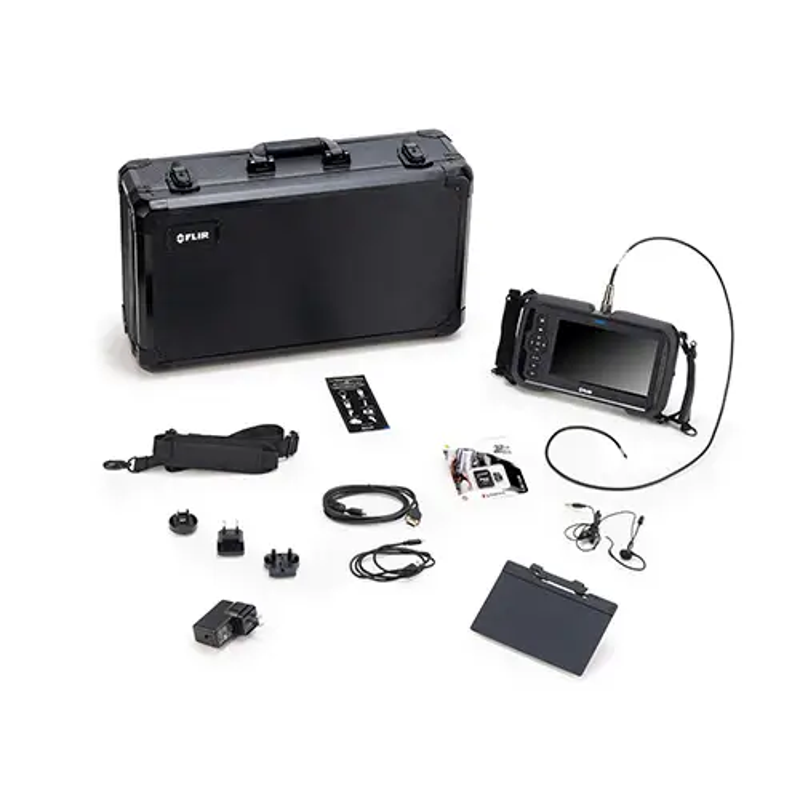

What's Included:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80C2-49-1RM Dual HD Camera Probe, 4.9mm x 1m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Features
Dual HD Camera Probe
Includes a 4.9 mm x 1m probe designed for high-definition visual access to compact and hard-to-reach areas.
Side-by-Side Viewing
Compare current inspections to past records with live and saved images displayed simultaneously on a large 7-inch screen.
Long Battery Life
Perform fieldwork for over 8 hours on a single charge without needing to recharge.
Wide Depth of Field
View detailed visuals from as close as 10mm to infinity with the high-performance visual probe.
Hands-Free Use
Includes kickstand, neck strap, and tripod mount to free your hands during inspections.
Rugged and Weather-Resistant Design
The VS80 display resists drops up to 2 meters and is rated IP54 for splash protection, while probe tips are waterproof (IP67).
Sunlight-Readable Display
Use the sun visor for clear visibility in outdoor or brightly lit conditions.
External Display Support
Connect to external monitors via HDMI output for group viewing or larger displays.
High-Resolution Imaging
Capture crisp 1280 x 720 HD images and videos with audio support.
Advanced Annotation Options
Add voice notes over videos and text annotations to saved images for comprehensive documentation.
Efficient Reporting
Create and share detailed reports using FLIR Thermal Studio or your preferred reporting software.
What's Included
Included with Your Purchase:
- 1 - V80 High-Performance Rugged Videoscope Touchscreen Display, 1024 x 600, 7 in.
- 1 - VS80C2-49-1RM Dual HD Camera Probe, 4.9mm x 1m
- 1 - Neck Strap
- 1 - Hand Straps
- 1 - Audio Headset
- 1 - Removable/Retractable Sun Visor
- 1 - Power Adapter with AC Plugs (for US, UK, EU, AUS)
- 1 - Heavy-Duty Shipping/Carrying Case
- 1 - 32 GB Micro SD Memory Card
- 1 - USB C to USB A Cable
- 1 - Micro HDMI to HDMI Video Cable
- 1 - User Manual
Specifications
-
Display Type: 7-inch touchscreen
-
Display Resolution: 1024 x 600
-
Camera Probe: 4.9 mm diameter, 1 meter length, Dual HD
-
Image/Video Resolution: 1280 x 720
-
Battery Runtime: Over 8 hours
-
Depth of Field: 10 mm to infinity
-
Display Protection: IP54 splashproof, 2-meter drop rated
-
Probe Protection: IP67 waterproof
-
Connectivity: Micro HDMI output, USB C to USB A cable
-
Storage: 32 GB Micro SD card
-
Audio: Audio headset, voice recording capability
-
Accessories Included: Neck strap, hand straps, sun visor, carrying case
FAQ
Q: What kind of inspections can this videoscope be used for?
A: It's suitable for industrial maintenance, HVAC, automotive, and building inspections.
Q: Can I view the videoscope output on a larger screen?
A: Yes, the device supports HDMI output for external monitors.
Q: How durable is the VS80 display?
A: The display is IP54 splashproof and can withstand drops up to 2 meters.
Q: Does it support file sharing and mobile access?
A: Yes, using the FLIR Tools Mobile app, you can access and share saved images and videos directly from a mobile device.
