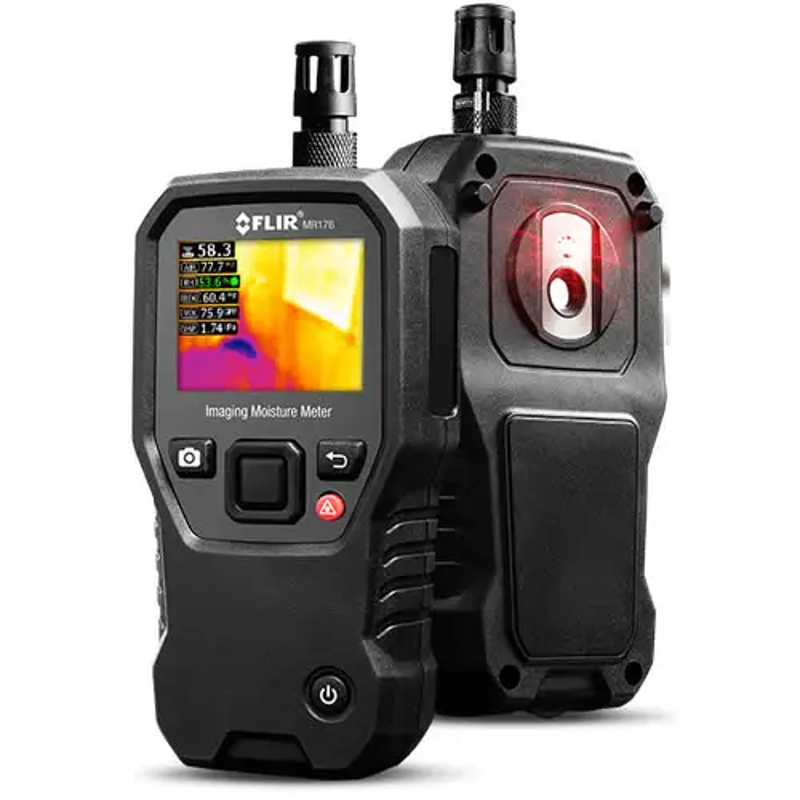

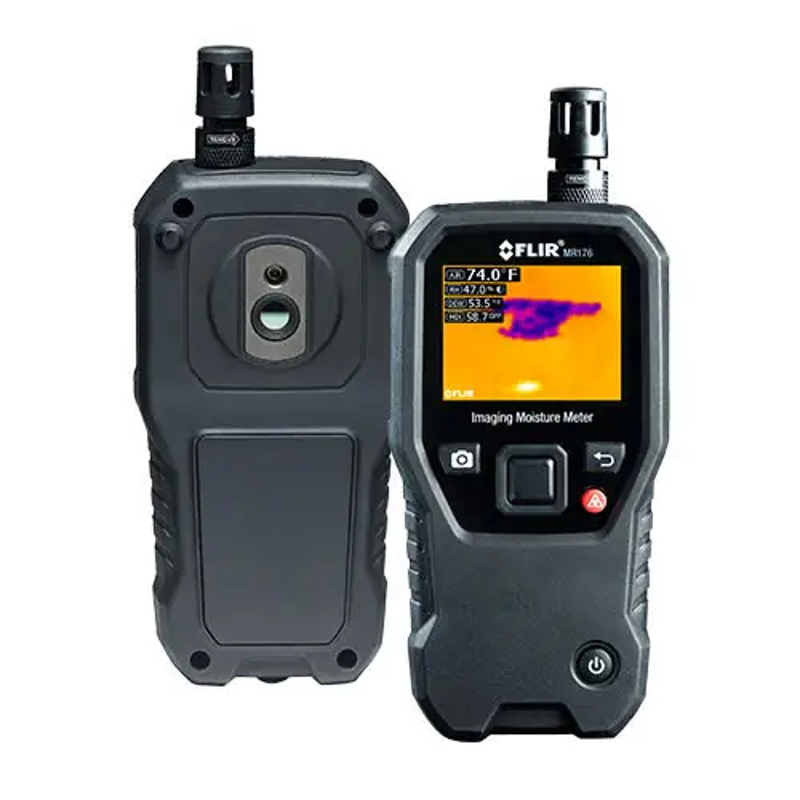

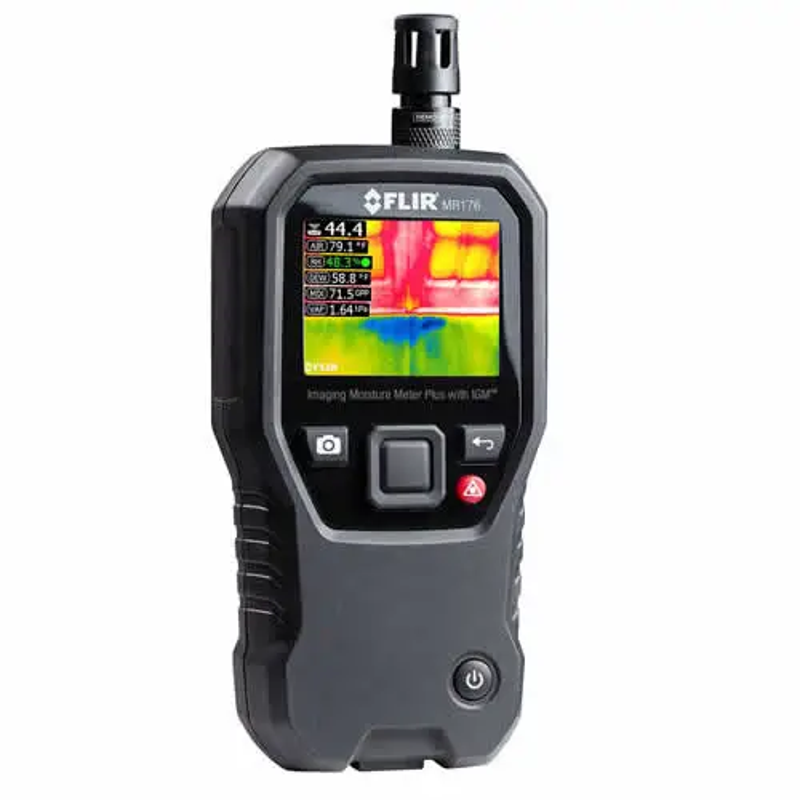

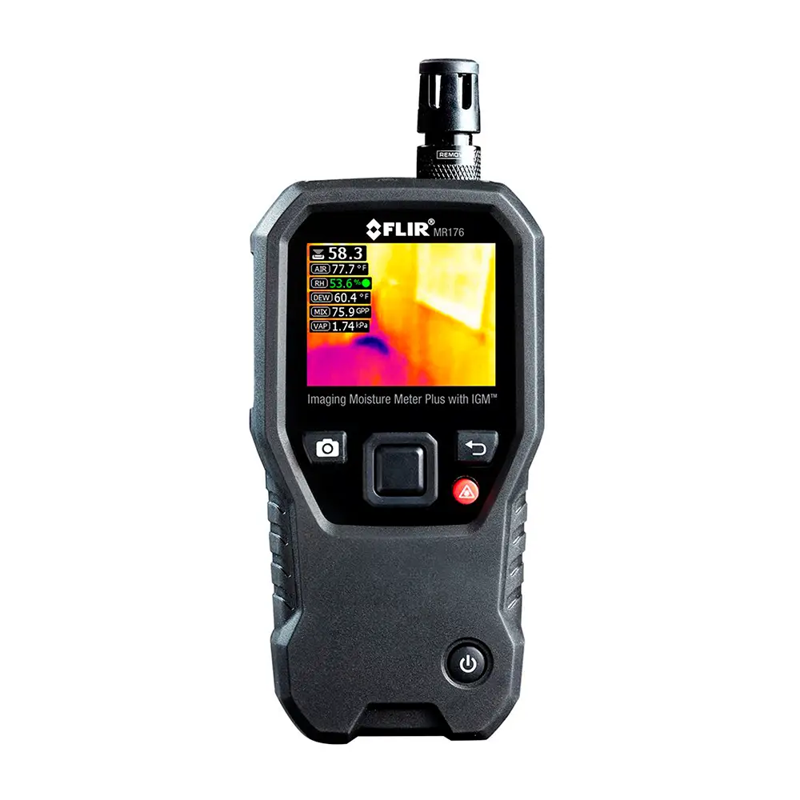

The Teledyne FLIR MR176 Imaging Moisture Meter Plus with IGM Technology and Lepton Image Detector is an all-in-one tool equipped with a built-in thermal camera that shows you exactly where to measure moisture. Featuring Infrared Guided Measurement (IGM) powered by a Lepton thermal imaging sensor, it helps you quickly scan and pinpoint moisture issues, guiding you to the right spot for confident measurements.
Use the integrated laser and crosshair for accurate surface targeting. Verify moisture levels non-invasively with the built-in pinless sensor or invasively with the external pin probe. A field-replaceable temperature and relative humidity sensor allows for easy maintenance, while automatic environmental calculations ensure accurate readings. The Progressive Environmental Stability Indicator helps eliminate response-time errors during site movement.
Customize your readings by integrating moisture, temperature, RH, dew point, vapor pressure, or mixing ratio into thermal images. Choose from multiple color palettes: Ice, Iron, Rainbow, or Gray. An intuitive menu system, durable design, and free Teledyne FLIR Tools PC software for reporting make the MR176 a versatile, efficient solution for moisture detection.
What's Included:
- 1 - Replaceable Temperature and Relative Humidity Sensor (MR01)
- 1 - Standard Pin Probe (MR02)
- 1 - International USB Charger
- 1 - USB Cable
- 1 - Quick Start Guide
Features
Built-in Thermal Imaging with IGM Technology
Allows you to visually identify moisture areas and target measurements precisely.
Non-Invasive Pinless Sensor
Quickly scans surfaces for moisture without damaging materials.
External Pin Probe Included
Provides the option for intrusive measurements when needed.
Replaceable Temperature and Humidity Sensor
Field-replaceable sensor ensures easy maintenance and continued accuracy.
Environmental Stability Indicator
Alerts when relative humidity readings stabilize to eliminate errors.
Customizable Readings Integration
Combine measurements like moisture, RH, dew point, and vapor pressure into thermal images.
Selectable Color Palettes
Choose from Iron, Rainbow, Ice, or Grayscale to enhance image clarity.
Intuitive Interface
Simple navigation and graphical interface make operation quick and efficient.
Free Reporting Software
Generate reports and manage files easily with free Teledyne FLIR Tools software.
Durable and Portable Design
Built to last with an over-molded design and backed by a 2-10 warranty.
What's Included
Included with Your Purchase:
- 1 - Replaceable Temperature and Relative Humidity Sensor (MR01)
- 1 - Standard Pin Probe (MR02)
- 1 - International USB Charger
- 1 - USB Cable
- 1 - Quick Start Guide
Specifications
-
Thermal Image Resolution: 80 x 60 pixels
-
Relative Humidity Range: 0% - 100%
-
Relative Humidity Accuracy: ±2.5% RH
-
Temperature Measurement: Field-replaceable sensor
-
Display: 4800-pixel color display
-
Sensor Type: Teledyne FLIR Lepton microbolometer Focal Plane Array (FPA) with integrated shutter
-
Moisture Detection Methods: Pinless sensor and external pin probe
-
Data Management: Image capture, viewing, deletion, and reporting via FLIR Tools software
-
Power Source: Internal rechargeable battery
-
Charger: USB based international charger
FAQ
Q: What technology helps visually locate moisture issues?
A: Infrared Guided Measurement (IGM) using the Lepton thermal imaging sensor.
Q: Can the MR176 perform both non-invasive and invasive moisture testing?
A: Yes, it features an integrated pinless sensor and an external pin probe for versatility.
Q: How is the humidity sensor maintained?
A: The temperature and relative humidity sensor is field-replaceable, allowing easy maintenance.
Q: Does the MR176 include reporting software?
A: Yes, it comes with free Teledyne FLIR Tools PC software for file management and report generation.
Q: Are there multiple color palette options for thermal images?
A: Yes, you can select from Iron, Rainbow, Ice, and Grayscale palettes.
