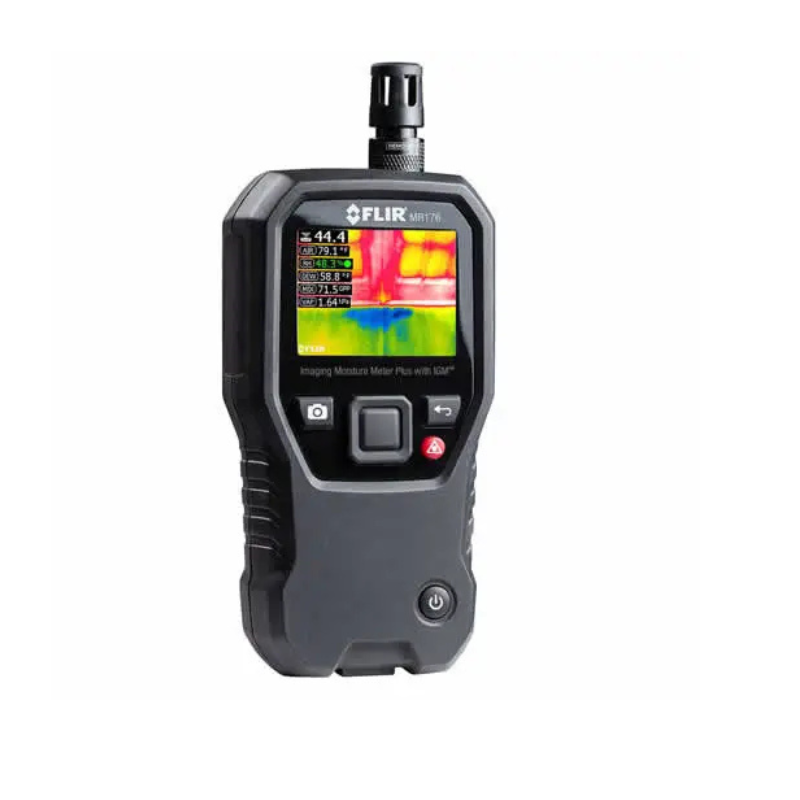

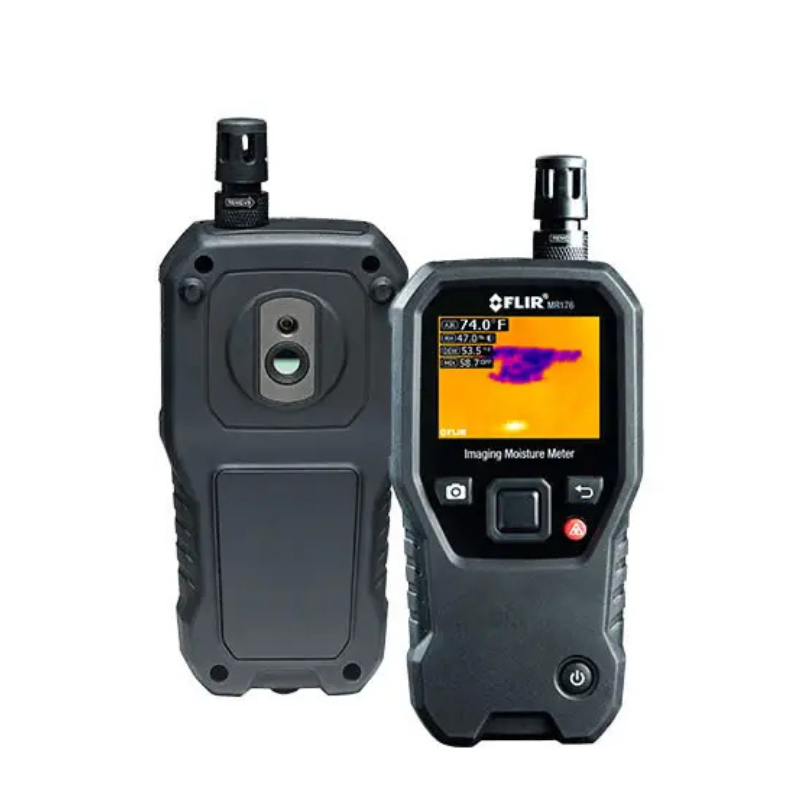

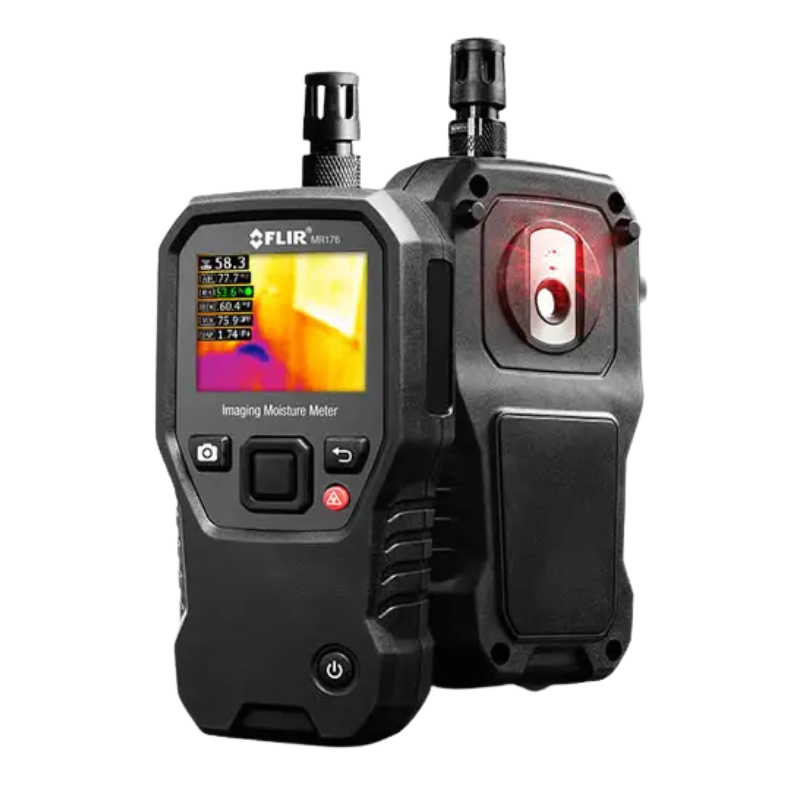

The Teledyne FLIR MR176-KIT5 Professional Imaging Moisture Kit features the MR176 Imaging Moisture Meter Plus, combining advanced Infrared Guided Measurement (IGM) technology and thermal imaging to target and verify moisture issues quickly and effectively.
Equipped with a built-in Lepton thermal sensor, the MR176 visually guides you to potential moisture areas, allowing you to confidently scan and take accurate measurements. The integrated non-invasive pinless sensor or external pin probe (included) ensures versatility for various applications, while the replaceable temperature and humidity sensor makes maintenance easy and cost-effective.
Customize your readings by integrating moisture, temperature, relative humidity, dew point, vapor pressure, and mixing ratio into thermal images. Choose from multiple color palettes for optimal visualization. The intuitive menu system, free FLIR Tools PC software, and durable design ensure the MR176 is ready for demanding environments.

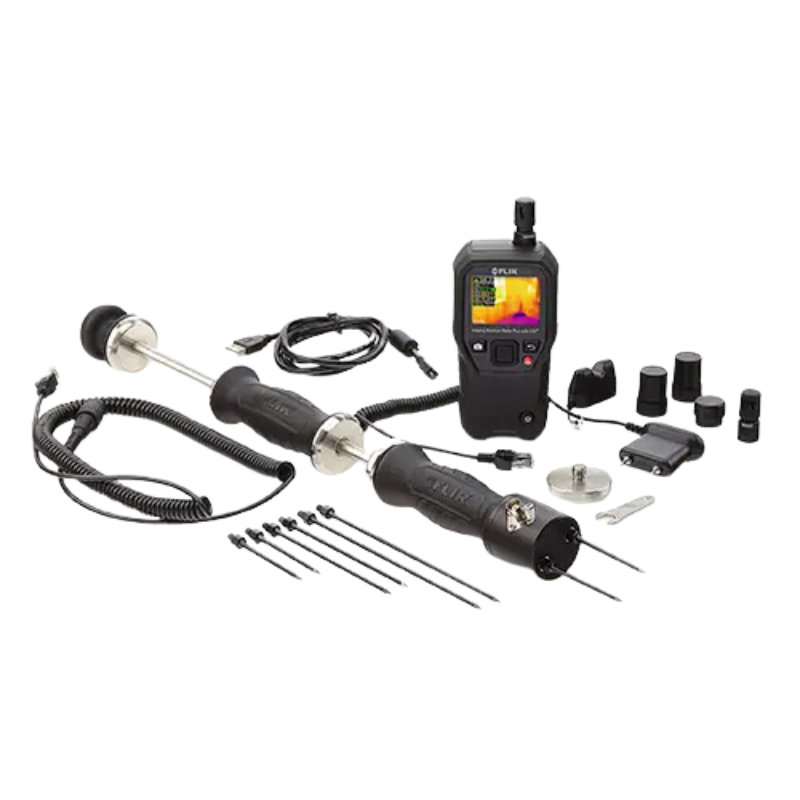

What's Included:
- 1 - Imaging Moisture Meter Plus with Infrared Guided Measurement (IGM) Technology (MR176)
- 1 - Hammer and Wall Cavity Probe Bundle (MR08)
- 1 - Replaceable Temperature and Relative Humidity Sensor (MR01)
- 1 - Standard Pin Probe (MR02)
- 1 - International USB Charger
- 1 - USB Cable
- 1 - Quick Start Guide
Features
Thermal Imaging with IGM Technology
Built-in Lepton thermal sensor visually guides you to moisture issues quickly and accurately.
Non-Invasive and Pin Probe Measurements
Scan surfaces with the pinless sensor or use the external pin probe for detailed resistive measurements.
Replaceable Sensors
Field-replaceable temperature and relative humidity sensor helps maintain consistent performance.
Customizable Thermal Images
Overlay moisture, temperature, dew point, and more on thermal images for detailed analysis.
Color Palettes
Select from Iron, Rainbow, Ice, or Greyscale to optimize your image viewing experience.
Precise Environmental Readings
Ambient temperature, relative humidity, dew point, mixing ratio, and vapor pressure measured and displayed.
Progressive Stability Indicator
Reduces errors by informing when readings have stabilized across different measurement locations.
Durable and Easy to Use
Over-molded housing, intuitive graphical interface, and local language tool tips enhance usability and durability.
Laser Pointer and Crosshairs
Target anomalies accurately during scanning with laser-guided assistance.
Comprehensive File Management
Capture, view, delete, and generate reports easily using free FLIR Tools software.
What's Included
Included with Your Purchase:
- 1 - Imaging Moisture Meter Plus with Infrared Guided Measurement (IGM) Technology (MR176)
- 1 - Hammer and Wall Cavity Probe Bundle (MR08)
- 1 - Replaceable Temperature and Relative Humidity Sensor (MR01)
- 1 - Standard Pin Probe (MR02)
- 1 - International USB Charger
- 1 - USB Cable
- 1 - Quick Start Guide
Specifications
-
Thermal Image Resolution: 80 x 60 pixels
-
Display: 4800-pixel color display
-
Measurement Modes: Pin, Pinless, Thermal Image, Psychrometrics
-
Relative Humidity Range: 0% to 100%
-
Relative Humidity Accuracy: ±2.5% RH
-
Color Palettes: Iron, Rainbow, Ice, Greyscale
-
Integrated Laser Pointer: Yes
-
Environmental Stability Indicator: Yes
-
Software Compatibility: Free Teledyne FLIR Tools PC software
-
Battery: Internal rechargeable with USB-based international charger
FAQ
Q: Can I replace the temperature and humidity sensor myself?
A: Yes, the MR176 uses a field-replaceable temperature and RH sensor for easy maintenance.
Q: What measurements can be overlaid on the thermal images?
A: You can overlay moisture, temperature, relative humidity, dew point, vapor pressure, and mixing ratio.
Q: Is the device suitable for both intrusive and non-intrusive moisture measurements?
A: Yes, it offers both pin-based (intrusive) and pinless (non-intrusive) moisture measurements.
Q: Does the MR176 include software for report generation?
A: Yes, it includes free access to Teledyne FLIR Tools PC software for image and report management.
Q: What color palettes are available for thermal imaging?
A: Iron, Rainbow, Ice, and Greyscale are available for better visual customization.
