FLIR Si2-LD Acoustic Imaging Camera for Industrial Leak and Mechanical Fault Detection

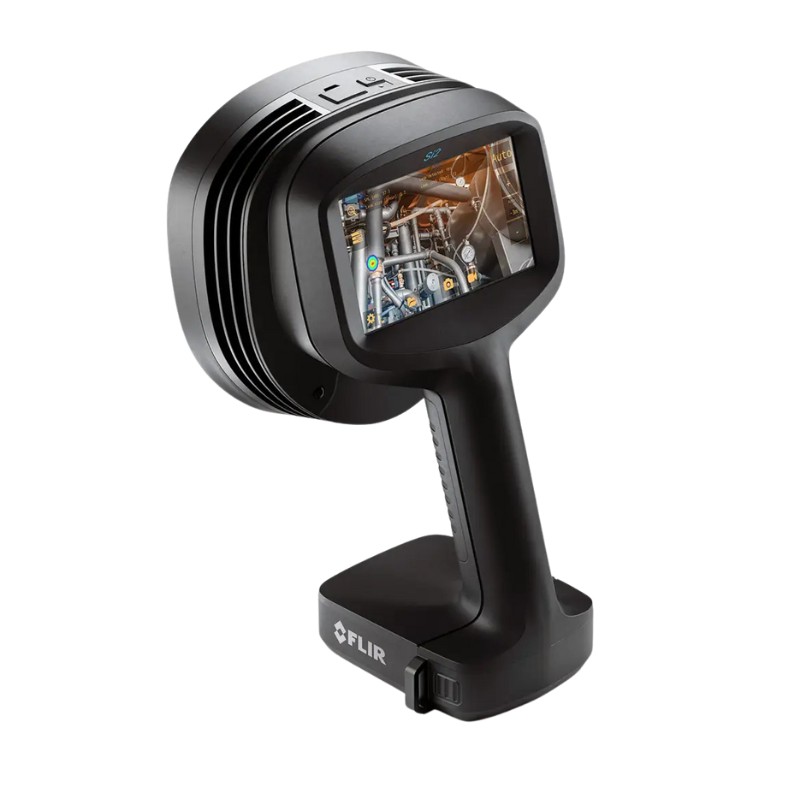

The Teledyne FLIR Si2-LD Industrial Acoustic Imaging Camera is engineered for precise detection, localization, and measurement of compressed air or gas leaks, as well as mechanical fault detection such as faulty bearings, from distances up to 200 meters. It features one-handed operation with automatic tuning, 8x digital zoom, and a 12 MP digital camera for simplified use in demanding environments.

Integrated tools for measurement and cost analysis support a wide range of industrial gases including ammonia, hydrogen, CO2, methane, helium, and argon. Mechanical fault detection is streamlined via automatic mode selection and optimized filter settings. Fleet management capabilities enhance operational oversight and maintenance scheduling across extensive installations.

This camera excels in applications such as manufacturing, production, and assembly, particularly where compressed air is critical. Early detection functionality helps ensure safety and regulatory compliance while reducing the risk of costly downtime. The rapid and reliable detection process improves maintenance efficiency and client satisfaction.

What's Included:

• 1 - Industrial Acoustic Imaging Camera (Si2-LD)
• 2 - Batteries
• 1 - Battery Charger
• 4 - Power Cables
• 1 - Neck Strap
• 1 - Transport Case
• 1 - FLIR Si-Series Plugin for FLIR Thermal Studio License Card, Perpetual License
• 1 - User Manual
• 1 - USB Memory Stick

Features

Advanced Leak and Fault Detection
Identifies and quantifies compressed air and gas leaks, plus mechanical faults like bearing issues from up to 200 meters away.

Broad Gas Compatibility
Supports analysis for industrial gases including ammonia, hydrogen, CO2, methane, helium, and argon for wide-ranging utility.

Optimized for One-Handed Use
Features ergonomic controls, automatic tuning, 8x zoom, and a high-resolution 12 MP digital camera.

Mechanical Fault Mode
Automatically selects and optimizes filters to simplify identification of critical mechanical problems.

Fleet Management Tools
Integrated tools support effective deployment and maintenance tracking across multiple units or sites.

Real-Time Cost Analysis
Built-in functionality estimates leak size and associated annual cost to support decision-making.

What's Included

Included with Your Purchase:

• 1 - Industrial Acoustic Imaging Camera (Si2-LD)
• 2 - Batteries
• 1 - Battery Charger
• 4 - Power Cables
• 1 - Neck Strap
• 1 - Transport Case
• 1 - FLIR Si-Series Plugin for FLIR Thermal Studio License Card, Perpetual License
• 1 - User Manual
• 1 - USB Memory Stick

Specifications

• Detection Threshold: -7 dB SPL (20 kHz), 4 dB SPL (35 kHz), 10 dB SPL (50 kHz), 36 dB SPL (80 kHz), 51 dB SPL (100 kHz)
• Bandwidth: 2 kHz to 130 kHz
• Directional Resolution: 1° to 0.125°
• Operating Distance: 0.3m to 200m
• Leak Rate Detection Threshold: 0.0032 l/min from 2.5m, 0.0044 l/min from 6m
• Supported Gases: Compressed air, hydrogen, CO2, methane, natural gas, helium, argon, ammonia
• Other Acoustic Analysis Modes: Mechanical fault detection
• Digital Camera: 12 MP color
• Camera Field of View: 75° diagonal
• Video Frame Rate: 60 fps (Camera), 30 fps (Acoustic Image), 70 fps (Screen)
• Zoom: 8x digital zoom
• Video Image Resolution: 1280 x 720 px

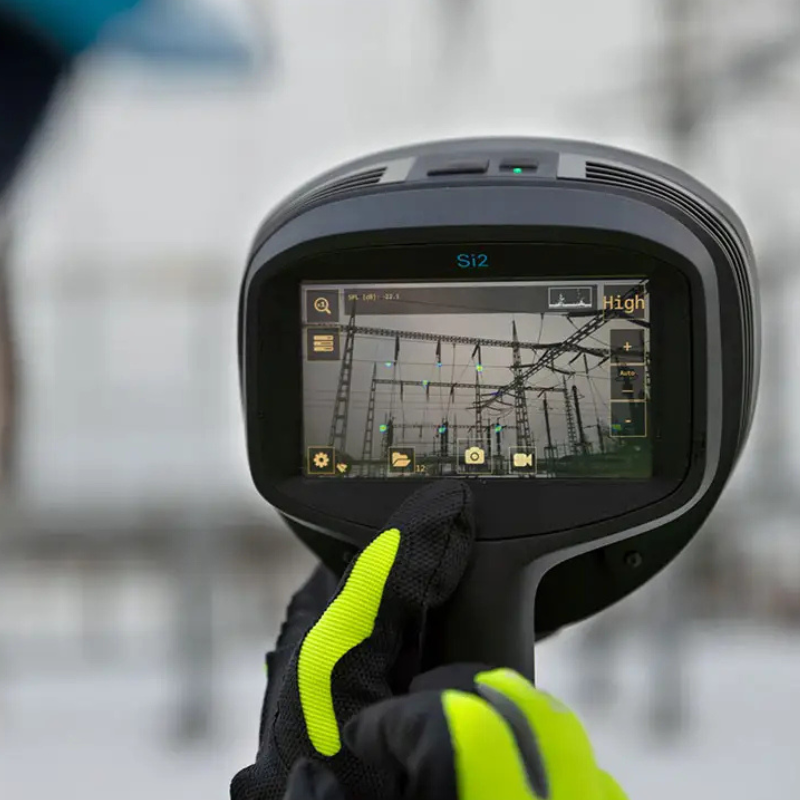

• Display: 5 in., 1280 x 720 px, resistive touch screen, TFT LCD
• Integrated Flashlight: LEDs with off, normal, and bright modes
• Data Transfer: Wi-Fi 2.4 GHz, 5 GHz, USB memory stick
• Still Image Format: .nlz, .jpg
• Video Recording Format: .nlz, up to 5 minutes
• Internal Storage: 128 GB (SD Card)
• External Storage: 8 GB (USB), Unlimited Cloud storage
• Camera Power Input: 12V DC nominal, 17V DC max
• Battery: Li-Ion rechargeable, 14.4V DC, 3.45 Ah
• Operating Temperature Range: -10°C to 50°C
• Storage Temperature Range: -20°C to 50°C max, -20°C to 25°C recommended
• Relative Humidity: 0 to 90% recommended
• Protection Class: IP54
• Safety: IEC 62368-1

FAQ

Q: How far can the Si2-LD detect leaks and mechanical faults?
A: It can detect from as close as 0.3 meters up to 200 meters away.

Q: What gases can this camera analyze?
A: It supports compressed air, ammonia, hydrogen, helium, argon, methane, natural gas, and CO2.

Q: Does it include built-in cost analysis?
A: Yes, it includes tools for estimating leak size and associated cost impact.

Q: Is this camera easy to use in the field?
A: Yes, it features one-handed operation, automatic tuning, and intuitive controls.

Resources

Documents:

• Teledyne FLIR Si2-LD Datasheet
