FLIR Si2-PD Acoustic Imaging Camera for Industrial Partial Discharge Detection

The Teledyne FLIR Si2-PD Industrial Acoustic Imaging Camera is designed for detecting, locating, classifying, and assessing partial discharge (PD) faults from up to 200 meters away. The Si2-PD can identify PD 30 times smaller than standard imagers, offering a unique advantage for precision in fault detection. It provides both partial discharge issues and classification types onboard, helping with effective decision-making through automatic tuning and up to 8x zoom. With its 12 MP digital camera and an IP54 rating, this unit allows one-handed operation for ease of use in the field. Additionally, it comes with fleet management functionality for enterprise scaling, enabling managers to monitor the proper use and maintenance of tools.

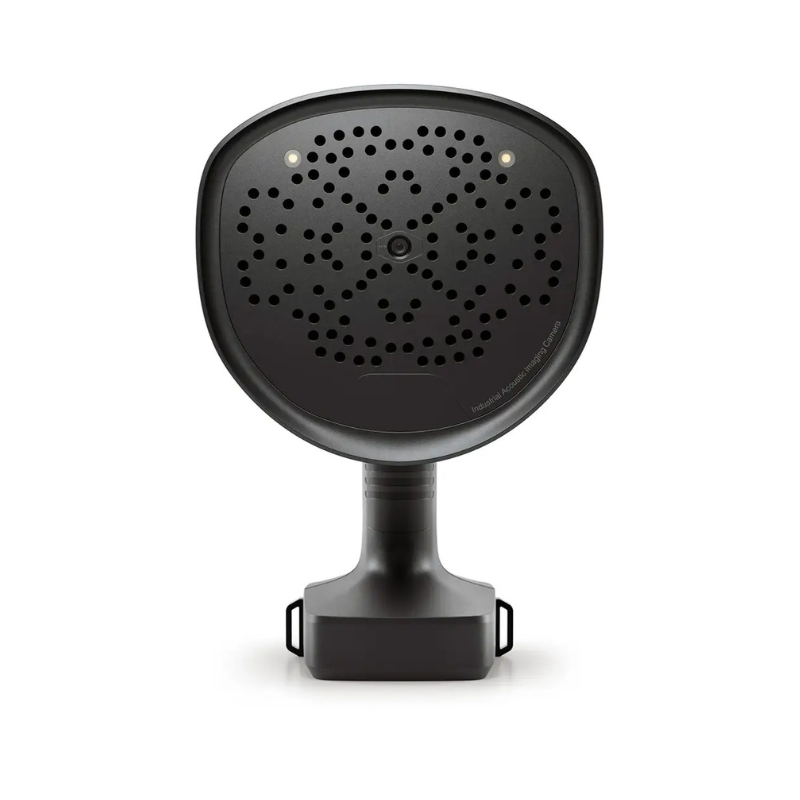

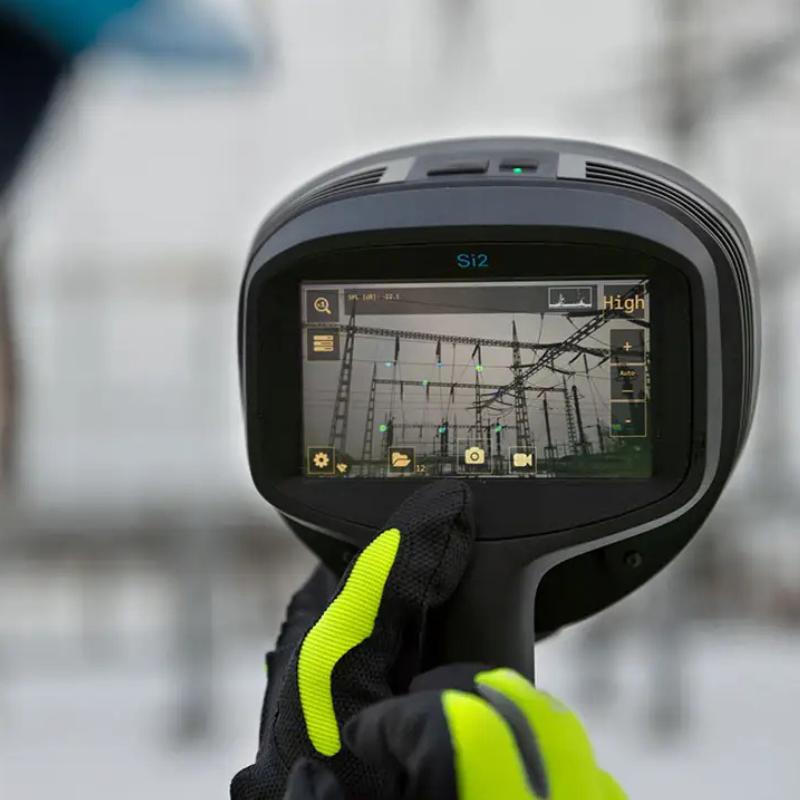

The Si2-PD is perfect for monitoring transmission or distribution conductors and components at long distances, helping to reduce the need for emergency repairs. It can also be used to inspect substation transformers, detecting PD issues early before they cause dangerous or costly explosions. Furthermore, it helps identify PD issues in high-voltage equipment to minimize public complaints regarding radio interference and audible noise.

What's Included:

• Industrial Acoustic Imaging Camera (Si2-PD)
• 2 - Batteries
• 1 - Battery Charger
• 4 - Power Cables
• 1 - Neck Strap
• 1 - Transport Case
• 1 - FLIR Si-Series Plugin for FLIR Thermal Studio License Card, Perpetual License
• 1 - User Manual
• 1 - USB Memory Stick

Features

Long Detection Range
Detects, locates, and classifies PD faults from up to 200 meters away.

High Sensitivity
Identifies PD 30 times smaller than other standard imagers.

AI-based Severity Assessment
Automatic severity assessment and recommended actions onboard the camera.

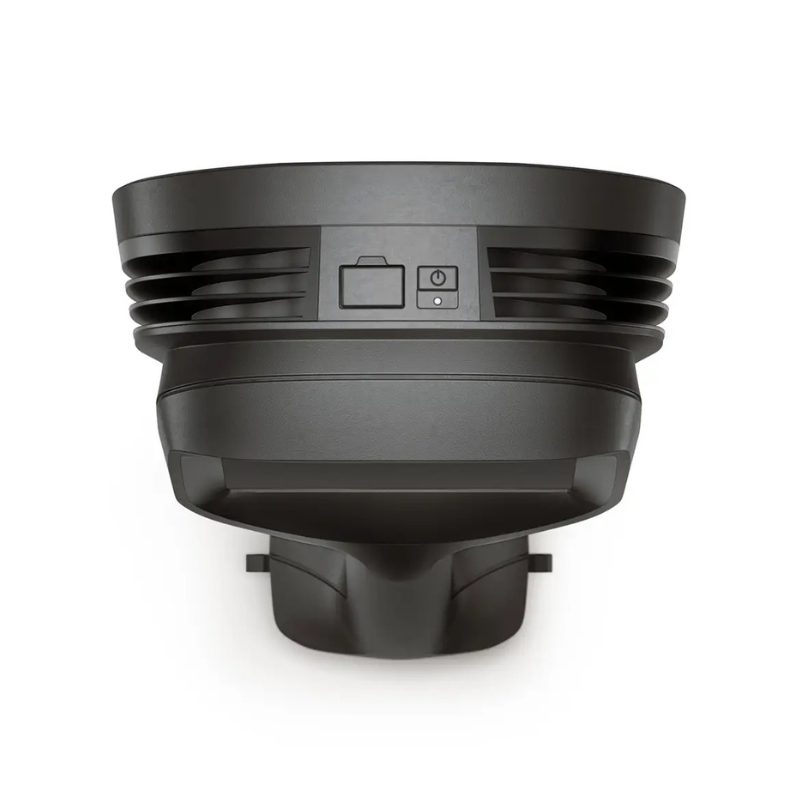

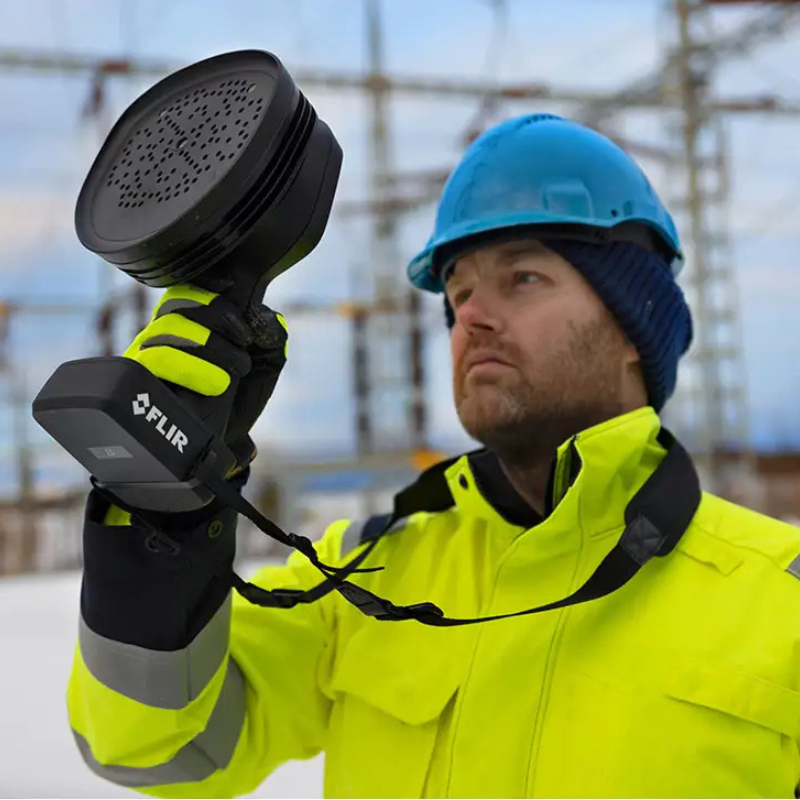

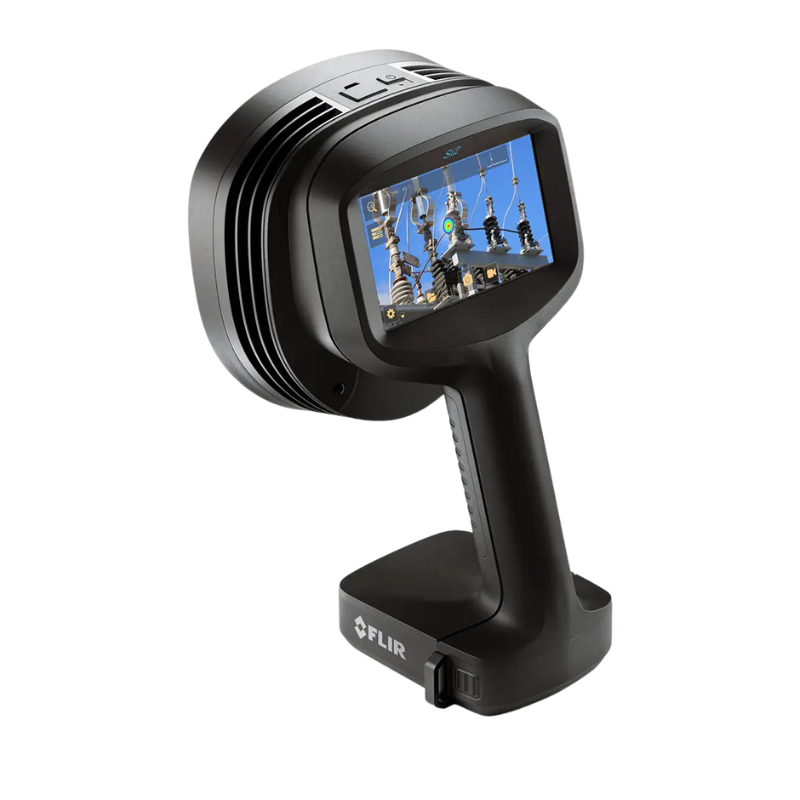

One-handed Operation
Simplifies use with automatic tuning, zoom capabilities, and a 12 MP camera.

Enterprise Scaling
Includes fleet management functionality for tracking tool usage and maintenance.

IP54 Rating
Designed for reliable performance in harsh environments.

Video and Imaging Capabilities
8x zoom, 1280 x 720 video resolution, and 60 fps camera frame rate for clear imaging.

What's Included

Included with Your Purchase:

• 1 - Industrial Acoustic Imaging Camera (Si2-PD)
• 2 - Batteries
• 1 - Battery Charger
• 4 - Power Cables
• 1 - Neck Strap
• 1 - Transport Case
• 1 - FLIR Si-Series Plugin for FLIR Thermal Studio License Card, Perpetual License
• 1 - User Manual
• 1 - USB Memory Stick

Specifications

• Detection Threshold: -7 dB SPL (20 kHz), 4 dB SPL (35 kHz), 10 dB SPL (50 kHz), 36 dB SPL (80 kHz), 51 dB SPL (100 kHz)
• Bandwidth: 2 kHz to 130 kHz
• Directional Resolution: 1° to 0.125°
• Operating Distance: 0.3m (1.0 ft.) to 200m (656 ft.)
• Severity Assessment: Automatic AI-based severity assessment
• Digital Camera: 12 MP color
• Camera Field of View: 75° diagonal
• Video Frame Rate: 60 fps (Camera), 30 fps (Acoustic Image), 70 fps (Screen)
• Zoom: 8x digital zoom
• Video Image Resolution: 1280 x 720 px
• Display: 5 in., 1280 x 720 px, resistive touch screen, TFT LCD
• Data Transfer: Wi-Fi 2.4 GHz, 5 GHz IEEE 802.11.b/g/n/ac, USB memory stick
• Internal Storage: 128 GB (SD Card)
• External Storage: 8 GB (USB), Unlimited Cloud Storage
• Battery: Li-Ion rechargeable battery pack (14.4V DC, 3.45 Ah, 49.68 Wh)
• Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
• Protection Class: IP54

FAQ

Q: How far can the Teledyne FLIR Si2-PD detect PD faults?
A: It can detect PD faults from up to 200 meters (656 feet) away.

Q: How sensitive is the Si2-PD in detecting partial discharge issues?
A: The Si2-PD can identify PD 30 times smaller than standard imagers.

Q: Can I use the Si2-PD in harsh environmental conditions?
A: Yes, it has an IP54 rating, ensuring reliable operation in tough conditions.

Q: Does it offer any AI-based features?
A: Yes, it features automatic AI-based severity assessment with recommended actions onboard the camera.

Documentation

Documents:

• Teledyne FLIR Si2-PD Datasheet
